Box Type PLC Splitter

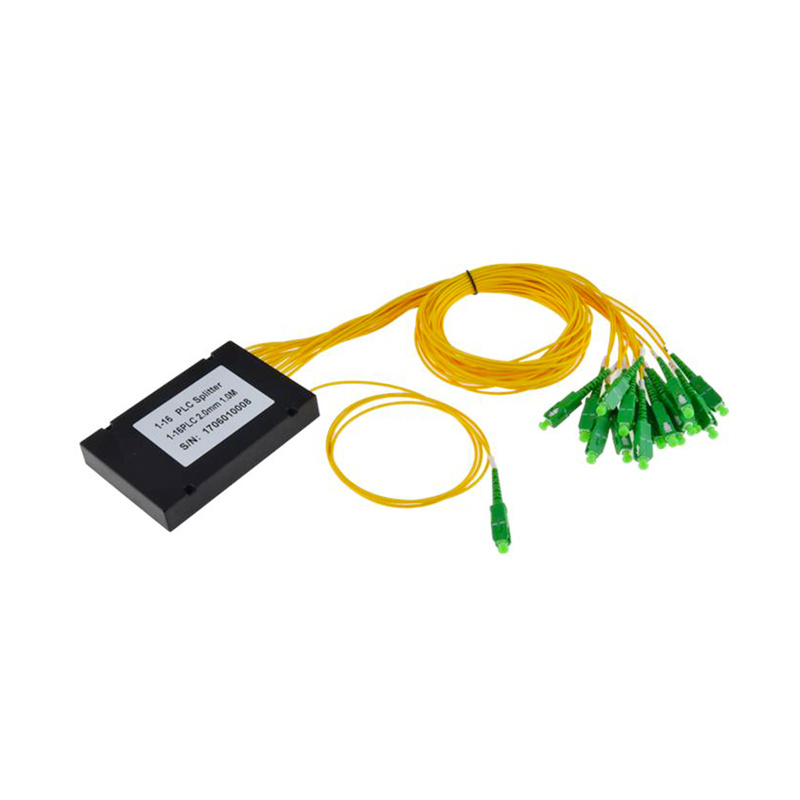

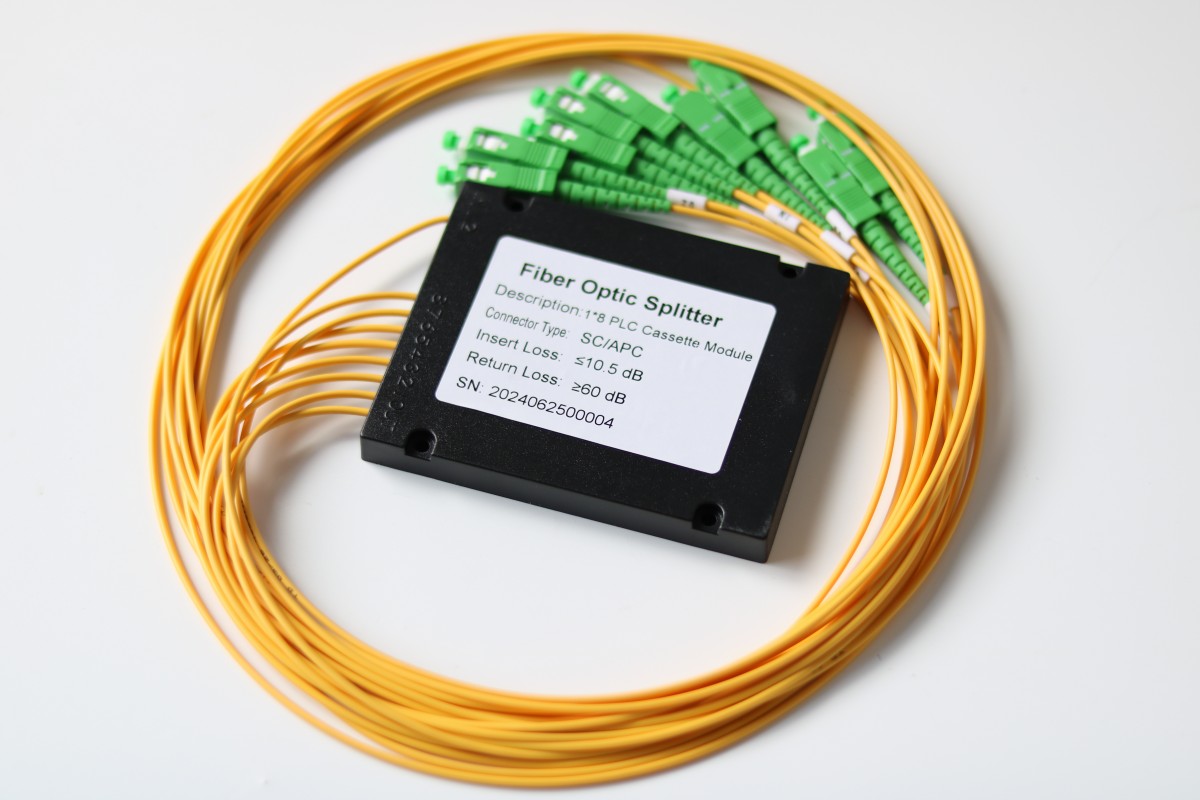

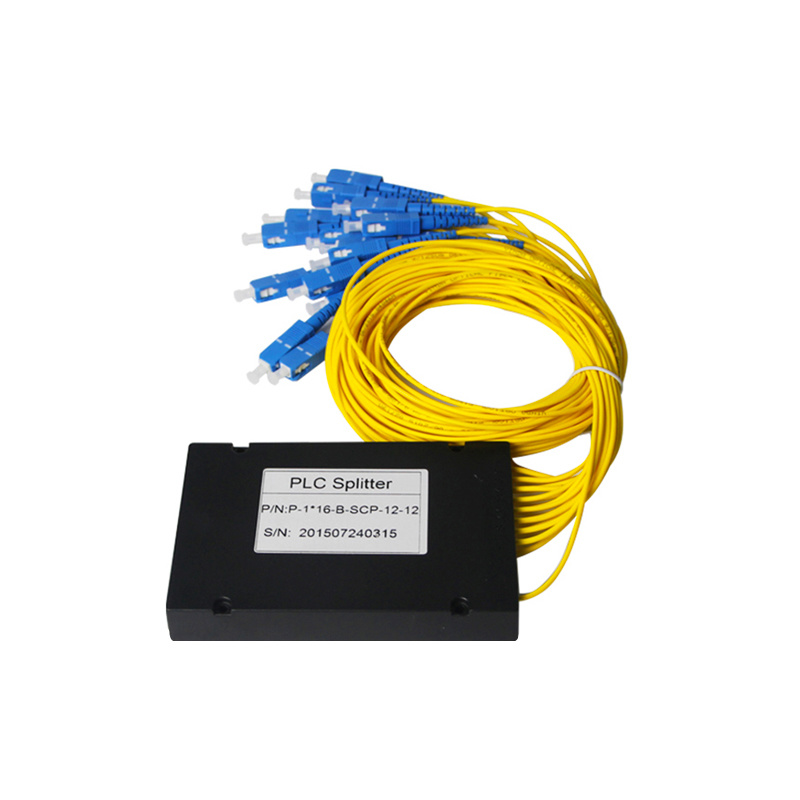

PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. It provides a low cost power distribution solution with small form factor and high reliability, wide operating wavelength range and good channel-to channel uniformity, and is widely used in PON net.. HYOE provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

Availability:

Quantity:



Inquire Add to Basket

1xN or 2xN optional;

With or without connector optional;

Connector SC/UPC, SC/APC, LC/UPC, LC/APC optional;

Low PDL

Compact Design

High Return Loss

Low Insertion loss

Uniform Power Splitting

Wide Operating Wavelength

Wide Operating Temperature

Excellent Environmental & Mechanical Stability

Fiber Optic Cable Optical Patchcord Optical Distribution Box Date Center Solution Passive Components

Related Products

Modular Type PLC Splitter

Micro Type PLC Splitter

FBT Splitter

Technical Test Data
Split Ratio	1x2	1x4	1x8	1x16	1x32	2x2	2x4	2x8	2x16	2x32
Wavelength	1260~1650 (nm)
Insertion Loss(dB)	≤4.6	≤7.5	≤11.0	≤14.0	≤17.0	≤4.5	≤8.0	≤11.7	≤14.7	≤17.9
Uniformity(dB)	≤0.6	≤0.6	≤0.8	≤1.2	≤1.5	≤0.8	≤1.0	≤1.0	≤1.5	≤2.0
PDL(dB)	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss (dB) （P/S）	≥55/50
Directivity(dB)	≥55
Operating temperature(℃)	-40~+85
Pigtail Length (m)	1.0(±0.1) or Customer Specified
Fiber Type	ITU-T G657 SM Optical Fiber or Customer Specified
LWH(mm)	1008010、1208018、14011418

Technical Test Data
Split Ratio	1x2	1x4	1x8	1x16	1x32	2x2	2x4	2x8	2x16	2x32
Wavelength	1260~1650 (nm)
Insertion Loss(dB)	≤4.6	≤7.5	≤11.0	≤14.0	≤17.0	≤4.5	≤8.0	≤11.7	≤14.7	≤17.9
Uniformity(dB)	≤0.6	≤0.6	≤0.8	≤1.2	≤1.5	≤0.8	≤1.0	≤1.0	≤1.5	≤2.0
PDL(dB)	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss (dB) （P/S）	≥55/50
Directivity(dB)	≥55
Operating temperature(℃)	-40~+85
Pigtail Length (m)	1.0(±0.1) or Customer Specified
Fiber Type	ITU-T G657 SM Optical Fiber or Customer Specified
LWH(mm)	1008010、1208018、14011418
