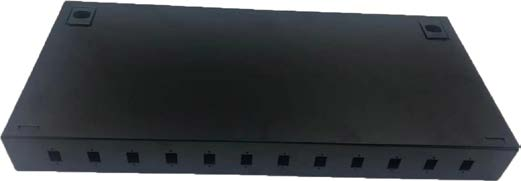

19 Inch Rack Mount Fiber Optic Patch Panel ODF

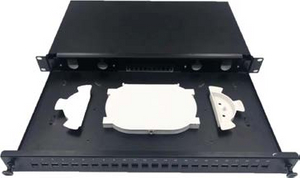

The Rack Mount Fiber Optic Patch Panel are 19" inch size and modular design. clamshell-type Rack-Mount Panel provides a simple, high-density, low profile solution for easy access and management of fiber optic terminations. It comes with a number of cable management devices for organizing cables entering and exiting the panel. This Patch Panel are equipped with slack-fiber storage spools, and Splicing tray. Each enclosure features front and rear removable metal covers for quick and easy installation and maintenance.
Availability:
Quantity:

1) Standard size, light weight and reasonable structure

2) Splice tray inside changeable

3) Can be used in 19'', 23'' standard distribution frame

4) Suitable for ribbon and single fiber

5) Various panel plate to fit different adapter interface

6) Front mark on the plate is easy for identification and operation

7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters

8) Easy for management and operation

Configuration

Material

Size

Thickness of metal

Color

Connector

Install Type

Dimension


SPCC


19inch


1.0mm( 1.2 after

coating )


Black/Grey

(Gray has

minimum

quantitativ

e )


FC,SC,ST,LC


clamshell -type

1U/2U/3

U/4U/5U

( 3U-5U

Have a

minimum

quantity)

Applications

1 )Telecommunications subscriber loop

2 )Fiber to the home (FTTH)

3)  LAN/WAN

4 )Data processing centers/Cable television (CATV)

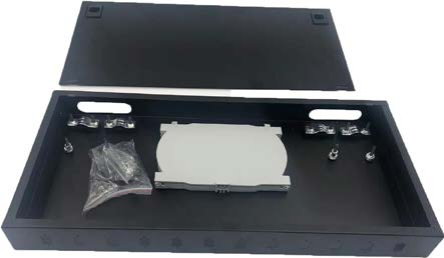

Standard Accessories

1 )Screw and nut 4pcs

2 )Metal ear 2pcs

3 )Splice Tray

4 )Sheet metal 4pcs

5 )Small metal columns 2pcs
