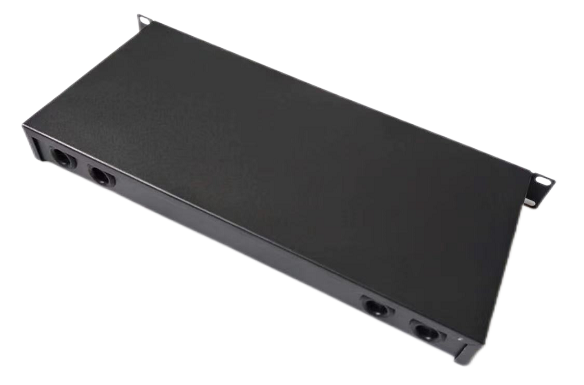

Fiber Optic Patch Panel ODF

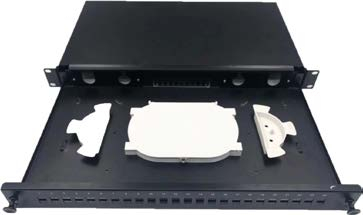

The Rack Mount Fiber Optic Patch Panel are 19" inch size and modular design. Slide-Out Rack-Mount Panel provides a simple, high-density, low profile solution for easy access and management of fiber optic terminations It comes with a number of cable management devices for organizing cables entering and exiting the panel. This Patch Panel are equipped with slack-fiber storage spools, and Splicing tray. Each enclosure features front and rear removable metal covers for quick and easy installation and maintenance. The forward and backward sliding tray allows installers to access the fiber adapter panels as moves, adds and changes are required.
Availability:
Quantity:

1) Standard size, light weight and reasonable structure

2) Splice tray inside changeable

3) Can be used in 19'', 23'' standard distribution frame

4) Suitable for ribbon and single fiber

5) Various panel plate to fit different adapter interface

6) Front mark on the plate is easy for identification and operation

7) 12C,24C, 36C, 48C, 72C optional, with or without fiber optic pigtails  and adapters

8) Easy for management and operation

9) FC/SC/ST/LC Others Adapters for Option, available.

Configuration

Material

Size

Thickness of metal

Color

Connector

Install Type

Dimension


SPCC


19inch


1.0mm( 1.2 after

coating )


Black/Grey (Gray has minimum  quantity)


FC,SC,ST,LC


Pull type

without

guide

1U/2U/3U

/4U/5U

( 3U-5U

Have a

minimum

quantity)

Applications

1 )Telecommunications subscriber loop

2 )Fiber to the home (FTTH)

3 )Optical access network (OAN)

4 )Data processing centers/Cable television (CATV)

5 ) Local area network (LAN)

Standard Accessories

1 )Screw and nut

2 )Richard line ring 2pcs

3 )Splice Tray
