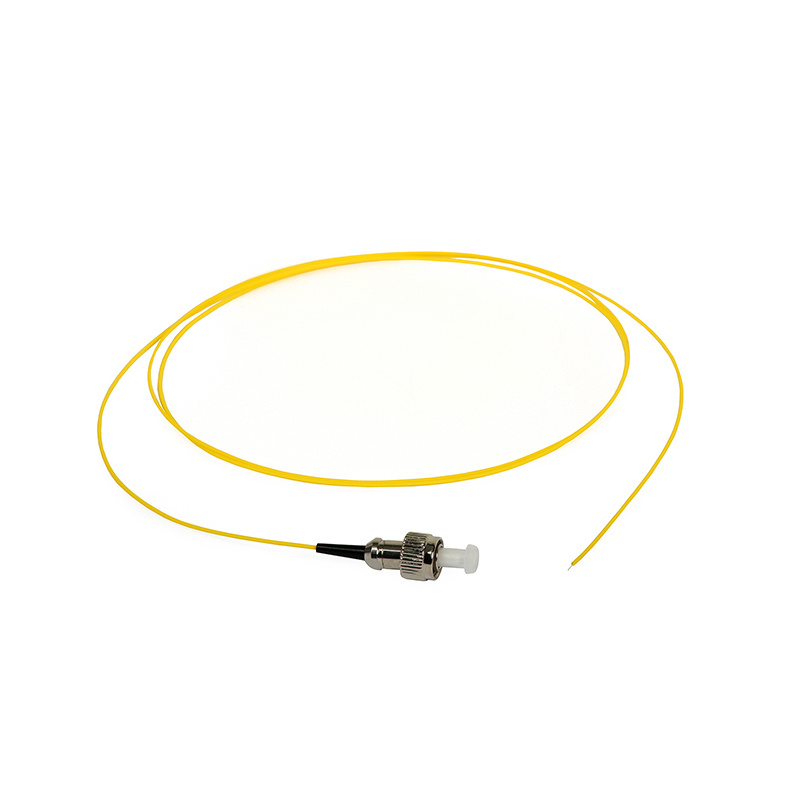

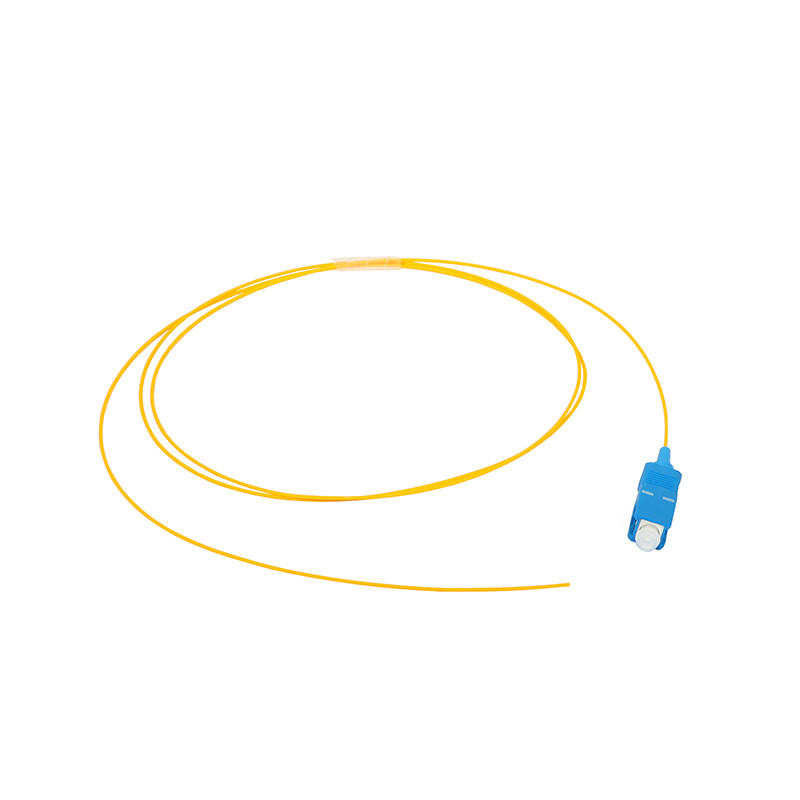

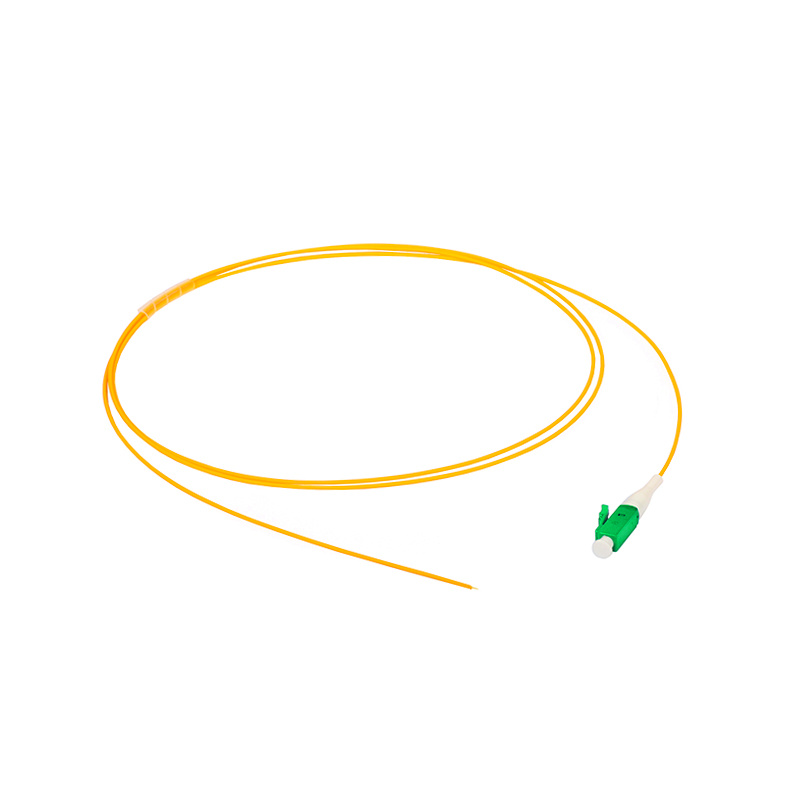

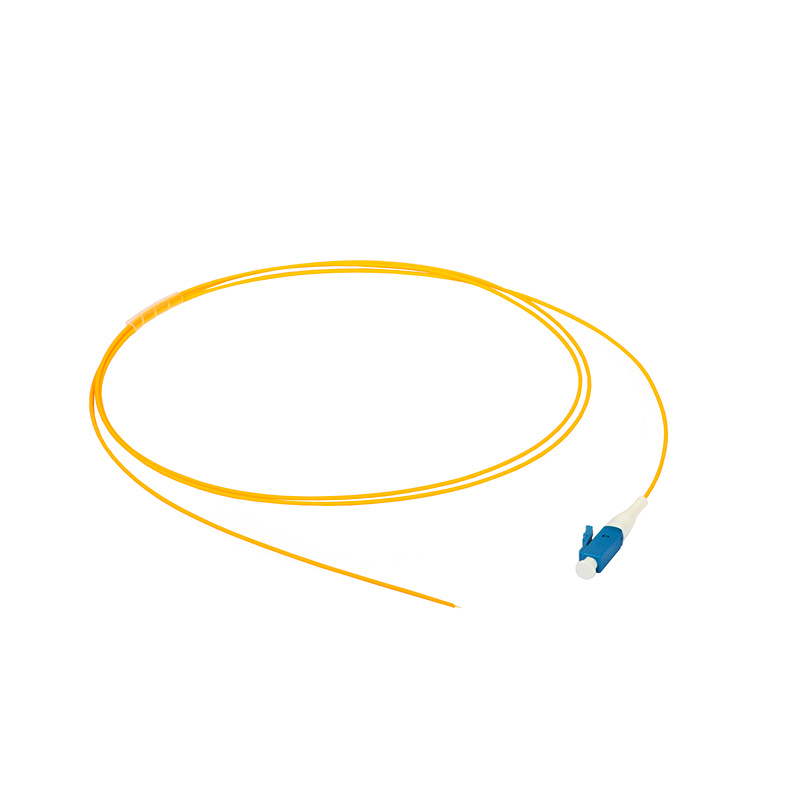

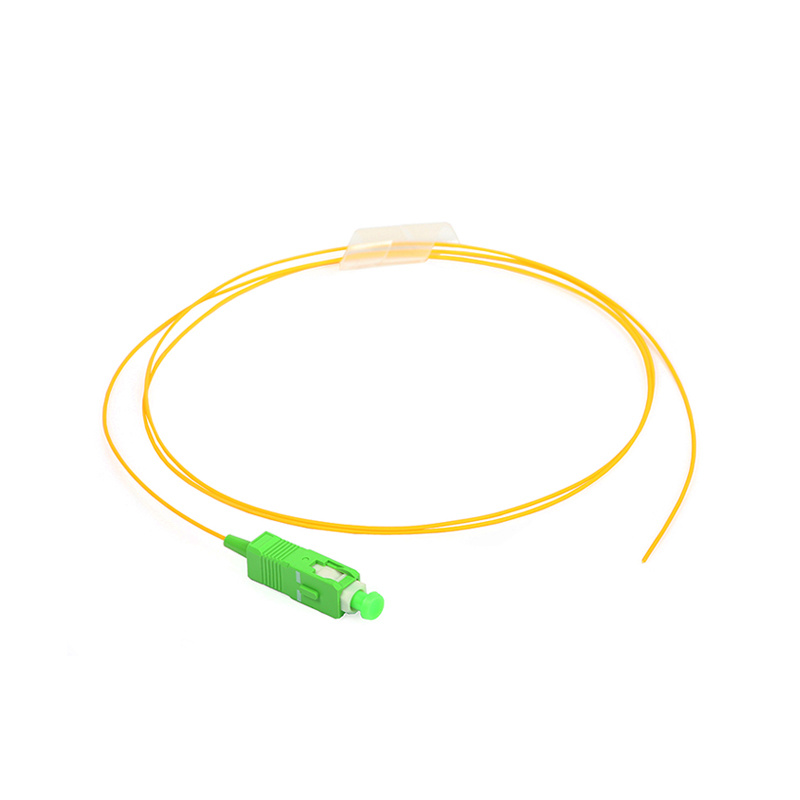

Fiber Optic Pigtail(Simplex)

Fiber Optic Pigtails are manufactured with either single-mode or multi-mode fibre and terminated with a range of connectors including SC, LC, FC, ST and MTRJ. Other connector types are also available upon request.
Availability:
Quantity:
  • Low insertion loss,High return loss;

  • Ceramic Ferrule;

  • Good repeatability and and exchangeability;

  • Excellent Polished and 100% tested;

  • Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.


  • Telecommunications;

  • CATV, LAN, MAN, WAN, Test &Measurement;

  • Termination of optical networks via fusion or mechanical splicing;

  • Testing of optical devices;

  • Cable acceptance testing.


Item

SM(Single Mode)

MM(Multi mode)

Fiber Cable Type

G652/G655/G657

OM1

OM2/OM3/OM4

Fiber Diameter (um)

9/125

62.5/125

50/125

Cable OD (mm)

0.9/1.6/1.8/2.0/2.4/3.0

Connector type

LC/SC/FC/ST/MU

Length

Customized

Endface Type

UPC

APC

UPC

UPC

Typical Insertion Loss (dB)

<0.2

<0.3

<0.2

<0.2

Return Loss (dB)

>50

>60

>30

Insert-pull Test (dB)

<0.2

<0.3

<0.15

Interchangeability (dB)

<0.1

<0.15

<0.1

Anti-tensile Force (N)

>70(Cable OD>1.6mm )

Temperature Range (℃)

-40~+80
