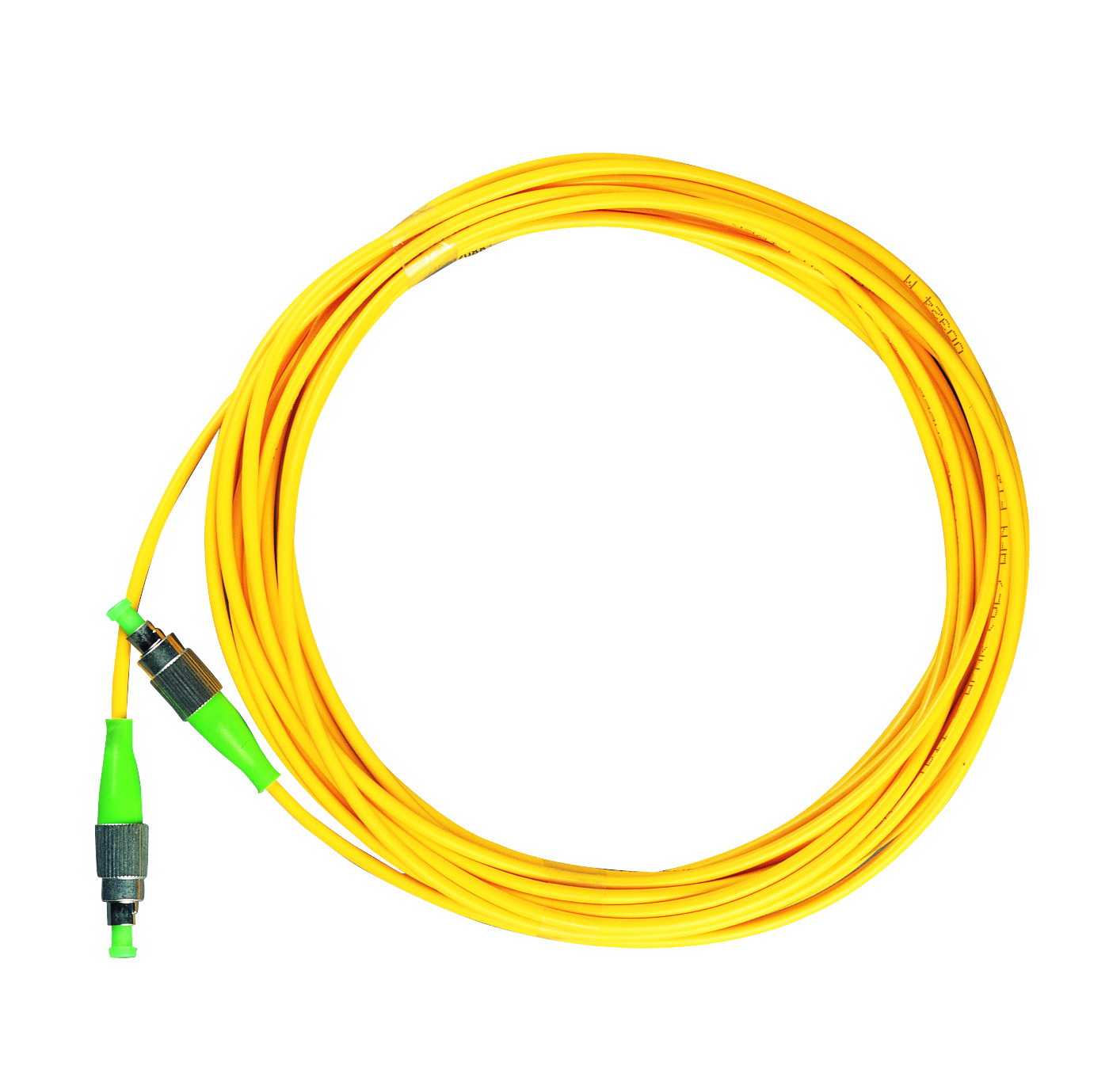

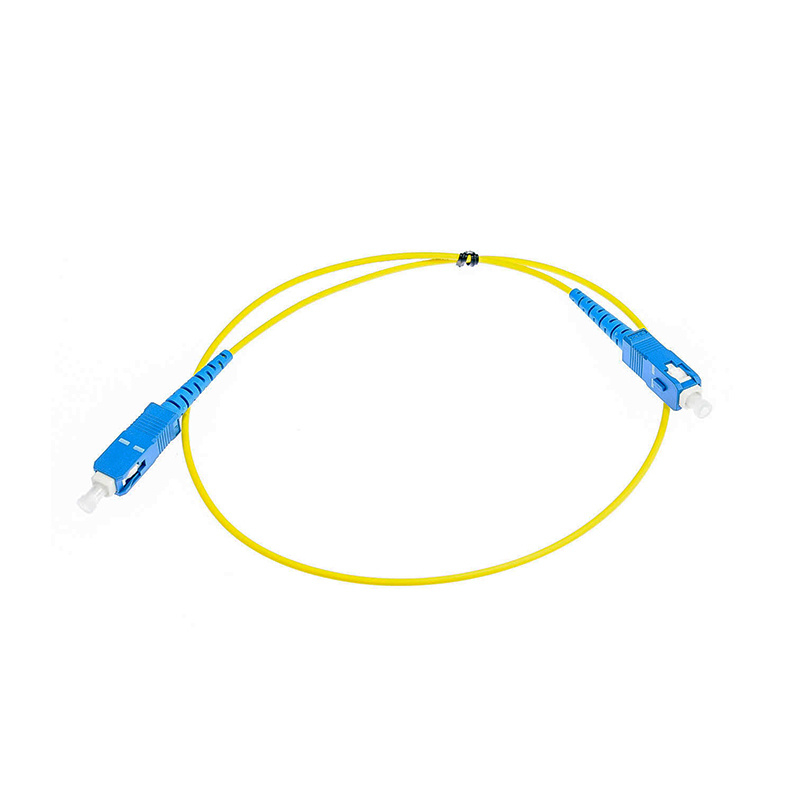

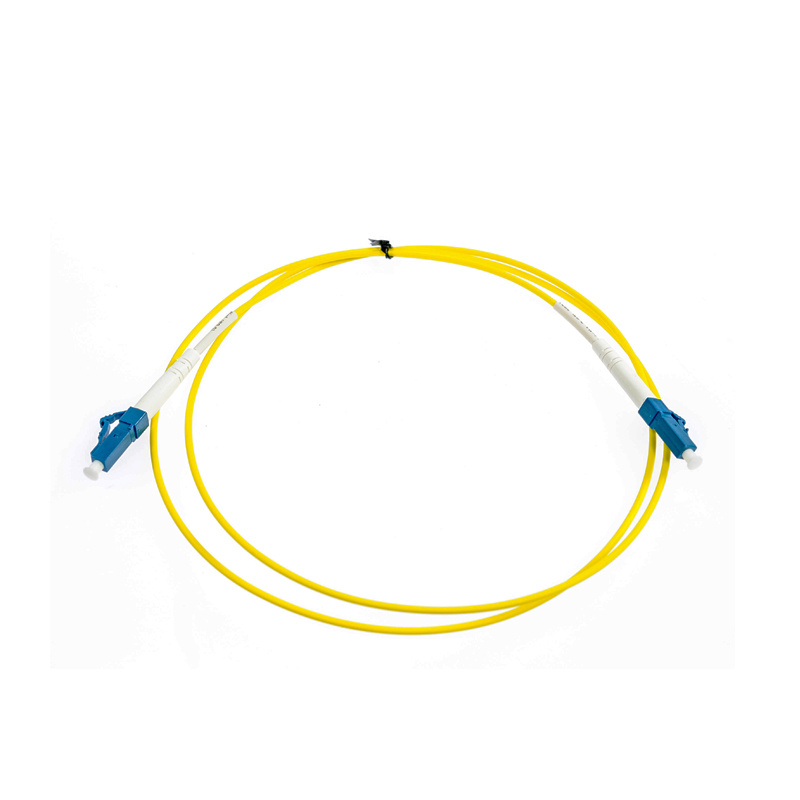

Fiber Optic Patch Cord

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Availability:
Quantity:
  • Ceramic Ferrule;

  • High return loss;

  • Low insertion loss;

  • Good repeatability and and exchangeability;

  • Excellent Polished and 100% tested;

  • Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

  • Telecommunications;

  • CATV, LAN, MAN, WAN, Test &Measurement;

  • Military industry;

  • Medical.

Item

SM(Single Mode)

MM(Multi mode)

Fiber Cable Type

G652/G655/G657

OM1

OM2/OM3/OM4

Fiber Diameter (um)

9/125

62.5/125

50/125

Cable OD (mm)

0.9/1.6/1.8/2.0/2.4/3.0

Connector type

LC/SC/FC/ST/MU

Length

Customized

Endface Type

UPC

APC

UPC

UPC

Typical Insertion Loss (dB)

<0.2

<0.3

<0.2

<0.2

Return Loss (dB)

>50

>60

>30

Insert-pull Test (dB)

<0.2

<0.3

<0.15

Interchangeability (dB)

<0.1

<0.15

<0.1

Anti-tensile Force (N)

>70

Temperature Range (℃)

-40~+80
