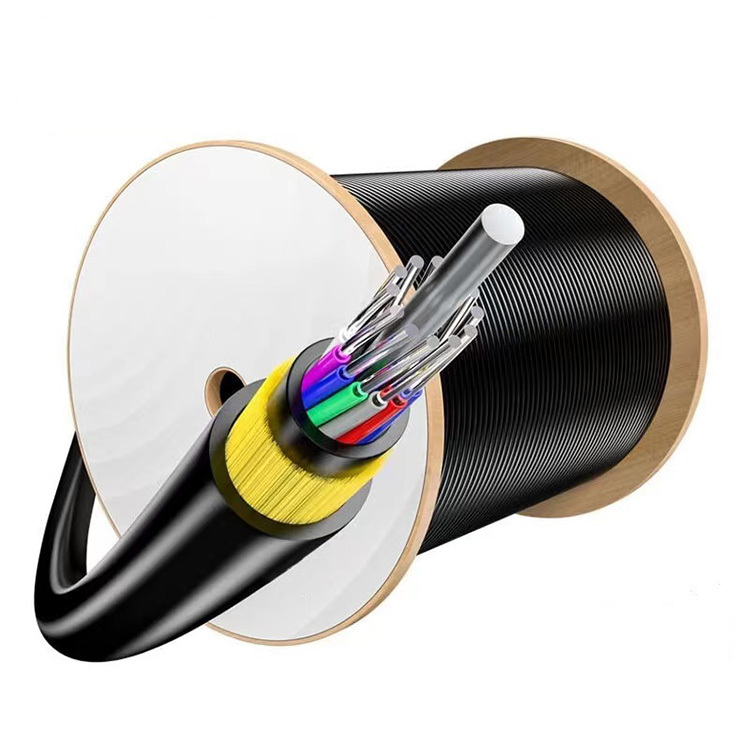

All Dielectric Self-supporting Aerial Cable (ADSS)

ADSS(All-Dielectric Self-Supporting Optical Cable) it has unique structure, good insulation and high temperature resistance, as well as high tensile strength, and is a non-metallic optical cable composed entirely of dielectric materials and containing necessary support systems. It is mainly used in overhead high-voltage transmission systems and can also be used for communication lines in lightning prone areas, large-span and other overhead laying environments, it provides a fast and economical transmission channel for power communication systems.
Availability:
Quantity:
  • High tensile strength;

  • All dielectric structure and semi-dry design;

  • Small diameter and light weight.


  • Be hung directly on the power tower;

  • Used for communication route for overhead high voltage transmission systems;

  • Used in communication lines under overhead laying conditions.

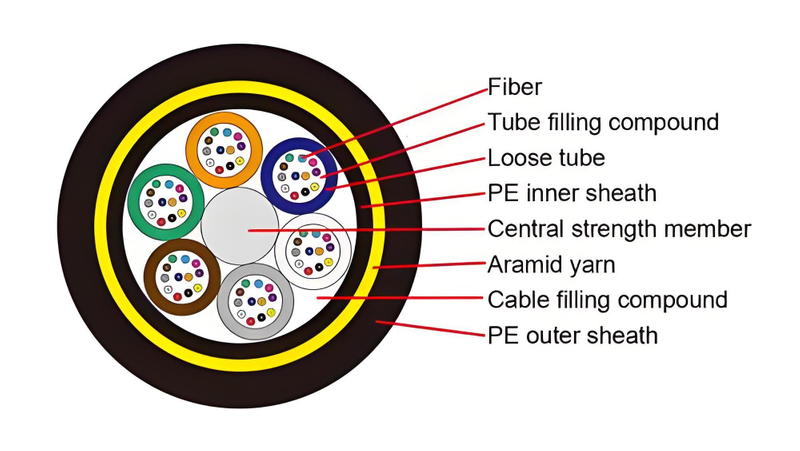

Fibers

4F/8F…288F

Fiber type

G652/G657

Central strength member

FRP

Outer strength member

Aramid yarn

Inner sheath

PE

Outer sheath

PE/AT

Cable color

Black/White

Diameter

11-20.2 (mm)

Weight (approx.)

95-290 (kg/km)

Packing (per reel)

1km or Customized

Standard complied

IEEE P 1222

IEC 60794-1-2

Crush Resistance

Long/Short Term

300/1000 (N)

700/2200(N)

Max. span

140-750 (m)

Bending Radius

Static/Dynamic

15D/20D (mm)
