Adopt "SZ" bidirectional layer stranding technology;
Filled with water-blocking gel in every production process; the whole cross section is water resistance;
Excellent crush resistance with steel(aluminum) tape armor, high strength and no deformation after twisting;
Stable control of cable excess length;
Almost zero additional attenuation after cabled and no change of the dispersion value;
Excellent environmental performance, applicable temperature range can reach -40℃ ~+70℃;
Suitable for aerial, pipeline, direct buried installation methods.
Adopt "SZ" bidirectional layer stranding technology;
Filled with water-blocking gel in every production process; the whole cross section is water resistance;
Excellent crush resistance with steel(aluminum) tape armor, high strength and no deformation after twisting;
Stable control of cable excess length;
Almost zero additional attenuation after cabled and no change of the dispersion value;
Excellent environmental performance, applicable temperature range can reach -40℃ ~+70℃;
Suitable for aerial, pipeline, direct buried installation methods.
Long-haul communication, interoffice communication;
Especially suitable for application with high requirement of anti-moisture, anti-rodent and so on.
Long-haul communication, interoffice communication;
Especially suitable for application with high requirement of anti-moisture, anti-rodent and so on.

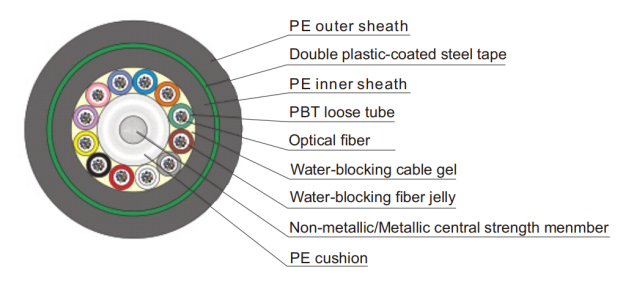

Structural Parameters
Fiber count | Cable O.D(mm) | Cable Weight(kg/km) | Minimum Bending Radius(mm) | Tensile Load (N) | Crush Load (N/100mm) | |||
Static | Dynamic | Short term | Long term | Short term | Long term | |||
2-36 | 13.6 | 220 | 12.5 Times O.D | 25 Times O.D | 3000 | 1000 | 3000 | 1000 |
38-60 | 14.1 | 225 | ||||||
62-72 | 14.6 | 255 | ||||||
74-96 | 16.2 | 305 | ||||||
98-120 | 17.7 | 350 | ||||||
122-144 | 19.1 | 395 | ||||||
146-216 | 19.6 | 420 | ||||||
218-240 | 22.4 | 495 | ||||||
242-288 | 23.8 | 530 | ||||||
290-432 | 25.0 | 620 |
Optical Characteristics
Fiber Type | Attenuation (dB/km) | |
1310nm | 1550nm | |
G.652D | ≤0.4 | ≤0.3 |
G.657A | ≤0.4 | ≤0.3 |
Standard length
Length:2000m/4000m,Or customer standard.
