Pipeline Bow-Type Drop Cable

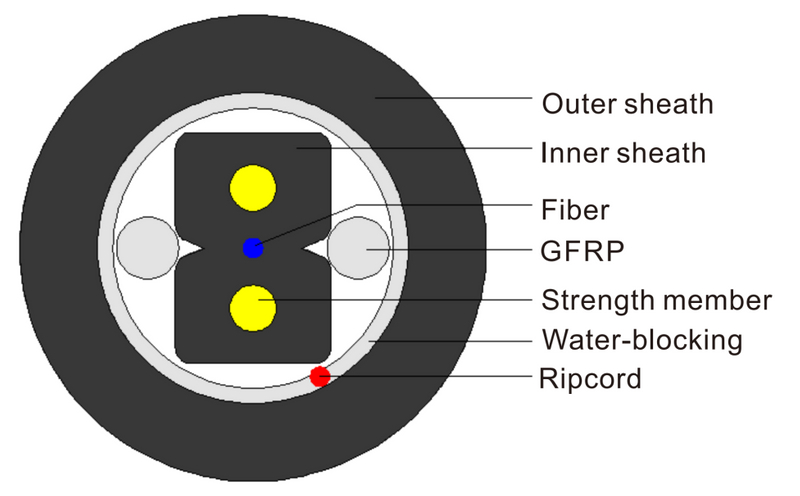

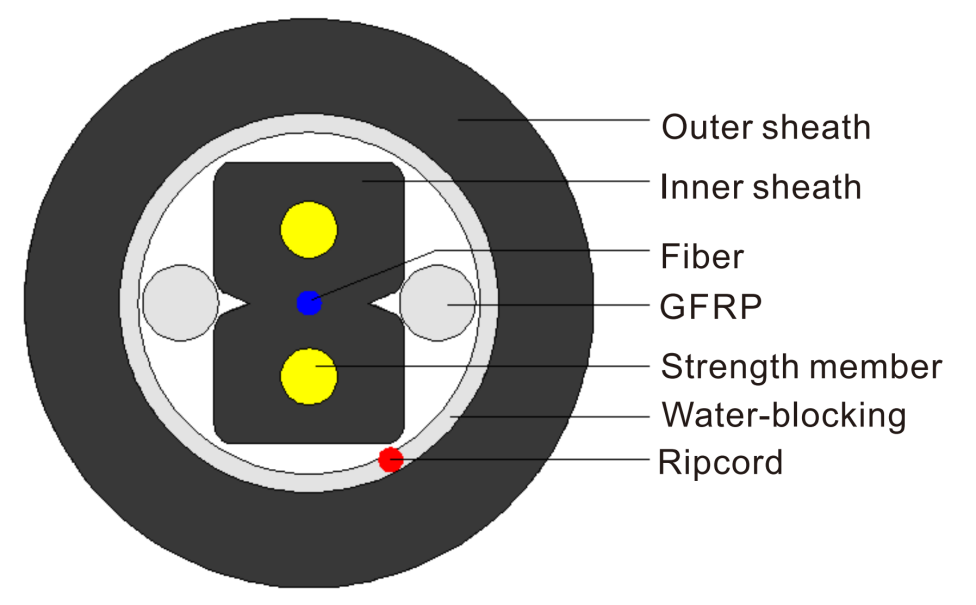

Pipeline bow type drop cable is composed of bow type drop cable, water blocking tape, aluminum tape, PE sheath.
Availability:
Quantity:
  • Bending resistant fiber to provide greater bandwidth and enhance network transmission characteristics;

  • Simple structure, light weight, very practical;

  • Special tearing slot design, easy to peel off, convenient for splicing, simple installation and maintenance;

  • Aluminum tape with the moisture proof layer;

  • PE sheath with excellent anti-UV function.


  • Outdoor duct access;

  • FTTH.


Structural Parameters

Fiber Count

Cable Diameter

(mm)

Weight

(kg/km)

Minimum Bending Radius(mm)

Tensile Load(N)

Crush Load (N/100mm)

Temperature Range

(℃)

Static

Dynamic

Short Term

Long Term

Short Term

Long Term

1

7.0

35.1

70

140

600

200

1000

500

-20℃-+60℃

2

7.0

35.2

70

140

600

200

1000

500

-20℃-+60℃

4

7.0

35.3

70

140

600

200

1000

500

-20℃-+60℃

Optical Characteristics

Fiber Type

Attenuation(dB/km)

1310nm

1550nm

G.652D

≤0.4

≤0.3

G.657A

≤0.4

≤0.3

Standard Length

Length: 1000m/2000m, or customer standard.
