Indoor Bow Type Drop Cable

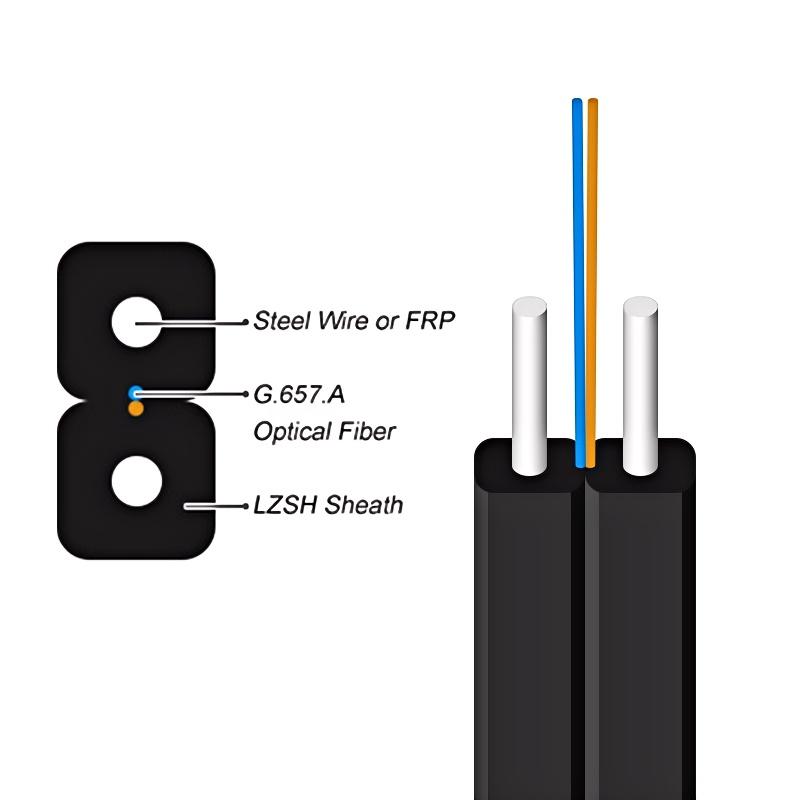

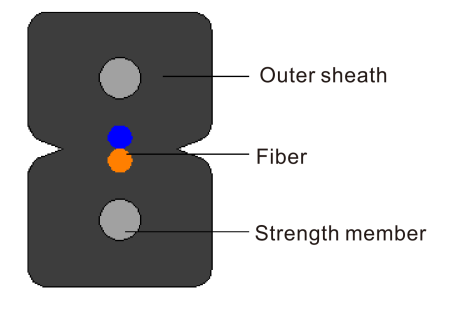

There are two parallel strength members at two sides of the indoor bow-type drop cable to protect the fiber in the center of the cable, the sheath is made of LSZH material.
Availability:
Quantity:
Inquire Add to Basket

  • Bending resistant fiber to provide greater bandwidth and enhance network transmission characteristics；

  • Simple structure, light weight, very practical；

  • Special tearing slot design, easy to peel off, convenient for splicing, simple installation and maintenance；

  • Flame retardant, environmentally friendly, corrosion resistant out sheath.


  • Used as access building cable;

  • Used in indoor cabling, especially used for FTTH.

Structural Parameters

Fiber Count

Strength Member

Cable Diameter

（mm）

Weight（kg/km）

Minimum Bending Radius

（mm）

Tensile Load

（N)

Crush Load (N/100mm)

Temperature Range

(℃)

Static

Dynamic

Short Term

Long Term

Short Term

Long Term

1

GFRP/KFRP

2.0*3.0±0.1

8.1

20

40

80

40

1000

500

-20℃-+60℃

2

GFRP/KFRP

2.0*3.0±0.1

8.3

20

40

80

40

1000

500

-20℃-+60℃

4

GFRP/KFRP

2.0*3.0±0.1

8.5

20

40

80

40

1000

500

-20℃-+60℃

1

Phosphated / Galvanized Steel Wire

2.0*3.0±0.1

11.6

20

40

200

100

2200

1000

-20℃-+60℃

2

Phosphated / Galvanized Steel Wire

2.0*3.0±0.1

11.8

20

40

200

100

2200

1000

-20℃-+60℃

4

Phosphated / Galvanized Steel Wire

2.0*3.0±0.1

11.9

20

40

200

100

2200

1000

-20℃-+60℃

Optical Characteristics

Fiber Type

Attenuation（dB/km）

1310nm

1550nm

G.652D

≤0.4

≤0.3

G.657A

≤0.4

≤0.3

Standard Length

Length: 1000m/2000m, or customer standard.



Previous:
Next:
Fiber Optic Cable Optical Patchcord Optical Distribution Box Date Center Solution Passive Components

Related Products

Wireless Radio Frequency Drawing Unit Optical Cable
Wireless Radio Frequency Drawing Unit Optical Cable
Central Tube Drop Cable
Central Tube Drop Cable

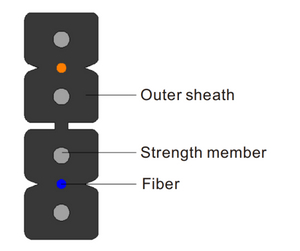

Row Bow Type Drop Cable
Row Bow Type Drop Cable
Pipeline Bow-Type Drop Cable
Pipeline Bow-Type Drop Cable
Self-Supporting Bow Type Drop Cable
Self-Supporting Bow Type Drop Cable
EAA/Plastic Coated Steel Wire
EAA/Plastic Coated Steel Wire

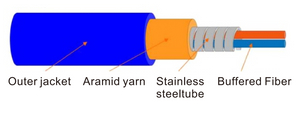

Flexible Steel Tube Armored Cable
