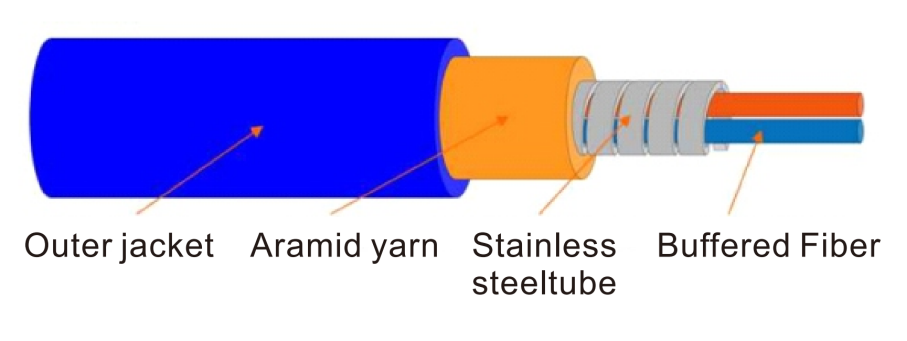

Flexible steel tube has excellent anti-pressure and flexible performance;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Flexible steel tube has excellent anti-pressure and flexible performance;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Used for pipeline wiring, drawing wiring;
FTTH and other special type wiring.
Used for pipeline wiring, drawing wiring;
FTTH and other special type wiring.
Structural Parameters
Fiber Count | Strength Member | Cable Diameter (mm) | Weight(kg/km) | Minimum Bending Radius (mm) | Tensile Load (N) | Crush Load (N/100mm) | Temperature Range (℃) | |||
Static | Dynamic | Short Term | Long Term | Short Term | Long Term | |||||
1 | Aramid Yarn | 3.0±0.1 | 11.0 | 30 | 60 | 450 | 200 | 3000 | 1000 | -40℃-+80℃ |
2 | Aramid Yarn | 4.0±0.2 | 25.0 | 40 | 80 | 800 | 400 | 3000 | 1000 | -40℃-+80℃ |
4 | Aramid Yarn | 4.5±0.2 | 26.5 | 45 | 90 | 800 | 400 | 3000 | 1000 | -40℃-+80℃ |
6 | Aramid Yarn | 4.5±0.2 | 28.1 | 45 | 90 | 500 | 300 | 3000 | 1000 | -40℃-+80℃ |
8 | Aramid Yarn | 4.5±0.2 | 28.3 | 45 | 90 | 800 | 400 | 3000 | 1000 | -40℃-+80℃ |
12 | Aramid Yarn | 6.0±0.25 | 38.5 | 60 | 120 | 1200 | 600 | 3000 | 1000 | -40℃-+80℃ |
Fiber Type | Attenuation(dB/km) | Overfilled Launch Bandwidth (MHz.km) | Effective Mode Bandwidth (MHz.km) | ||||
1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nm | |
G.652D | ≤0.4 | ≤0.3 | - | - | - | - | - |
G.657A | ≤0.4 | ≤0.3 | - | - | - | - | - |
OM1 | - | - | ≤3.0 | ≤1.0 | ≥200 | ≥500 | |
OM2 | - | - | ≤3.0 | ≤1.0 | ≥500 | ≥500 | |
OM3 | - | - | ≤3.0 | ≤1.0 | ≥1500 | ≥500 | ≥2000 |
OM4 | - | - | ≤3.0 | ≤1.0 | ≥3500 | ≥500 | ≥4700 |
Standard Length
Length: 1000m/2000m, or customer standard.
