Small size and light weight, flexible wiring;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Small size and light weight, flexible wiring;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Fiber jumper or pigtail;
Indoor integrated wiring;
Interconnection of instrument and communication equipment.
Fiber jumper or pigtail;
Indoor integrated wiring;
Interconnection of instrument and communication equipment.

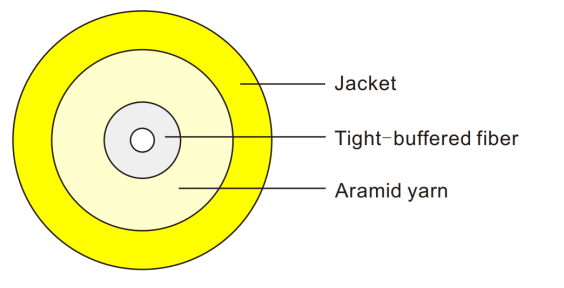

Structural Parameters
Fiber Count | Strength Member | Cable diameter (mm) | Weight (kg/km) | Minimum Bending Radius (mm) | Tensile Load (N) | Crush Load(N/100mm) | Temperature Range (℃) | ||||
Static | Dynamic | Short Term | Long Term | Short Term | Long Term | ||||||
1 | Aramid Yarn | 1.6±0.1 | 2.2 | 30 | 60 | 80 | 40 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 1.8±0.1 | 3.4 | 30 | 60 | 100 | 60 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 2.0±0.1 | 3.9 | 30 | 60 | 100 | 60 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 2.4±0.1 | 5.1 | 30 | 60 | 120 | 60 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 2.8±0.1 | 5.6 | 30 | 60 | 150 | 80 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 3.0±0.1 | 6.6 | 30 | 60 | 150 | 80 | 500 | 100 | -20℃-+60℃ |
Fiber Type | Attenuation(dB/km) | Overfilled Launch Bandwidth (MHz.km) | Effective Mode Bandwidth (MHz.km) | ||||
1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nm | |
G.652D | ≤0.4 | ≤0.3 | - | - | - | - | - |
G.657A | ≤0.4 | ≤0.3 | - | - | - | - | - |
OM1 | - | - | ≤3.0 | ≤1.0 | ≥200 | ≥500 | |
OM2 | - | - | ≤3.0 | ≤1.0 | ≥500 | ≥500 | |
OM3 | - | - | ≤3.0 | ≤1.0 | ≥1500 | ≥500 | ≥2000 |
OM4 | - | - | ≤3.0 | ≤1.0 | ≥3500 | ≥500 | ≥4700 |
Length: 1000m/2000m, or customer standard.
Structural Parameters
Fiber Count | Strength Member | Cable diameter (mm) | Weight (kg/km) | Minimum Bending Radius (mm) | Tensile Load (N) | Crush Load(N/100mm) | Temperature Range (℃) | ||||
Static | Dynamic | Short Term | Long Term | Short Term | Long Term | ||||||
1 | Aramid Yarn | 1.6±0.1 | 2.2 | 30 | 60 | 80 | 40 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 1.8±0.1 | 3.4 | 30 | 60 | 100 | 60 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 2.0±0.1 | 3.9 | 30 | 60 | 100 | 60 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 2.4±0.1 | 5.1 | 30 | 60 | 120 | 60 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 2.8±0.1 | 5.6 | 30 | 60 | 150 | 80 | 500 | 100 | -20℃-+60℃ | |
1 | Aramid Yarn | 3.0±0.1 | 6.6 | 30 | 60 | 150 | 80 | 500 | 100 | -20℃-+60℃ |
Fiber Type | Attenuation(dB/km) | Overfilled Launch Bandwidth (MHz.km) | Effective Mode Bandwidth (MHz.km) | ||||
1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nm | |
G.652D | ≤0.4 | ≤0.3 | - | - | - | - | - |
G.657A | ≤0.4 | ≤0.3 | - | - | - | - | - |
OM1 | - | - | ≤3.0 | ≤1.0 | ≥200 | ≥500 | |
OM2 | - | - | ≤3.0 | ≤1.0 | ≥500 | ≥500 | |
OM3 | - | - | ≤3.0 | ≤1.0 | ≥1500 | ≥500 | ≥2000 |
OM4 | - | - | ≤3.0 | ≤1.0 | ≥3500 | ≥500 | ≥4700 |
Length: 1000m/2000m, or customer standard.
