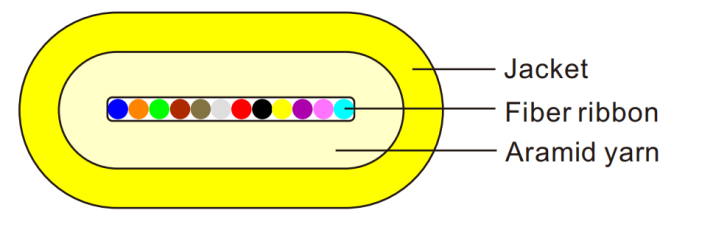

Fiber ribbon as the basic unit with high integration;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Fiber ribbon as the basic unit with high integration;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Indoor wiring;
Interconnection of instrument and communication equipment;
Ribbon patch cord connection.
Indoor wiring;
Interconnection of instrument and communication equipment;
Ribbon patch cord connection.
Structural Parameters
Fiber Count | Strength Member | Cable Diameter (mm) | Weight(kg/km) | Minimum Bending Radius (mm) | Tensile Load (N) | Crush Load(N/100mm) | Temperature Range (℃) | |||
Static | Dynamic | Short Term | Long Term | Short Term | Long Term | |||||
8 | Aramid Yarn | 2.0*4.2±0.2 | 9.4 | 30 | 60 | 200 | 80 | 500 | 200 | -20℃-+60℃ |
12 | Aramid Yarn | 2.3*4.8±0.2 | 11.1 | 30 | 60 | 200 | 80 | 500 | 200 | -20℃-+60℃ |
24 | Aramid Yarn | 2.3*4.8±0.2 | 12.3 | 30 | 60 | 200 | 80 | 500 | 200 | -20℃-+60℃ |
Optical Characteristics
Fiber Type | Attenuation(dB/km) | Overfilled LaunchBandwidth (MHz.km) | Effective Mode Bandwidth (MHz.km) | ||||
1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nm | |
G.652D | ≤0.4 | ≤0.3 | - | - | - | - | - |
G.657A | ≤0.4 | ≤0.3 | - | - | - | - | - |
OM1 | - | - | ≤3.0 | ≤1.0 | ≥200 | ≥500 | |
OM2 | - | - | ≤3.0 | ≤1.0 | ≥500 | ≥500 | |
OM3 | - | - | ≤3.0 | ≤1.0 | ≥1500 | ≥500 | ≥2000 |
OM4 | - | - | ≤3.0 | ≤1.0 | ≥3500 | ≥500 | ≥4700 |
Standard Length
Length: 1000m/2000m, or customer standard.
Structural Parameters
Fiber Count | Strength Member | Cable Diameter (mm) | Weight(kg/km) | Minimum Bending Radius (mm) | Tensile Load (N) | Crush Load(N/100mm) | Temperature Range (℃) | |||
Static | Dynamic | Short Term | Long Term | Short Term | Long Term | |||||
8 | Aramid Yarn | 2.0*4.2±0.2 | 9.4 | 30 | 60 | 200 | 80 | 500 | 200 | -20℃-+60℃ |
12 | Aramid Yarn | 2.3*4.8±0.2 | 11.1 | 30 | 60 | 200 | 80 | 500 | 200 | -20℃-+60℃ |
24 | Aramid Yarn | 2.3*4.8±0.2 | 12.3 | 30 | 60 | 200 | 80 | 500 | 200 | -20℃-+60℃ |
Optical Characteristics
Fiber Type | Attenuation(dB/km) | Overfilled LaunchBandwidth (MHz.km) | Effective Mode Bandwidth (MHz.km) | ||||
1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nm | |
G.652D | ≤0.4 | ≤0.3 | - | - | - | - | - |
G.657A | ≤0.4 | ≤0.3 | - | - | - | - | - |
OM1 | - | - | ≤3.0 | ≤1.0 | ≥200 | ≥500 | |
OM2 | - | - | ≤3.0 | ≤1.0 | ≥500 | ≥500 | |
OM3 | - | - | ≤3.0 | ≤1.0 | ≥1500 | ≥500 | ≥2000 |
OM4 | - | - | ≤3.0 | ≤1.0 | ≥3500 | ≥500 | ≥4700 |
Standard Length
Length: 1000m/2000m, or customer standard.
