Bending-resistant fiber to provide greater bandwidth and enhance network transmission characteristics;
Simple structure, light weight, very practical;
Special tearing slot design, easy to peel off, convenient for splicing, simple installation and maintenance;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Bending-resistant fiber to provide greater bandwidth and enhance network transmission characteristics;
Simple structure, light weight, very practical;
Special tearing slot design, easy to peel off, convenient for splicing, simple installation and maintenance;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Indoor integrated wiring;
FTTH.
Indoor integrated wiring;
FTTH.

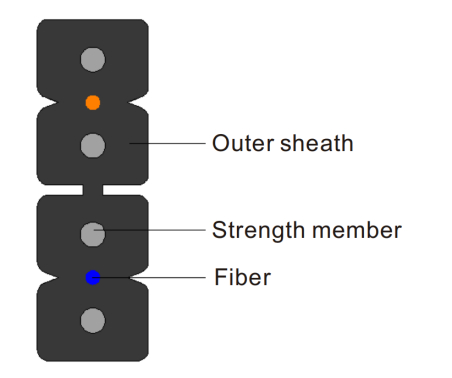

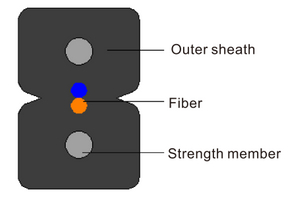

Structural Parameters
Fiber Count | Strength Member | Cable Diameter (mm) | Weight (kg/km) | Minimum Bending Radius (mm) | Tensile Load (N) | Crush Load (N/100mm) | Temperature Range (℃) | |||
Static | Dynamic | Short Term | Long Term | Short Term | Long Term | |||||
2 | Phosphated / galvanized steel wire | 2.0*6.0±0.2 | 21.2 | 20 | 40 | 400 | 200 | 2200 | 1100 | -20℃-+60℃ |
4 | Phosphated / galvanized steel wire | 2.0*6.0±0.2 | 21.3 | 20 | 40 | 400 | 200 | 2200 | 1100 | -20℃-+60℃ |
8 | Phosphated / galvanized steel wire | 2.0*6.0±0.2 | 21.7 | 20 | 40 | 400 | 200 | 2200 | 1100 | -20℃-+60℃ |
2 | GFRP/KFRP | 2.0*6.0±0.2 | 15.3 | 20 | 40 | 130 | 65 | 2200 | 1100 | -20℃-+60℃ |
4 | GFRP/KFRP | 2.0*6.0±0.2 | 15.4 | 20 | 40 | 130 | 65 | 2200 | 1100 | -20℃-+60℃ |
8 | GFRP/KFRP | 2.0*6.0±0.2 | 15.8 | 20 | 40 | 130 | 65 | 2200 | 1100 | -20℃-+60℃ |
Optical Characteristics
Fiber Type | Attenuation(dB/km) | |
1310nm | 1550nm | |
G.652D | ≤0.4 | ≤0.3 |
G.657A | ≤0.4 | ≤0.3 |
Standard Length
Length: 1000m/2000m, or customer standard.
