Self-Supporting Bow Type Drop Cable

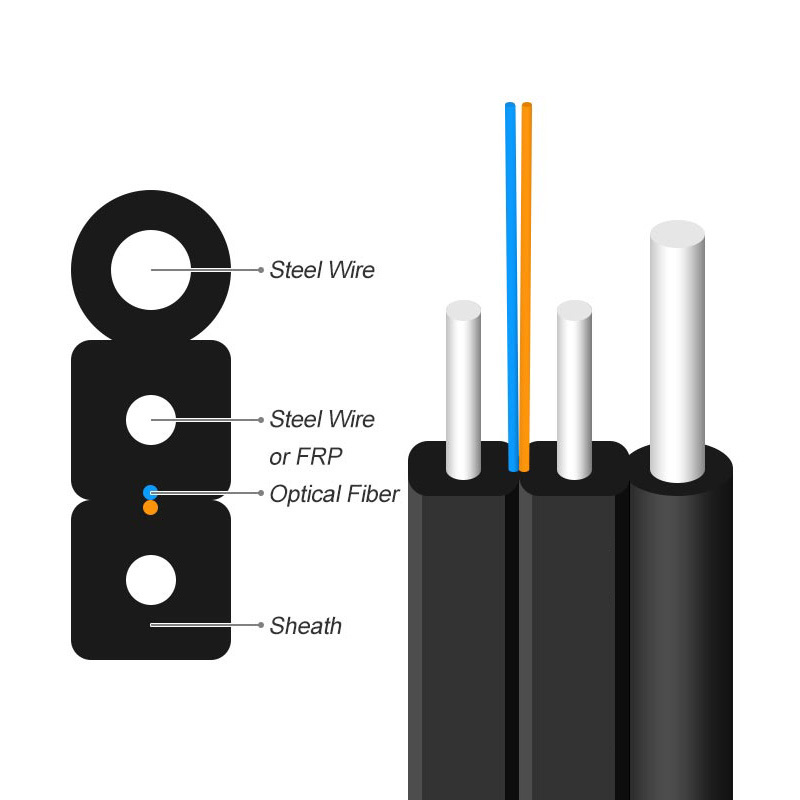

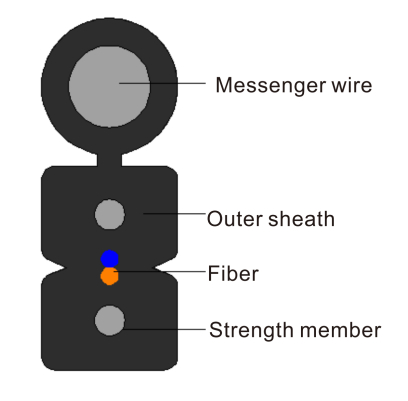

The fiber is in the central, two parallel strength members are at the two sides, one metal strength member is at the outside, LSZH material as the sheath.
Availability:
Quantity:
Inquire Add to Basket

  • Bending resistant fiber to provide greater bandwidth and enhance network transmission characteristics;

  • Simple structure, light weight, very practical;

  • Special tearing slot design, easy to peel off, convenient for splicing, simple installation and maintenance;

  • Flame retardant, environmentally friendly, corrosion resistant out sheath.


  • Access to the building from outside;

  • FTTH.


Structural Parameters

Fiber Count

Strength Member

Strength Member

Diameter

（mm）

Weight（kg/km）

Minimum Bending Radius

（mm）

Tensile Load

（N)

Crush Load (N/100mm)

Temperature Range

(℃)

Static

Dynamic

Short Term

Long Term

Short Term

Long Term

1

GFRP/KFRP

Phosphated / galvanized / copper coated steel wire

2.0*5.3±0.2

18.1

20

40

600

300

2200

1000

-20℃-+60℃

2

GFRP/KFRP

Phosphated / galvanized / copper coated steel wire

2.0*5.3±0.2

18.2

20

40

600

300

2200

1000

-20℃-+60℃

4

GFRP/KFRP

Phosphated / galvanized / copper coated steel wire

2.0*5.3±0.2

18.3

20

40

600

300

2200

1000

-20℃-+60℃

1

Phosphated / galvanized steel wire

Phosphated / galvanized / copper coated steel wire

2.0*5.3±0.2

22.5

20

40

600

300

2200

1000

-20℃-+60℃

2

Phosphated / galvanized steel wire

Phosphated / galvanized / copper coated steel wire

2.0*5.3±0.2

22.6

20

40

600

300

2200

1000

-20℃-+60℃

4

Phosphated / galvanized steel wire

Phosphated / galvanized / copper coated steel wire

2.0*5.3±0.2

22.8

20

40

600

300

2200

1000

-20℃-+60℃

Optical Characteristics

Fiber Type

Attenuation（dB/km）

1310nm

1550nm

G.652D

≤0.4

≤0.3

G.657A

≤0.4

≤0.3

Standard Length

Length: 1000m/2000m, or customer standard.
