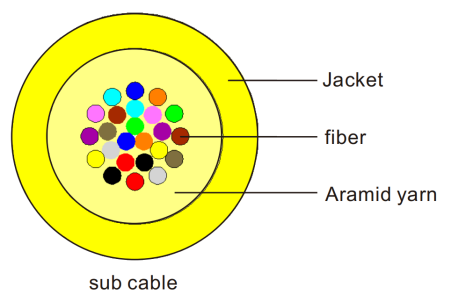

Bare fiber as the basic unit, with high integration;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Bare fiber as the basic unit, with high integration;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
Indoor integrated wiring;
Fiber flexible jumper or pigtail fiber;
Data center.
Indoor integrated wiring;
Fiber flexible jumper or pigtail fiber;
Data center.

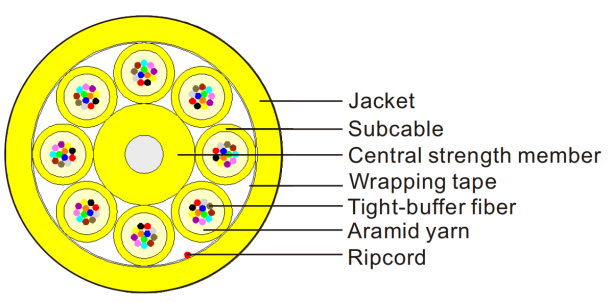

Structural Parameters
Fiber Count | Strength Member | Cable Diameter (mm) | Weight(kg/km) | Minimum Bending Radius(mm) | Tensile Load(N) | Crush Load (N/100mm) | Temperature Range (℃) | |||
Static | Dynamic | Short Term | Long Term | Short Term | Long Term | |||||
2 | Aramid Yarn | 2.0±0.1 | 3.2 | 30 | 60 | 100 | 50 | 500 | 100 | -20℃-+60℃ |
8 | Aramid Yarn | 2.4±0.1 | 4.9 | 30 | 60 | 150 | 70 | 500 | 100 | -20℃-+60℃ |
12 | Aramid Yarn | 3.0±0.1 | 6.9 | 30 | 60 | 200 | 80 | 500 | 100 | -20℃-+60℃ |
16 | Aramid Yarn | 3.4±0.1 | 9.0 | 34 | 68 | 220 | 100 | 500 | 100 | -20℃-+60℃ |
24 | Aramid Yarn | 3.5±0.1 | 9.5 | 35 | 70 | 250 | 120 | 500 | 100 | -20℃-+60℃ |
32 | Aramid Yarn | 5.0±0.1 | 21.0 | 50 | 100 | 250 | 120 | 500 | 100 | -20℃-+60℃ |
48 | Aramid Yarn | 9.5±0.3 | 100.0 | 95 | 190 | 600 | 200 | 1000 | 200 | -20℃-+60℃ |
64 | Aramid Yarn | 11.5±0.5 | 110.0 | 120 | 240 | 800 | 400 | 1000 | 200 | -20℃-+60℃ |
72 | Aramid Yarn | 13.5±0.5 | 145.0 | 135 | 270 | 1000 | 400 | 1000 | 200 | -20℃-+60℃ |
96 | Aramid Yarn | 13.5±0.5 | 150.0 | 135 | 270 | 1200 | 400 | 1000 | 200 | -20℃-+60℃ |
144 | Aramid Yarn | 13.5±0.5 | 153.0 | 135 | 270 | 1320 | 400 | 1000 | 200 | -20℃-+60℃ |
Optical Characteristics
Fiber Type | Attenuation(dB/km) | Overfilled Launch Bandwidth (MHz.km) | Effective Mode Bandwidth (MHz.km) | ||||
1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nm | |
G.652D | ≤0.4 | ≤0.3 | - | - | - | - | - |
G.657A | ≤0.4 | ≤0.3 | - | - | - | - | - |
OM1 | - | - | ≤3.0 | ≤1.0 | ≥200 | ≥500 | |
OM2 | - | - | ≤3.0 | ≤1.0 | ≥500 | ≥500 | |
OM3 | - | - | ≤3.0 | ≤1.0 | ≥1500 | ≥500 | ≥2000 |
OM4 | - | - | ≤3.0 | ≤1.0 | ≥3500 | ≥500 | ≥4700 |
Standard Length
Length: 1000m/2000m, or customer standard.
