With excellent mechanical performance and temperature characteristic;
Loose tube has good hydrolysis resistance and high strength features;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Small diameter, light weight, easy to installation.
With excellent mechanical performance and temperature characteristic;
Loose tube has good hydrolysis resistance and high strength features;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Small diameter, light weight, easy to installation.
Used to access network;
Access to the building from the outside.
Used to access network;
Access to the building from the outside.

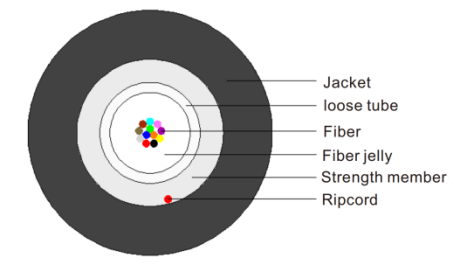

Structural Parameters
Fiber Count | Strength Member | Cable Diameter (mm) | Weight (kg/km) | Minimum Bending Radius (mm) | Tensile Load (N) | Crush Load (N/100mm) | Temperature Range (℃) | |||
Static | Dynamic | Short Term | Long Term | Short Term | Long Term | |||||
2 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 32.1 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
4 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 32.3 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
6 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 32.5 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
8 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 32.7 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
12 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 33.2 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
24 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 35.3 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
Fiber Type | Attenuation(dB/km) | Overfilled Launch Bandwidth (MHz.km) | Effective Mode Bandwidth (MHz.km) | ||||
1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nm | |
G.652D | ≤0.4 | ≤0.3 | - | - | - | - | - |
G.657A | ≤0.4 | ≤0.3 | - | - | - | - | - |
OM1 | - | - | ≤3.0 | ≤1.0 | ≥200 | ≥500 | |
OM2 | - | - | ≤3.0 | ≤1.0 | ≥500 | ≥500 | |
OM3 | - | - | ≤3.0 | ≤1.0 | ≥1500 | ≥500 | ≥2000 |
OM4 | - | - | ≤3.0 | ≤1.0 | ≥3500 | ≥500 | ≥4700 |
Standard Length
Length: 1000m/2000m, or customer standard.
Structural Parameters
Fiber Count | Strength Member | Cable Diameter (mm) | Weight (kg/km) | Minimum Bending Radius (mm) | Tensile Load (N) | Crush Load (N/100mm) | Temperature Range (℃) | |||
Static | Dynamic | Short Term | Long Term | Short Term | Long Term | |||||
2 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 32.1 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
4 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 32.3 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
6 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 32.5 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
8 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 32.7 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
12 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 33.2 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
24 | Aramid Yarn / Glass Yarn | 6.0±0.1 | 35.3 | 60 | 120 | 600 | 300 | 1000 | 200 | -20℃-+60℃ |
Fiber Type | Attenuation(dB/km) | Overfilled Launch Bandwidth (MHz.km) | Effective Mode Bandwidth (MHz.km) | ||||
1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nm | |
G.652D | ≤0.4 | ≤0.3 | - | - | - | - | - |
G.657A | ≤0.4 | ≤0.3 | - | - | - | - | - |
OM1 | - | - | ≤3.0 | ≤1.0 | ≥200 | ≥500 | |
OM2 | - | - | ≤3.0 | ≤1.0 | ≥500 | ≥500 | |
OM3 | - | - | ≤3.0 | ≤1.0 | ≥1500 | ≥500 | ≥2000 |
OM4 | - | - | ≤3.0 | ≤1.0 | ≥3500 | ≥500 | ≥4700 |
Standard Length
Length: 1000m/2000m, or customer standard.
