Small outer diameter, light weight, convenient construction;
Completely solve the problem of tube shrinking;
Stable control of cable excess length;
Almost zero additional attenuation after cabling and no change of the dispersion value;
Excellent environmental performance, applicable temperature range can reach -40℃ ~+70℃.
Small outer diameter, light weight, convenient construction;
Completely solve the problem of tube shrinking;
Stable control of cable excess length;
Almost zero additional attenuation after cabling and no change of the dispersion value;
Excellent environmental performance, applicable temperature range can reach -40℃ ~+70℃.
Long-haul communication, interoffice communication;
Suitable for aerial and duct installations in telecommunication, FTTx, and backbone networks.
Long-haul communication, interoffice communication;
Suitable for aerial and duct installations in telecommunication, FTTx, and backbone networks.

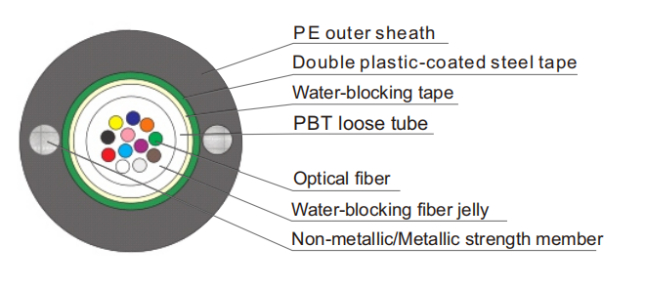

Structural Parameters
Fiber Count | Cable O.D(mm) | Cable Weight(kg/km) | Minimum Bending Radius(mm) | Tensile Load (N) | Crush Load (N/100mm) | |||
Static | Dynamic | Short term | Long term | Short term | Long term | |||
2-12 | 8.9 | 90 | 10 Times O.D | 20 Times O.D | 1500 | 600 | 1000 | 300 |
14-24 | 9.1 | 102 | ||||||
26-48 | 10.3 | 123 | ||||||
50-60 | 10.8 | 136 | ||||||
62-72 | 11.3 | 146 | ||||||
74-96 | 12.3 | 169 | ||||||
98-120 | 13.3 | 191 | ||||||
122-144 | 14.0 | 218 |
Fiber Type | Attenuation (dB/km) | |
1310nm | 1550nm | |
G.652D | ≤0.4 | ≤0.3 |
G.657A | ≤0.4 | ≤0.3 |
Length:2000m/4000m,Or customer standard.
