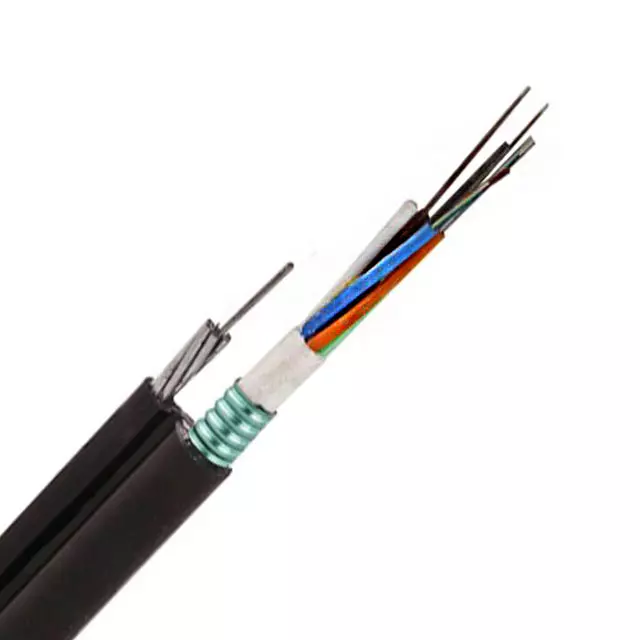

Stranded Loose Tube Figure-8 Self-Supporting Optical Fiber Cable GYTC8S

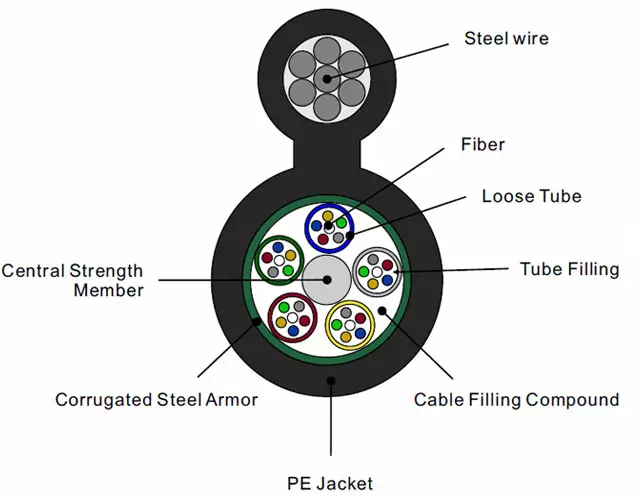

The coated optical fiber is protected by loose tube; With steel stranded wire as messenger wire, and figure 8 cross section.
Availability:
Quantity:
Inquire Add to Basket

  • Easy to install, with the steel stranded wire self -supporting, construction cost saving;

  • Filled with water-blocking gel in every production process; the whole cross section is water resistance.

  • Stable control of cable excess length;

  • The additional attenuation is less than 0.02dB/Km and the dispersion value does not change after cabling;

  • Excellent environmental performance, applicable temperature range from -40℃to +70℃.


  • Long-haul communication, interoffice communication；

  • Suitable for aerial and duct installations in telecommunication, FTTx, and backbone networks.


Structural Parameters

Fiber count

Steel strand specification

Cable O.D(mm)

Messenger  O.D（mm）

cable  height

（mm）

Cable weight

（kg/km）

Minimum Bending Radius（mm）

Tensile Load（N）

Min.Breaking

Tension

(N)

Crush Load (N/100mm)

Static

Dynamic

Short term

Long term

Short term

Long term

2-30

1x7-4.2

9.8

6.4

18.8

210

10

times O.D

20

times O.D

7000

3500

15550

2000

1000

32-36

10.3

19.3

230

38-60

10.7

19.7

230

62-72

11.3

20.3

255

74-96

12.9

21.9

290

98-120

13.8

22.8

342

122-144

15.2

24.2

378

Optical Characteristics

Fiber type

Attenuation（dB/km）

1310nm

1550nm

G.652D

≤0.4

≤0.3

G.657A

≤0.4

≤0.3

Delivery length

Length：2000m/4000m，or customer standard.
