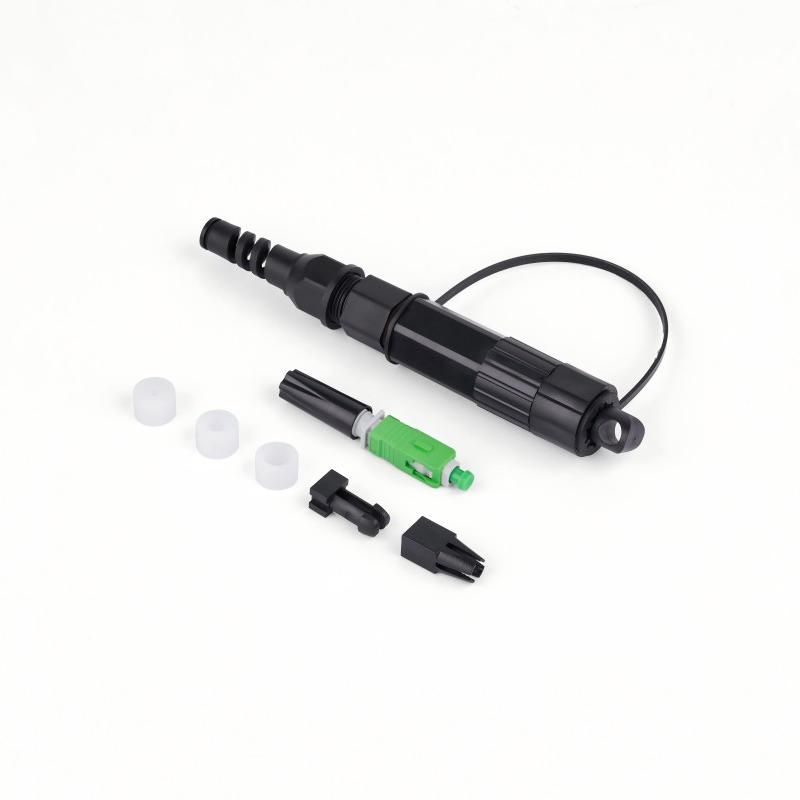

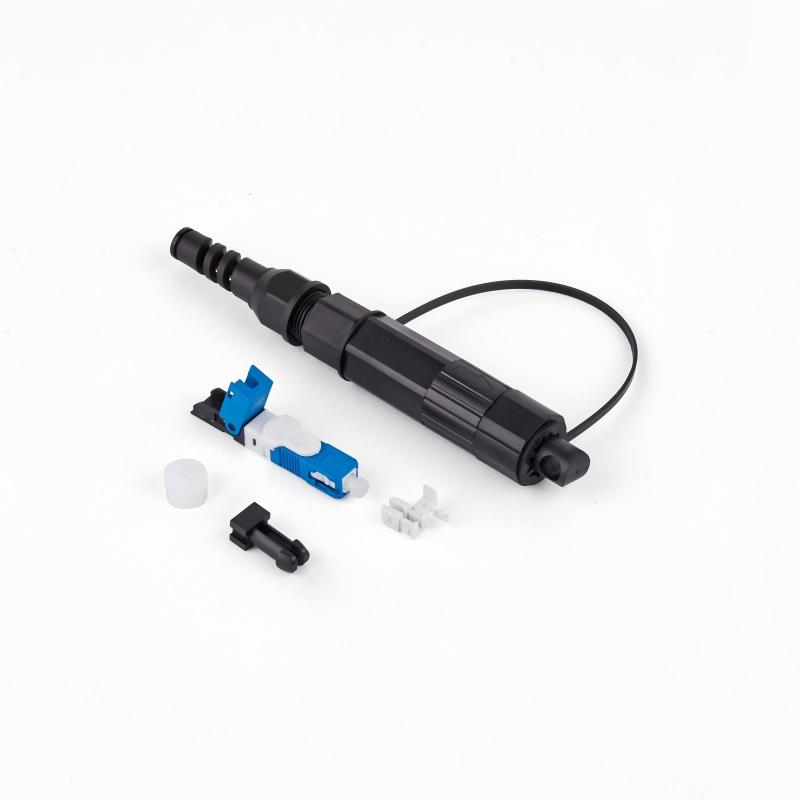

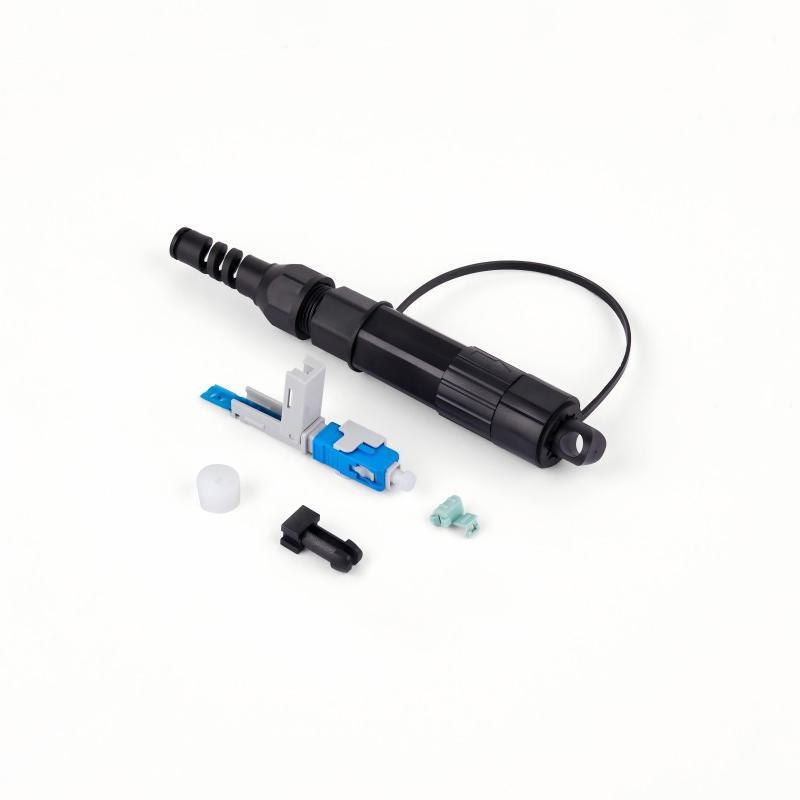

Field Installable Fast Waterproof Connector

Mini IP SC Series Field Installable Fast Waterproof Connector is a new design outdoor waterproof fiber optical connector compatible with HW Mini SC connector /adapter . It’s mainly used for FTTH outdoor installation . It’s small and easy to be installed with IP68 grade . Mini SC fast connector is an excellent solutions with HW Device and do not need terminated the connector in laboratory . It can bot field assembled very easy to save time and short the project time.

Availability:

Quantity:



Inquire Add to Basket

Cost effective solution for in house termination;
Low insertion loss and added loss;
Height of attenuation;
IP68 water, dust proof and corrosion resistant;
Mechanical performance: IEC 61754-4 standard;
ROHS and REACH materials compliant;
Cable diameter Range:FTTH Drop cable 2.0* 1.6mm/ 2.0*3.0mm/2.0*5.0mm ,Round cable 5.0mm/3.0mm/2.0mm.

Fiber Optic Cable Optical Patchcord Optical Distribution Box Date Center Solution Passive Components

Related Products

FTTA CPRI Outdoor Cable Assemblies

NSN Boot Duplex LC Patch Cable

PDLC Outdoor Cable Assembly

Pre Connectorized Mini-SC Outdoor Cable Assembly

Pre Connectorized Opti-Tap Outdoor Cable Assembly

Category	Specification
Cable Scope	2* 1.6mm/23.0mm /2.05.0mm flat drop cable, 5.0mm/3.0mm/2.0mm round cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	Single mode or Multi mode
Operation Time	about 15s(exclude fiber presetting)
Working wavelength	1310 nm, 1490 nm, 1550 nm
Insertion Loss	AVG≤ 0.3dB, MAX≤ 0.5dB( 1310nm & 1490nm& 1550nm)
Return Loss	≥ 50dB for UPC, ≥ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor,once each direction, three times total)	IL ≤ 0.3dB

Category	Specification
Cable Scope	2* 1.6mm/23.0mm /2.05.0mm flat drop cable, 5.0mm/3.0mm/2.0mm round cable
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	Single mode or Multi mode
Operation Time	about 15s(exclude fiber presetting)
Working wavelength	1310 nm, 1490 nm, 1550 nm
Insertion Loss	AVG≤ 0.3dB, MAX≤ 0.5dB( 1310nm & 1490nm& 1550nm)
Return Loss	≥ 50dB for UPC, ≥ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor,once each direction, three times total)	IL ≤ 0.3dB
