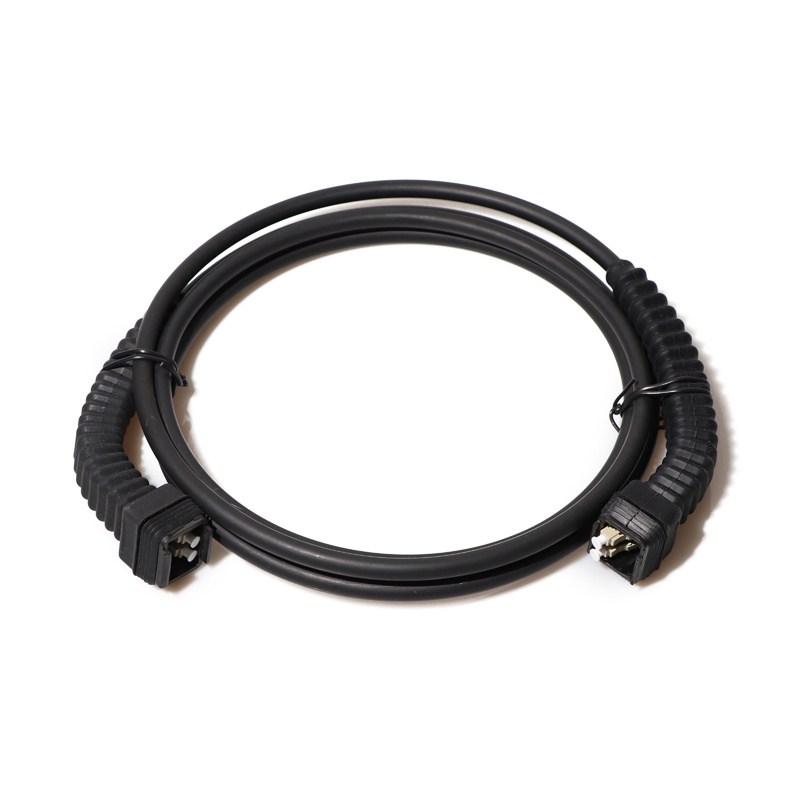

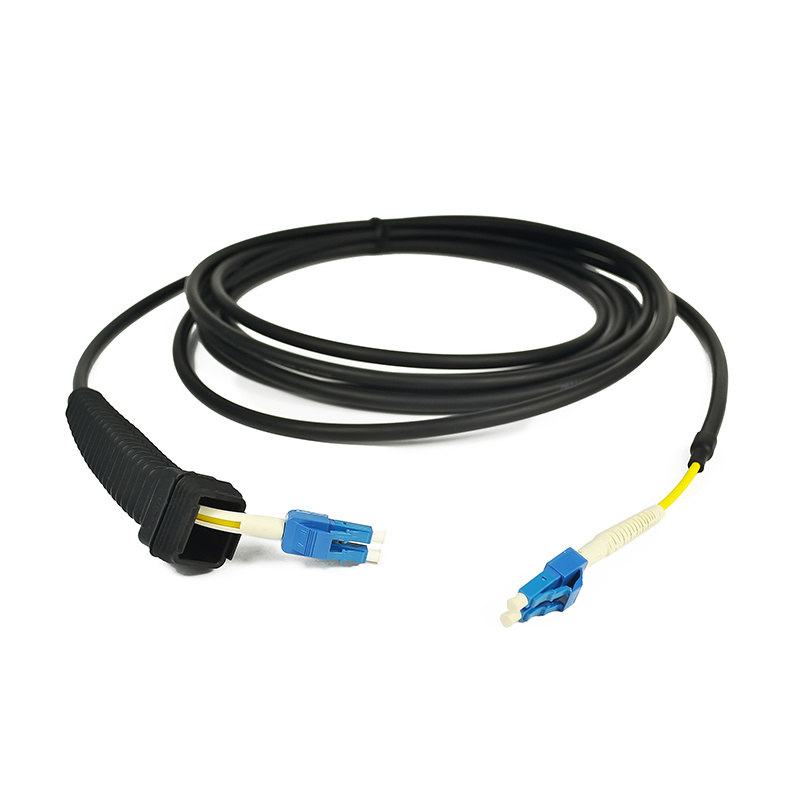

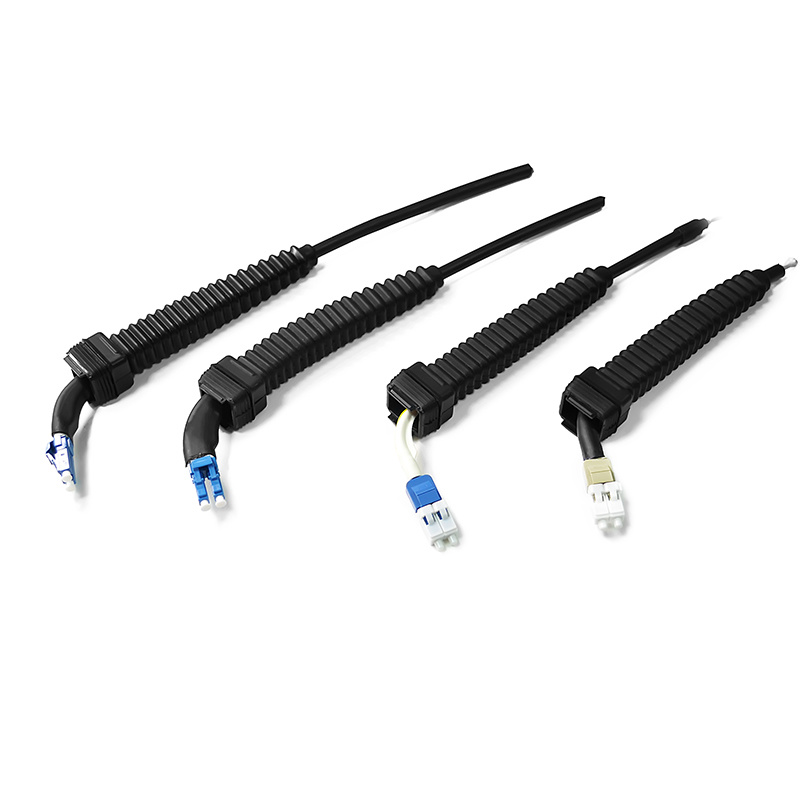

NSN Boot Duplex LC Patch Cable

NSN Boot CPRI Optic Patch Cord cable with flexible boots is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Compatible with Nokia's waterproof connector for latest and next-generation mobile communication systems. Especially in the 3G, 4G,5G Base station (BBU to RRU).
Availability:
Quantity:
  • IP67 water and dust protection;

  • Capacity 1 to 3 fiber pairs, LC connector or vendor specified connector;

  • Corrugated steel armor or non armor;

  • Outer sheath of UV resistant;

  • Temperature range -40℃to +85℃.


  • FTTH;

  • For connection between distribution box and RRH;

  • Outdoor Areas;

  • Harsh Environment.

Item

Parameter

Connector type

NSN Boot Duplex LC

Cable diameter

5.0mm 、7.0mm round cable

Connector insertion loss (dB)

≤0.3

Connector return loss (dB)

≥ 50dB (UPC) ,≥ 60dB (APC)

Cable pull

120N, IEC 61300

Waterproof

IP67

Working temperature

-40℃~85℃

Storage Temperature

-40℃~85℃
