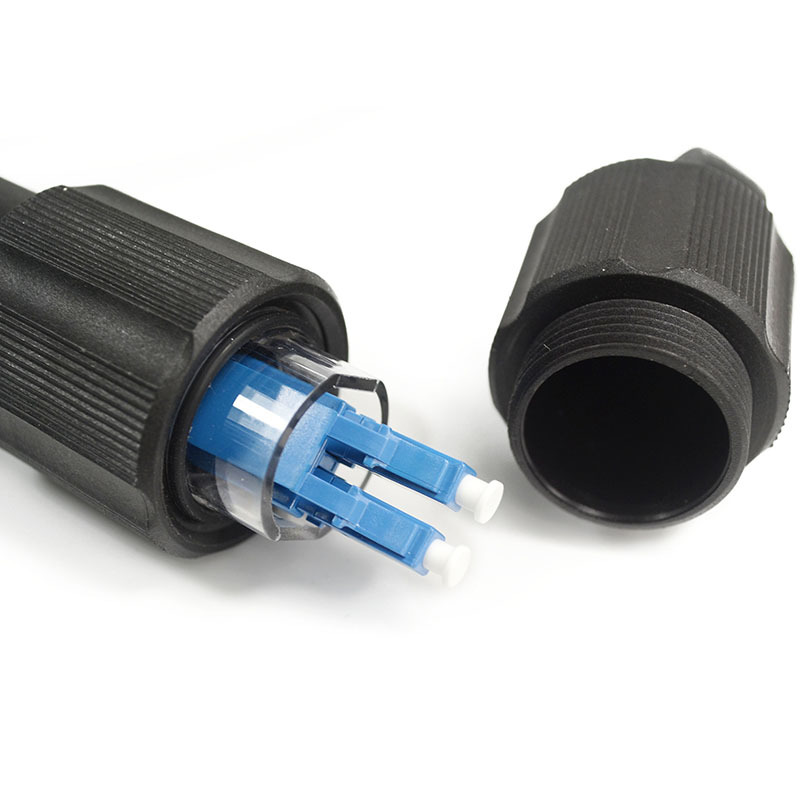

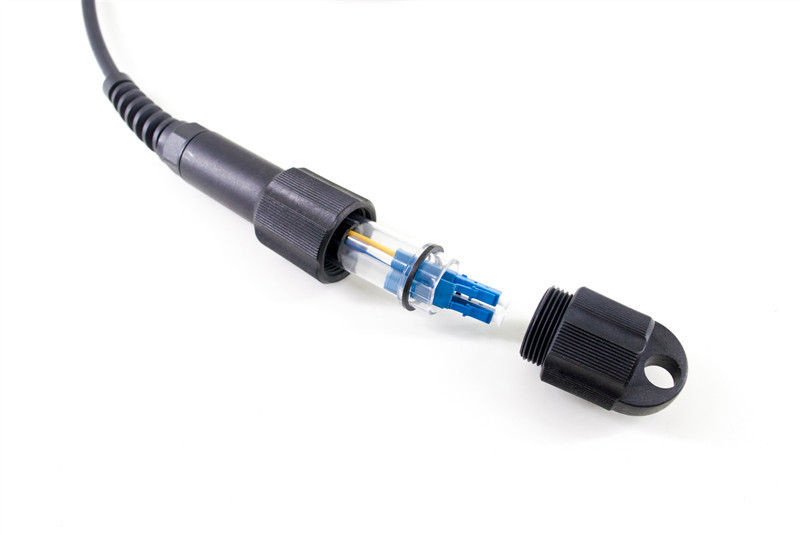

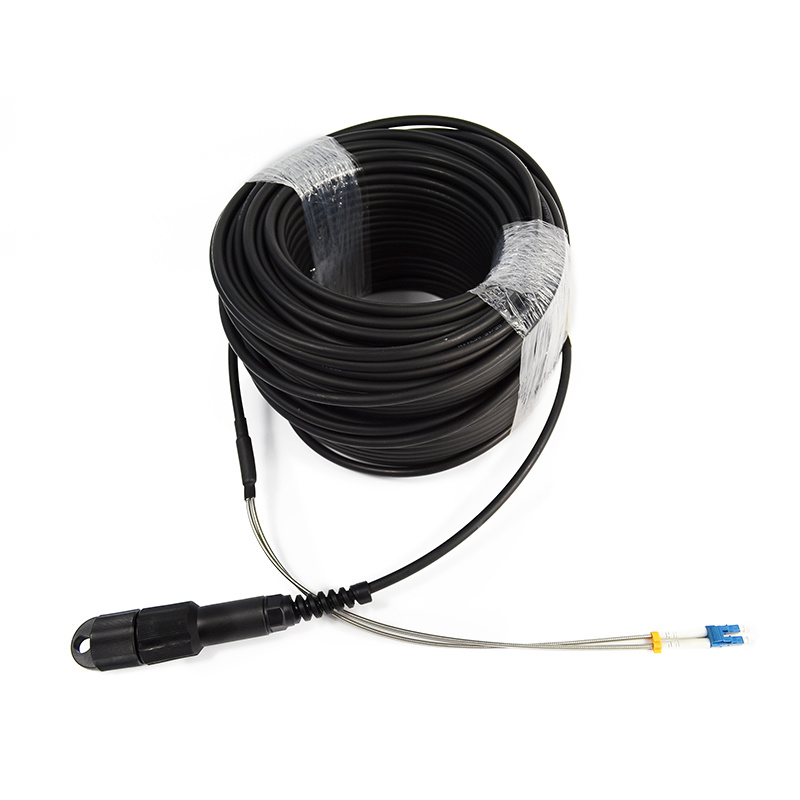

PDLC Outdoor Cable Assembly

PDLC connectors and required optical cables have become standard interface applications for 4G, 5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.
Availability:
Quantity:
  • Standard Duplex LC connector, low IL, high RL;

  • IP68 protection, salt-mist proof, humidity proof,dust proof;

  • Easy Operation, reliable and cost-effective Installation;

  • 100% optically tested to ensure quality performance assemblies.


  • FTTH;

  • For connection between distribution box and RRH;

  • Outdoor Areas;

  • Harsh Environment.

Item

Parameter

Connector type

PDLC、Duplex LC

Cable diameter

5.0mm 、7.0mm round cable

Connector insertion loss (dB)

≤0.3

Connector return loss (dB)

≥ 50dB (UPC) ,≥ 60dB (APC)

Cable pull

120N, IEC 61300

Waterproof

IP68

Working temperature

-40℃~85℃

Storage Temperature

-40℃~85℃
