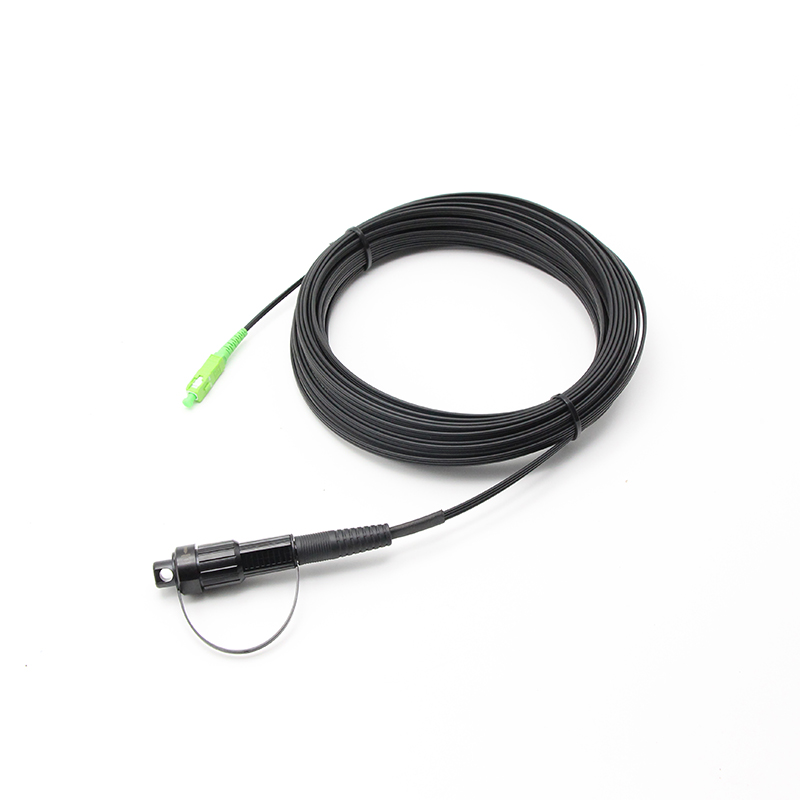

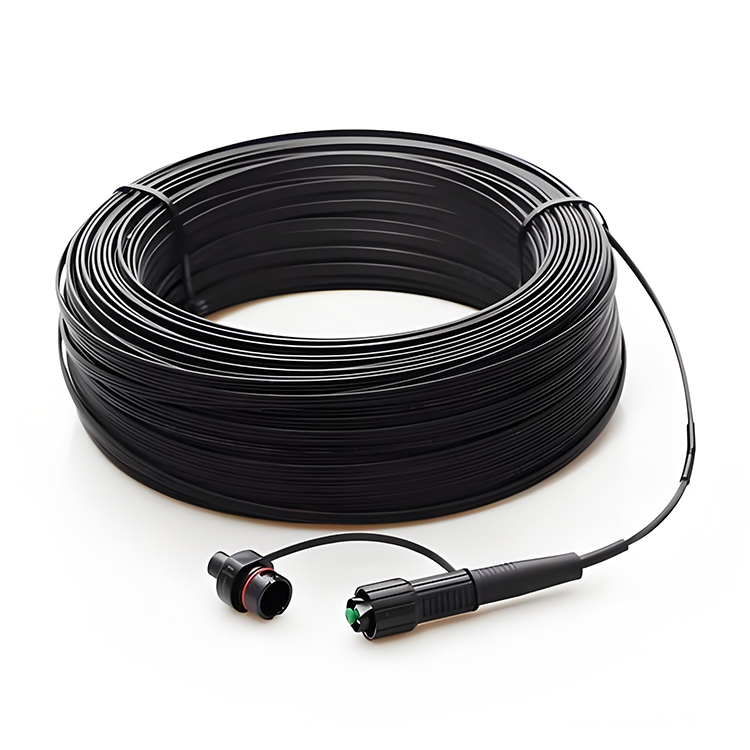

Pre Connectorized Mini-SC Outdoor Cable Assembly

Mini-SC connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Availability:
Quantity:
  • Compatible with Corning-Mini-SC Connector;

  • Cable length 50m, 100m, 150m, 200m, 250m or customized;

  • Factory terminated for high performance;

  • Available with one or both ends connectorized;

  • Hybrid (one end with an Mini-SC Connector, one end with standard SC connector) available with or without pulling grip;

  • Available in dielectric or toneable;

  • Designed for aerial, direct-buried or duct installation;

  • IP68 water and dust protection ;

  • -40℃~85℃  operating temperature.

  • FTTH;

  • For connection between distribution box and RRH;

  • Outdoor Areas;

  • Harsh Environment.

Item

Parameter

Connector type

SC/APC Mini-SC connector

Cable diameter

3.0mm\5.0mm round cable or 2.0*5.0mm flat cable

Connector insertion loss (dB)

≤0.3

Connector return loss (dB)

≥ 50 (UPC) ,≥ 60 (APC)

Cable pull

120N, IEC 61300

Waterproof

IP68

Working temperature

-40℃~85℃

Storage Temperature

-40℃~85℃
