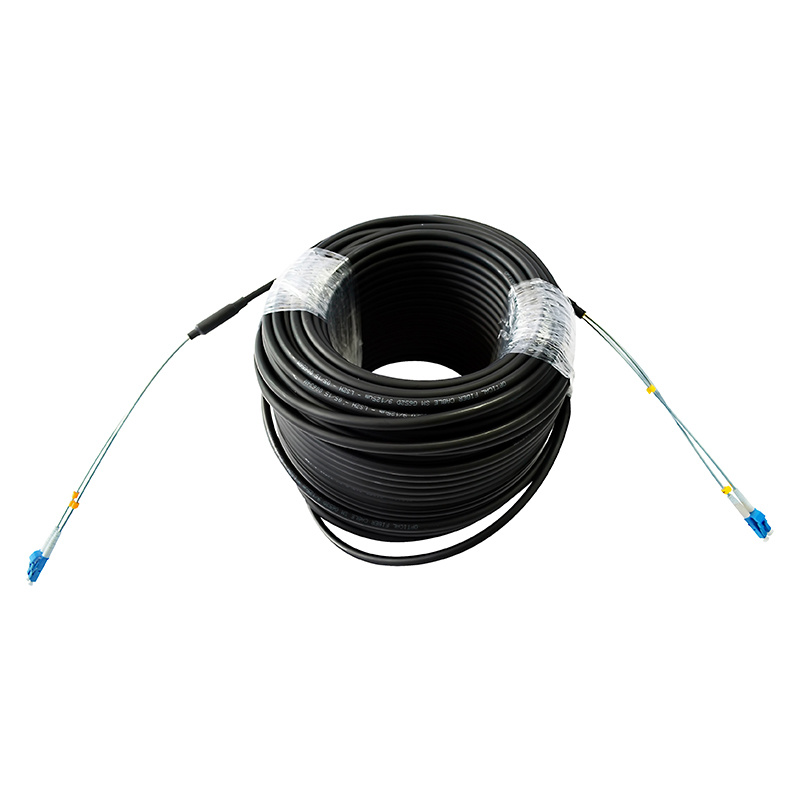

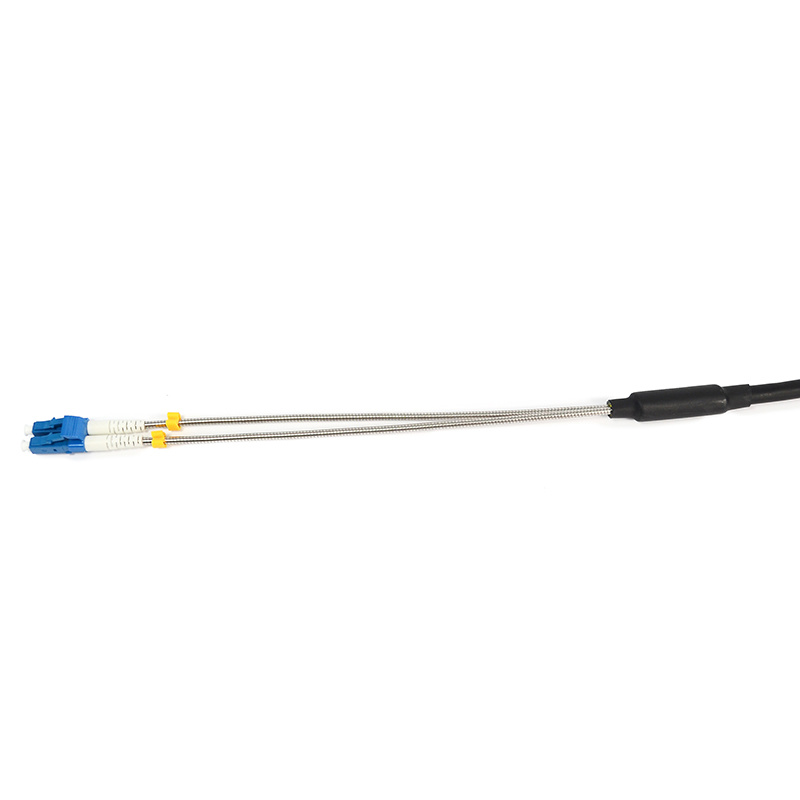

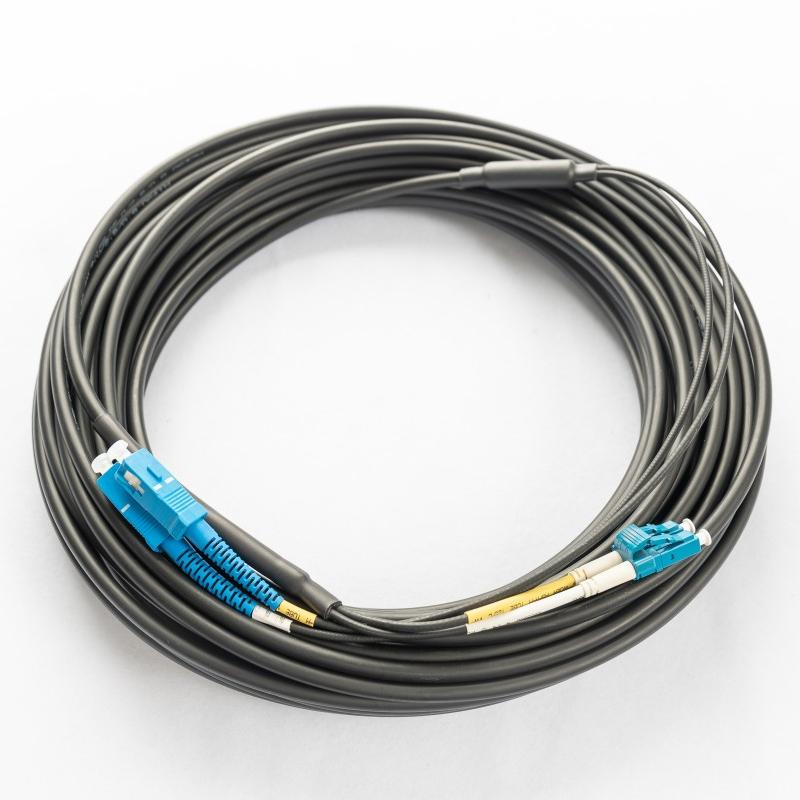

FTTA CPRI Outdoor Cable Assemblies

CPRI stands for Common Public Radio Interface, used to carry data between cell sites and base stations. CPRI fiber patch cable is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G, Base station (BBU to RRU). CPRI fiber patch cable are rapidly becoming the standard connector interface.
Availability:
Quantity:
  • Easily add/install jumper cables for a future expansion;

  • Factory-assembled cables for a fast on-site installation;

  • Flexibility with small bending radius and excellent cable routing properties;

  • Equipped with customer specific power and fiber-optic connectors.


  • For connection between distribution box and RRH;

  • Multi-purpose Outdoor;

  • Deployment in Remote Radio Head cell tower applications.

Item

Parameter

Connector type

Duplex LC

Cable diameter

5.0mm 、7.0mm round cable

Connector insertion loss (dB)

≤0.3

Connector return loss (dB)

≥ 50dB (UPC) ,≥ 60dB (APC)

Cable pull

80N, IEC 61300

Waterproof

/

Working temperature

-40℃~85℃

Storage Temperature

-40℃~85℃
