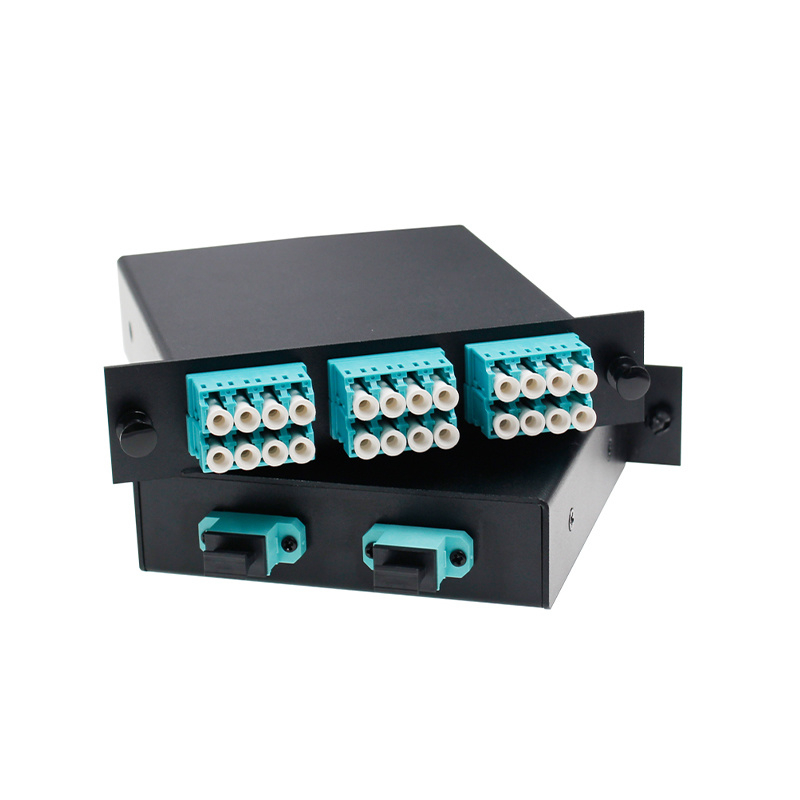

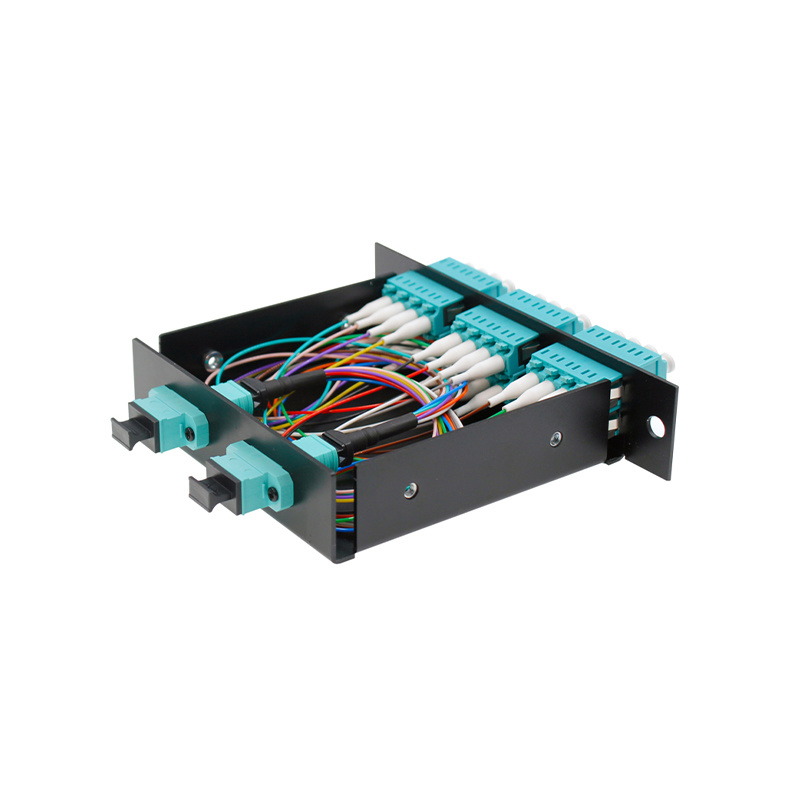

MPO/MTP Cassette

MPO / MTPCassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.
Availability:
Quantity:
  • 19-inch standard size, fit for 19-inch rack, 23-inch size is available on request;

  • Standard size is 1U, 2U, or 4U are available on request;

  • 12, 24, 48, 96Port optional;

  • Suitable for LC ,SC, FC, adapter, duplex and simplex are both available;

  • Smart design to supply firm protect for optic cable terminal connection and optic fiber adapter installation;

  • Provide termination, protection, connection, management of fiber optic cable;

  • RoHS compliant;

  • Black or White color.


  • Data communication network;

  • Optical System Access network;

  • Storage area networking fiber channel;

  • High density architectures.


Item

MPO/MTP Cassette

Insertion loss

PC<0.75 dB

Return loss

PC>25 dB

Insert-pull test

(500 times)<0.3 dB

Operation temperature

- 40℃ ~ +80℃

Anti-tensile force

15kgf
