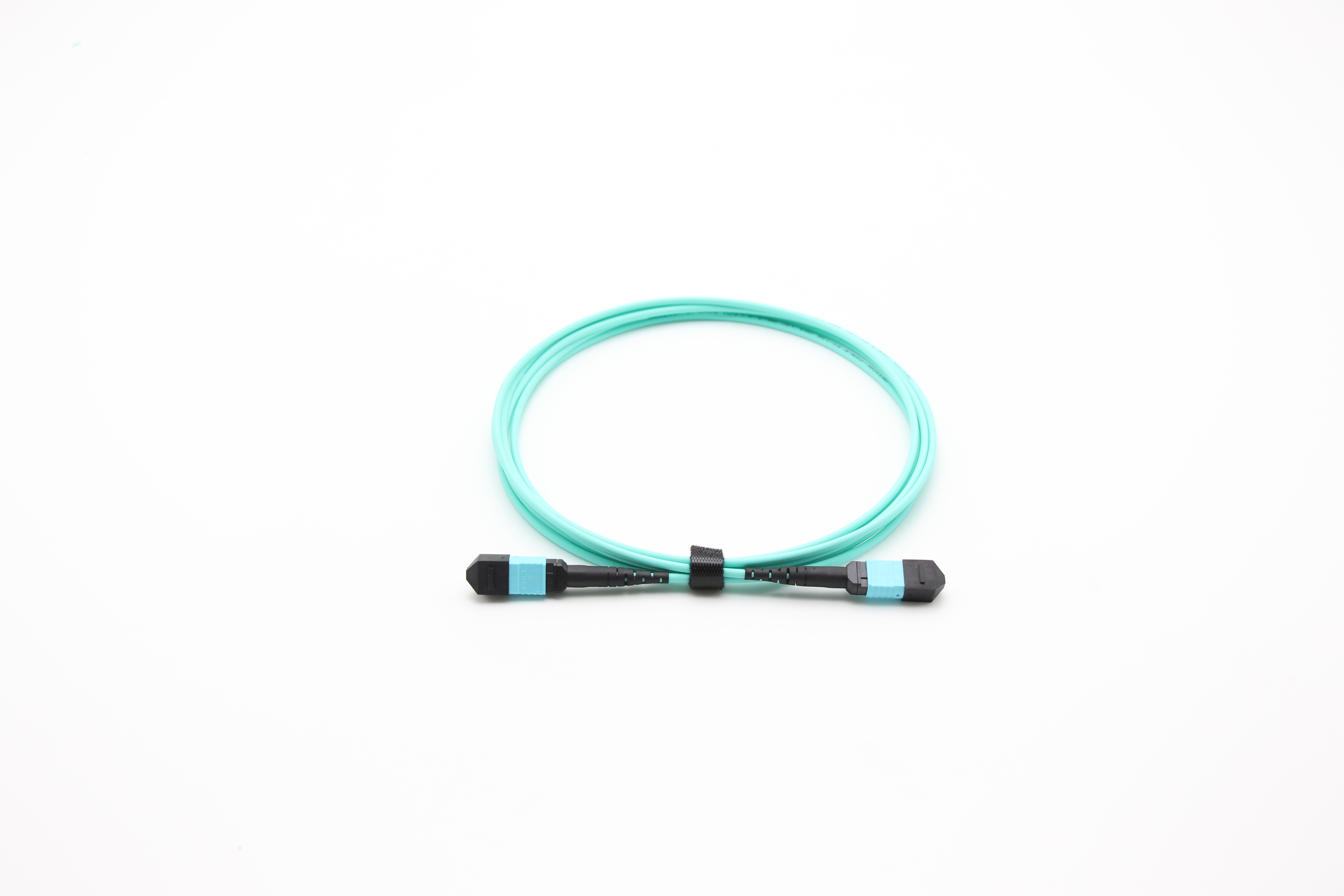

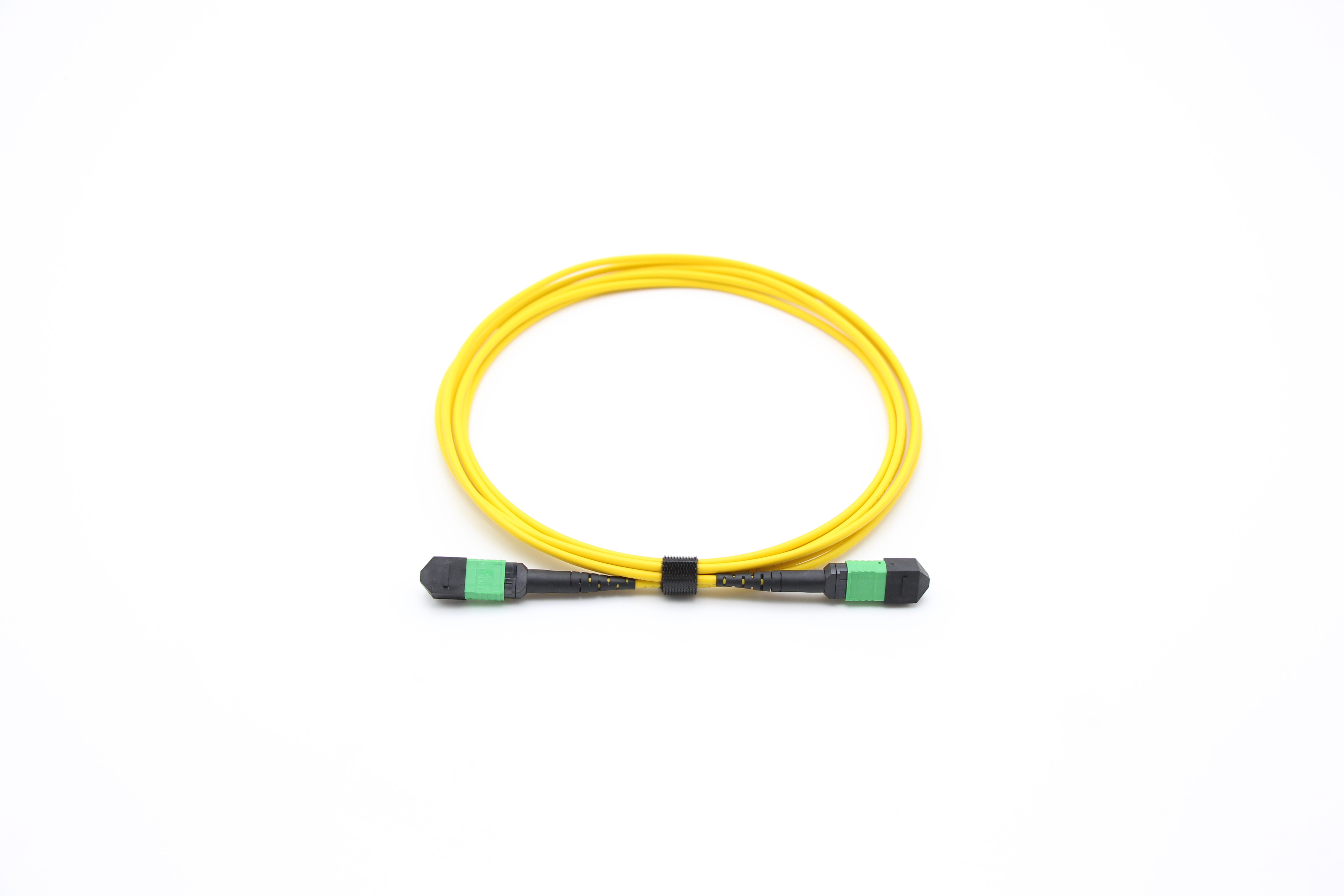

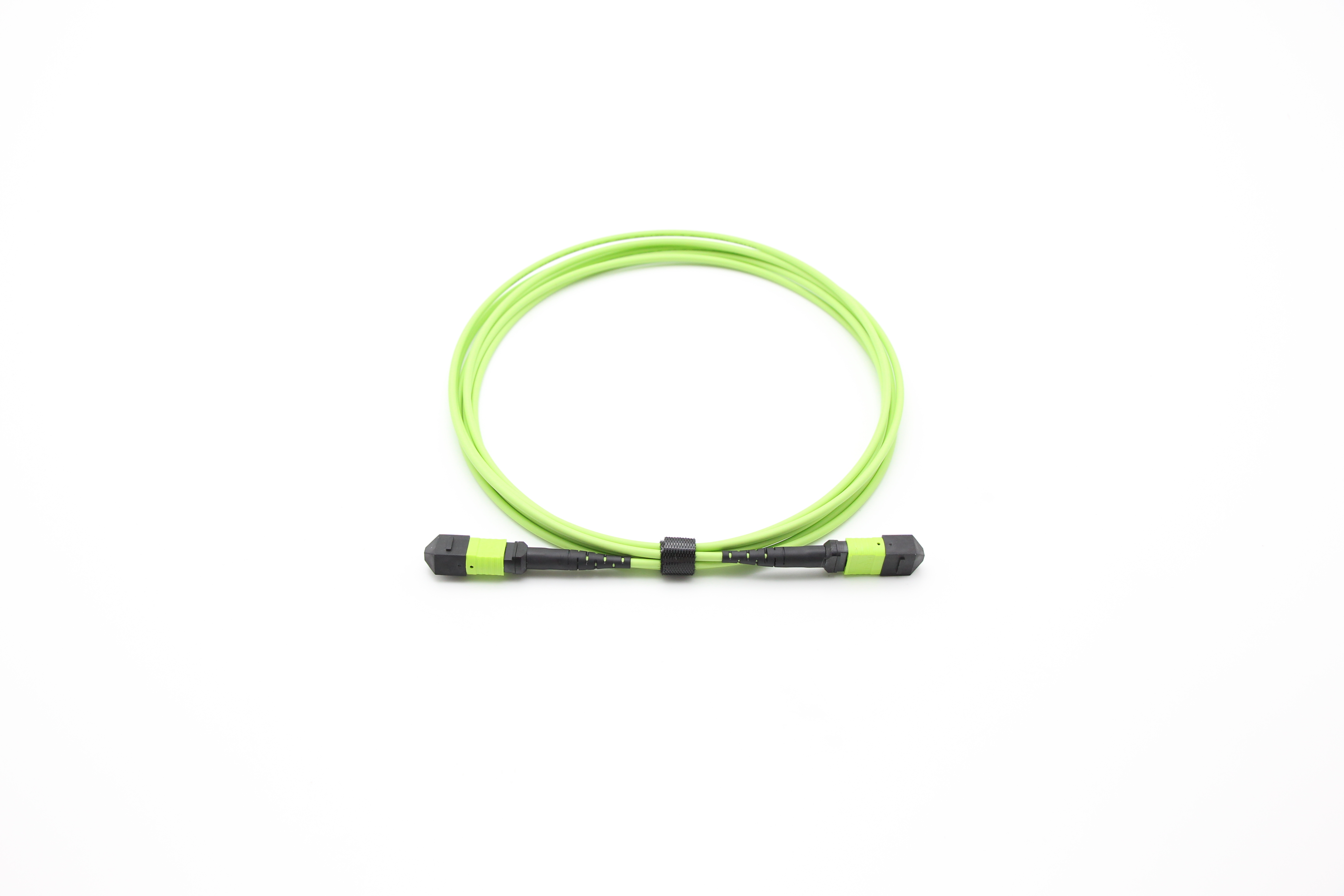

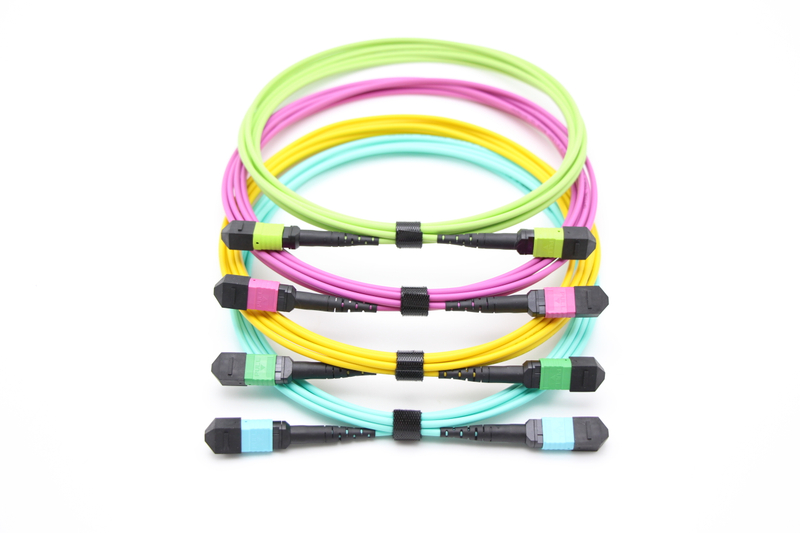

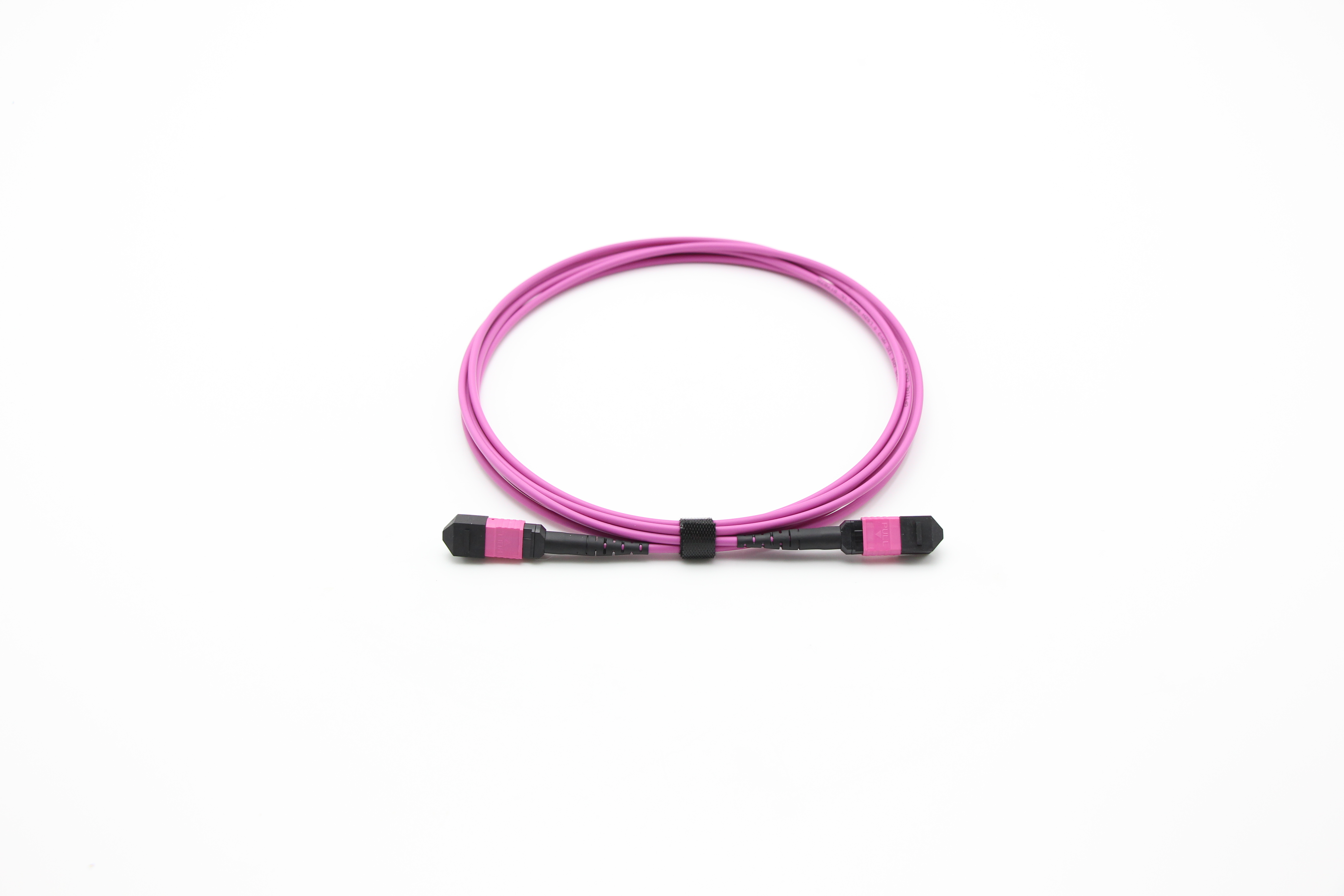

MPO/MTP Fiber Optic Parch Cord

MTP/MPO patch cords are generally used to support parallel optical communications and are available as either 12 or 24 fibre configurations. Due to transmission equipment containing male MTP/MPO ports, the MTP/MPO patch cords contain a female MTP/MPO connector at the transmission equipment end to ensure correct mating. The opposite end can be provided with either female or male MTP/MPO connectors, depending on the connectivity method. 0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications.
Availability:
Quantity:
  • MPO/MTP Interface - MPO/MTP components feature superior optical and mechanical properties;

  • Optimised Performance - Low loss MPO/MTP Elite, discrete Premium (LC.SC mainly) connectors and OM4 fibre assures low insertion losses and power penalties in tight power, budget high speed network environment;

  • High Density - Multifibre connector and compact dimension of ruggedised MicroCable ease space in costly data centre environments;

  • Rapid Deployment - Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes;

  • Reliability - 100% tested - Combination of high quality components and manufacturing quality control guarantees product to the highest standard;

  • Next Generation Network Proof - Emerging high speed protocol are going to use MPO/MTP interface.


  • Data communication network;

  • Optical System Access network;

  • Storage area networking fiber channel;

  • High density architectures.


Connector A

MPO/MTP Female

Connector B

MPO/MTP Female

Fiber Mode

G652D, G.657A, OM3, OM4 ,OM5

Wavelength

850/1310 nm

Typical Insertion Loss(Elite)

≤ 0.35 dB

Typical Insertion Loss

≤ 0.70 dB

Max Insertion Loss(Elite)

≤ 0.75 dB

Durability(500 Mating Times)

△IL≤ 0.75 dB

Cable Jacket

LSZH or PVC

Fiber Count

8,12,24 fiber

Cable Type

Round cable&Ribbon cable

Jacket OD

3.0mm&2.0mm*5.0mm

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 85°C
