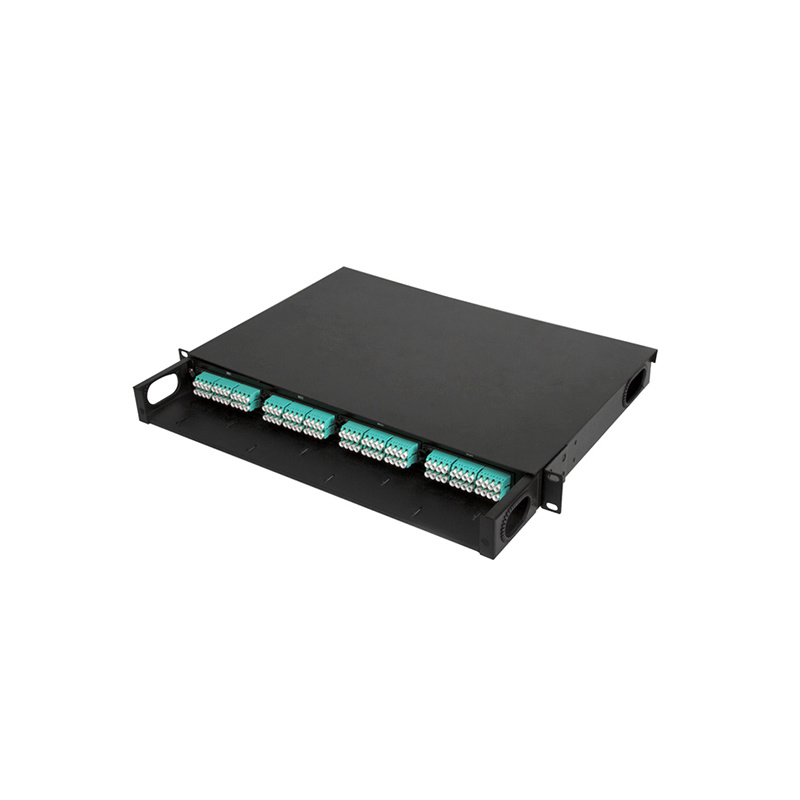

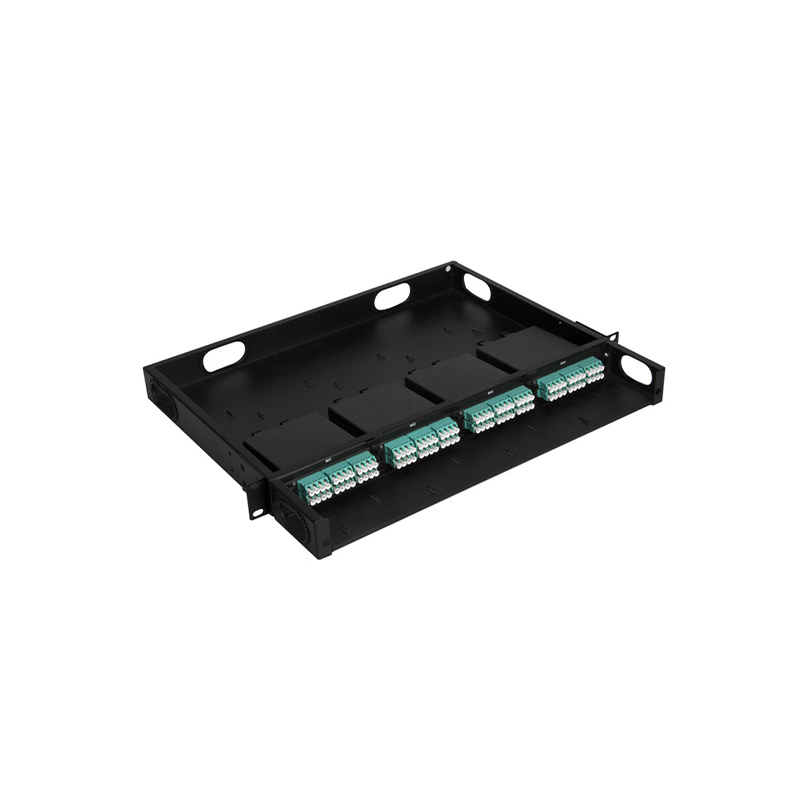

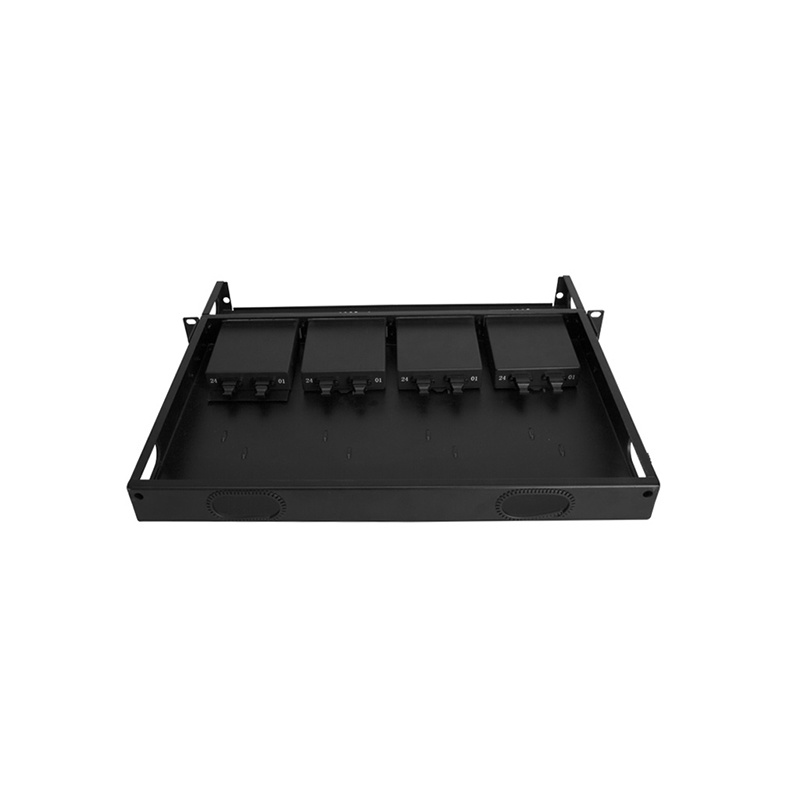

MPO/MTP Patch Panel

MPO/MTP patch panel is a high density panel which is specially designed to accommodate high density cabling solution in Data Center and Telecommunication central office. MPO/MTP patch panel supports maximum 4xMPO/MTP cassettes in 1U,8 x cassettes in 2U and 16 cassettes in 4U.Each MPO/MTP Cassette vailable in 12 or 24xLC connectors,which provides max.96 ports in 1U,192 ports in 2U and 384 port sin 4U (LC).
Availability:
Quantity:
  • Suitable for 19 inch standard frame;

  • Suitable for ribbon and single fiber;

  • Compact design for space saving;

  • Front mark on the plate is easy for identification and operation;

  • Standard size, light weight and reasonable structure.  Easy for management and operation.  Modular design, which can be used in multiple module boxes and configured in MPO/MTP-LC Type Distribution Box;

  • The MPO/MTP ribbon multi-core fiber is divided into multiple lc interfaces to realize parallel conversion of MPO/MTP-LC.

  • Data communication network;

  • Fiber Optic Transmission System;

  • CATV Networks;

  • Local Area Network;

  • Testing/Measurement Instruments.

Model

MPO/MTP-LC Type Cassette Quantity

Height

Dimension(LxWxH)

MPO/MTP-LC

4

1U


482mmx350mmx44.5mm


MPO/MTP-LC


8

2U

482mmx350mmx88.9mm


MPO/MTP-LC


16

4U

482mmx350mmx177.8mm
