Availability: | |
---|---|
Quantity: | |

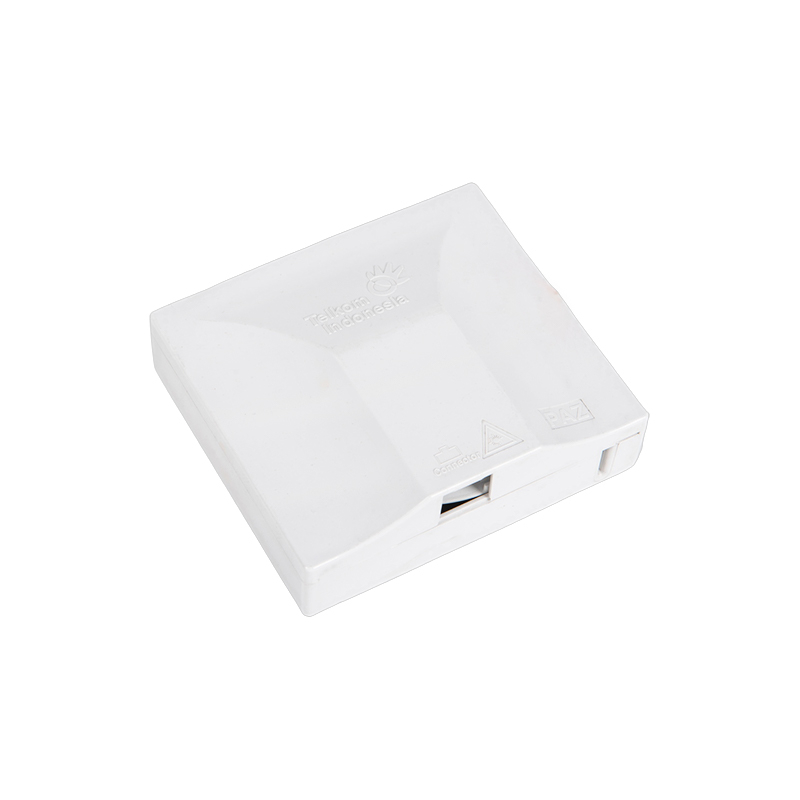

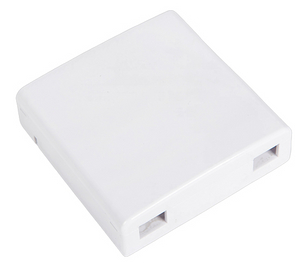

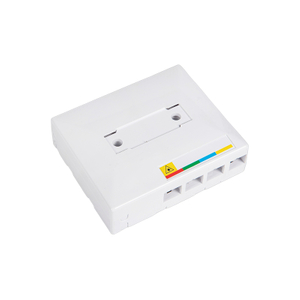

1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、

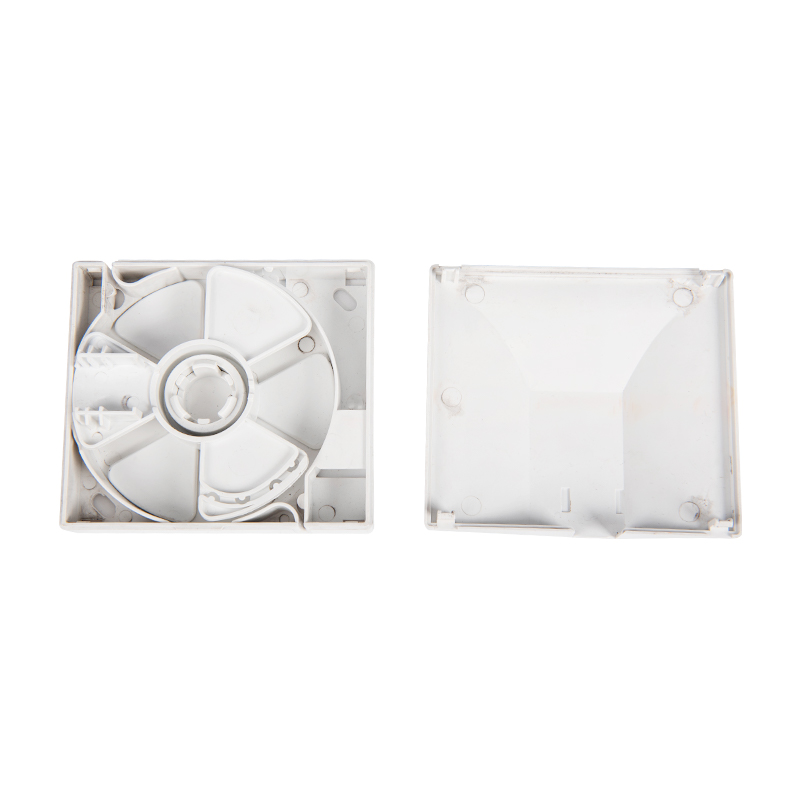

3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

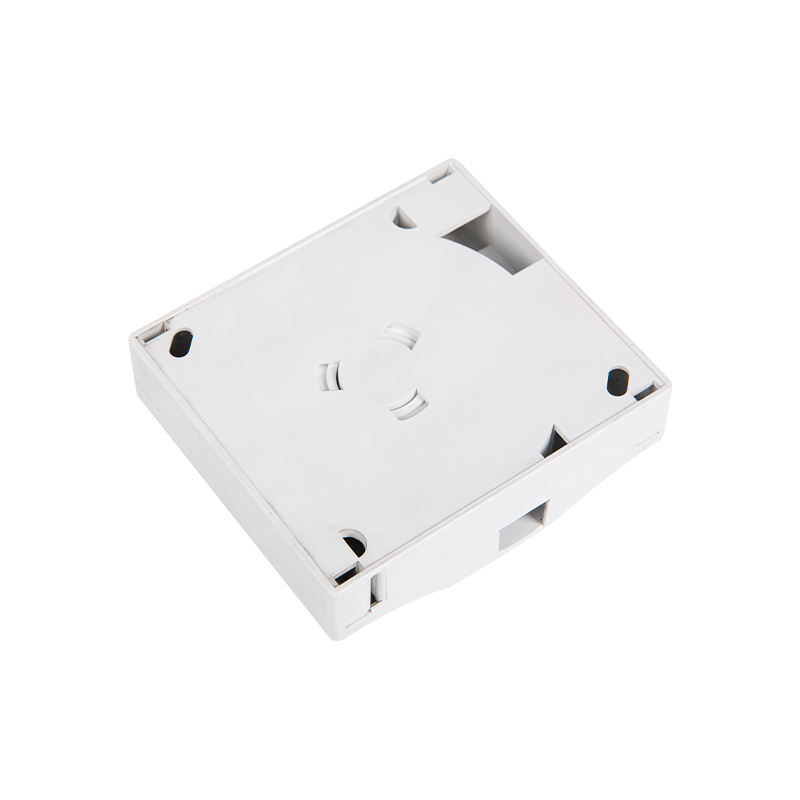

6 、 Box can be installed by the way of wall-mounted,suitable for both indoor uses.
1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted,suitable for both indoor uses.
Configuration
Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
Strengthen ABS | A*B*C(mm) 94*85*30 | Splice 1 Fibers (1trays,1 core/tray) | \ | 1 pcs of SC(max) | 0.10kg | 1 ports |
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable

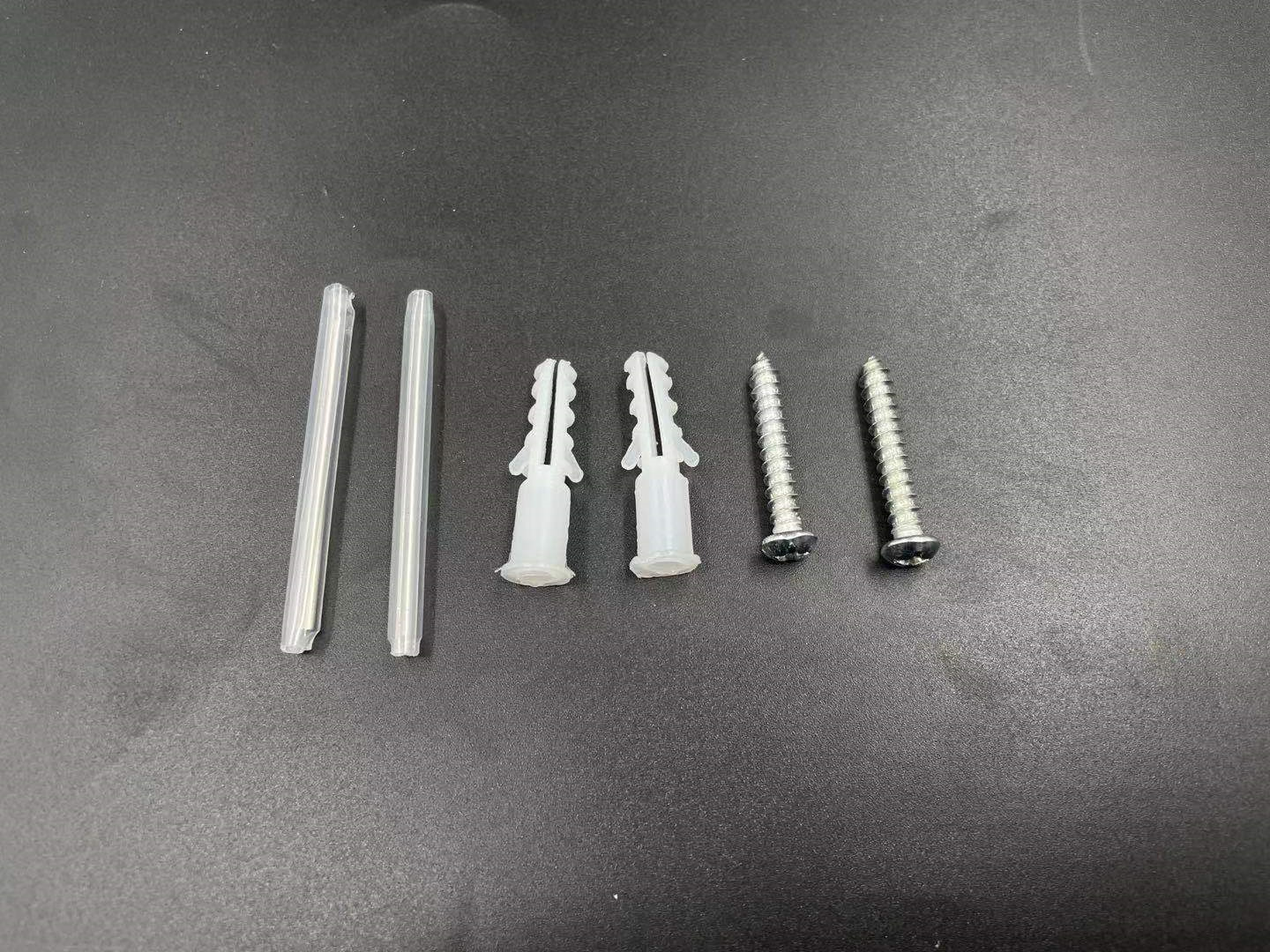

Standard Accessories
Screw: 1pcs
Expension bolt: 1pcs
Heat-shrink sleeve: 1pcs
Configuration
Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
Strengthen ABS | A*B*C(mm) 94*85*30 | Splice 1 Fibers (1trays,1 core/tray) | \ | 1 pcs of SC(max) | 0.10kg | 1 ports |
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
Screw: 1pcs
Expension bolt: 1pcs
Heat-shrink sleeve: 1pcs
