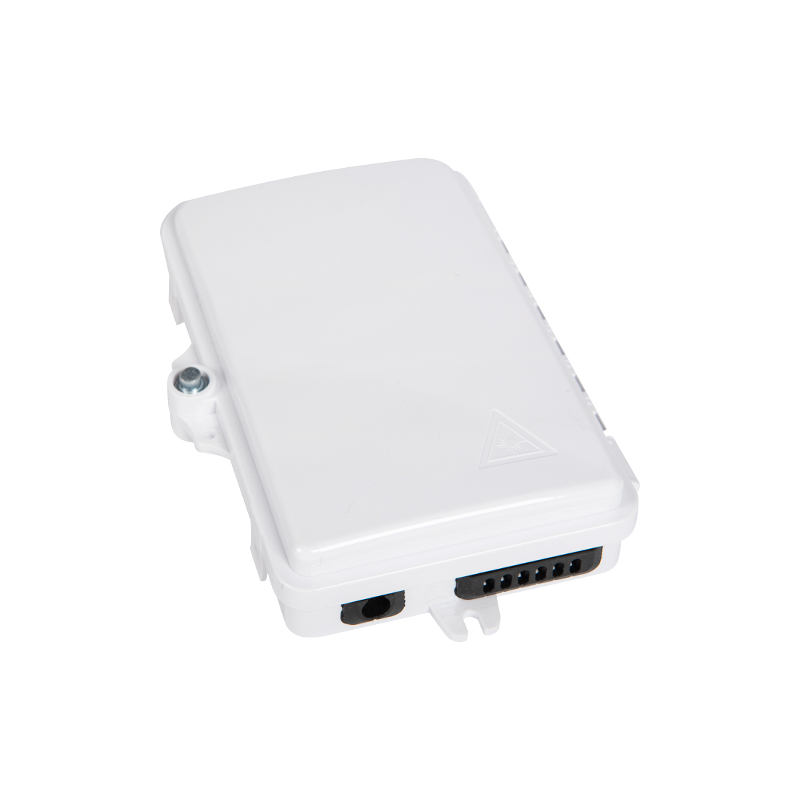

1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.

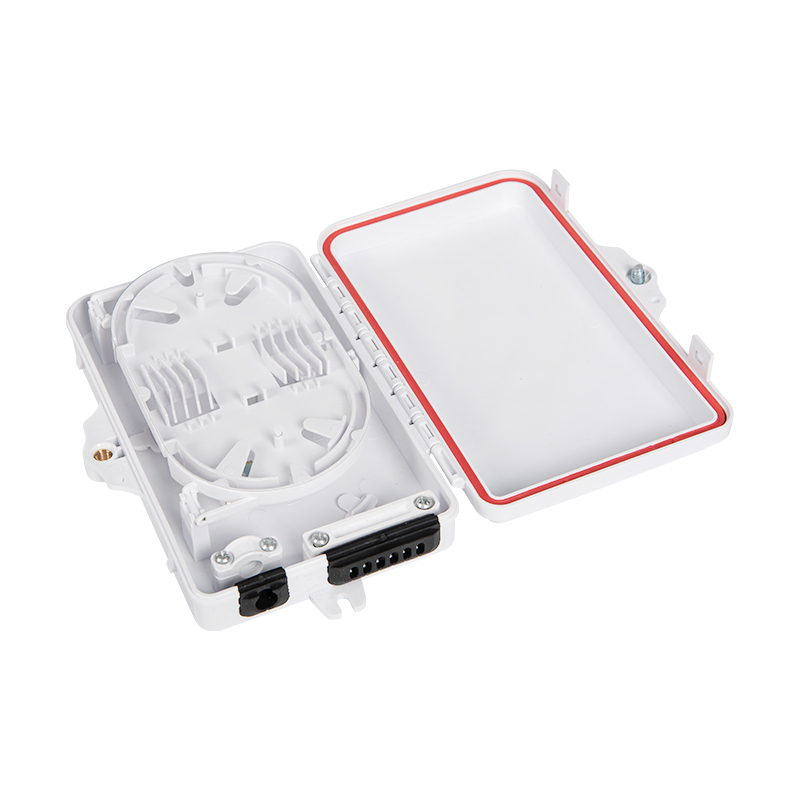

4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

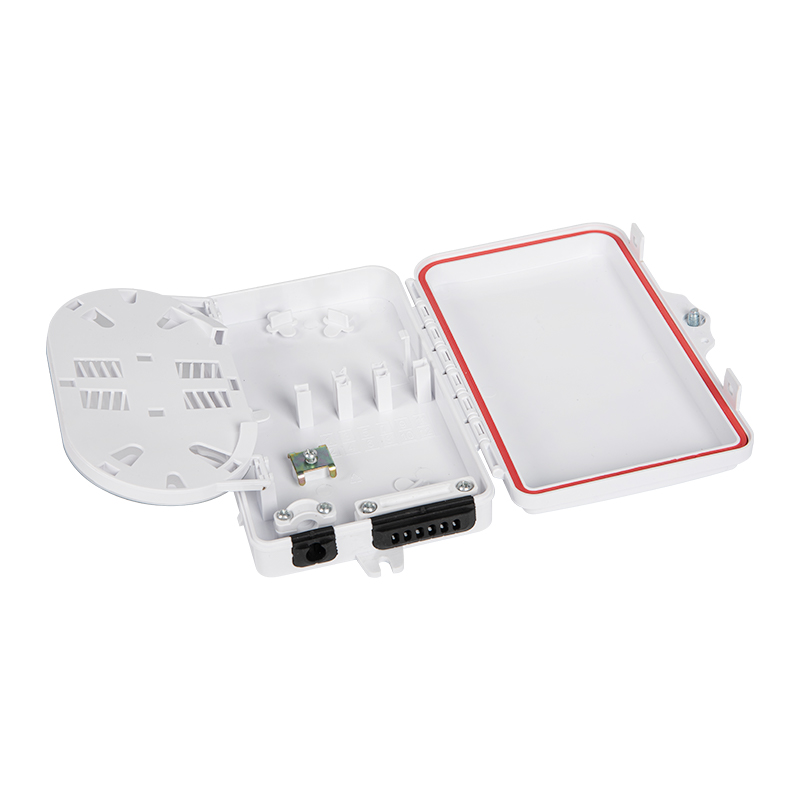

5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

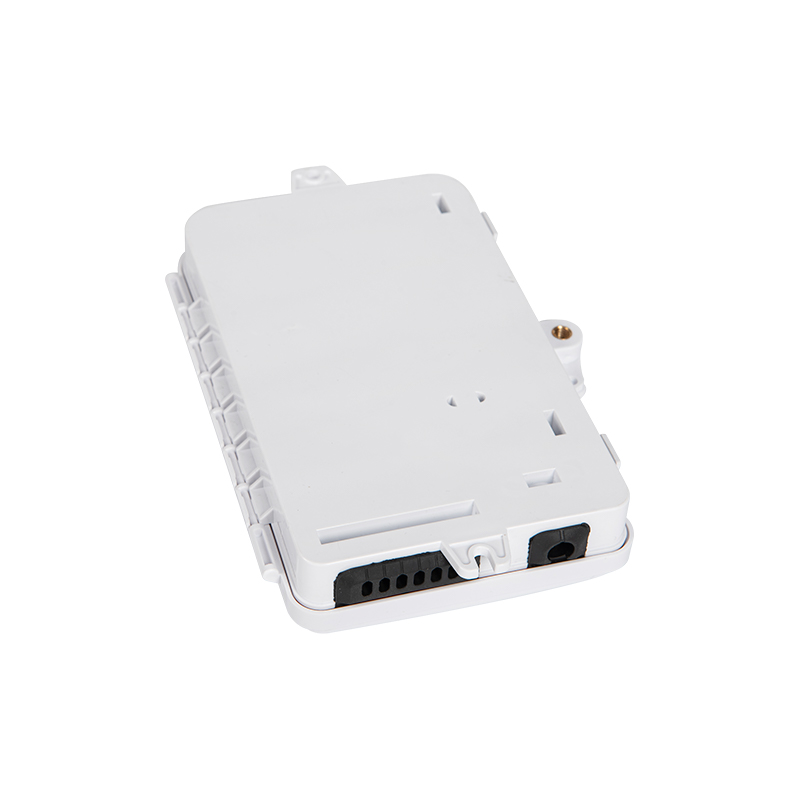

6 、 Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
Configuration
Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
Strengthen ABS | A*B*C(mm) 205*140*40 | Splice 6 Fibers (1trays,6 core/tray) | PLC Splitter 1pcs of 1x4 | 6 pcs of SC(max) | 0.24kg | 6 ports |
Applications
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable

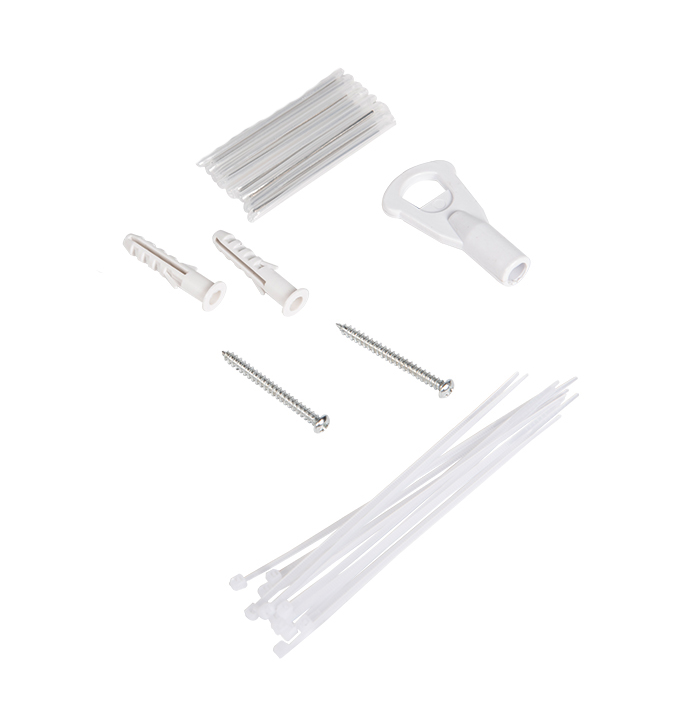

Standard Accessories
Screw: 4pcs
Expension bolt: 4pcs
Heat-shrink sleeve: 6pcs
Configuration
Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
Strengthen ABS | A*B*C(mm) 205*140*40 | Splice 6 Fibers (1trays,6 core/tray) | PLC Splitter 1pcs of 1x4 | 6 pcs of SC(max) | 0.24kg | 6 ports |
Applications
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
Screw: 4pcs
Expension bolt: 4pcs
Heat-shrink sleeve: 6pcs
