Each box can be fully assembled to reduce the need for opening and opening the field in the field.
Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.
Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network.

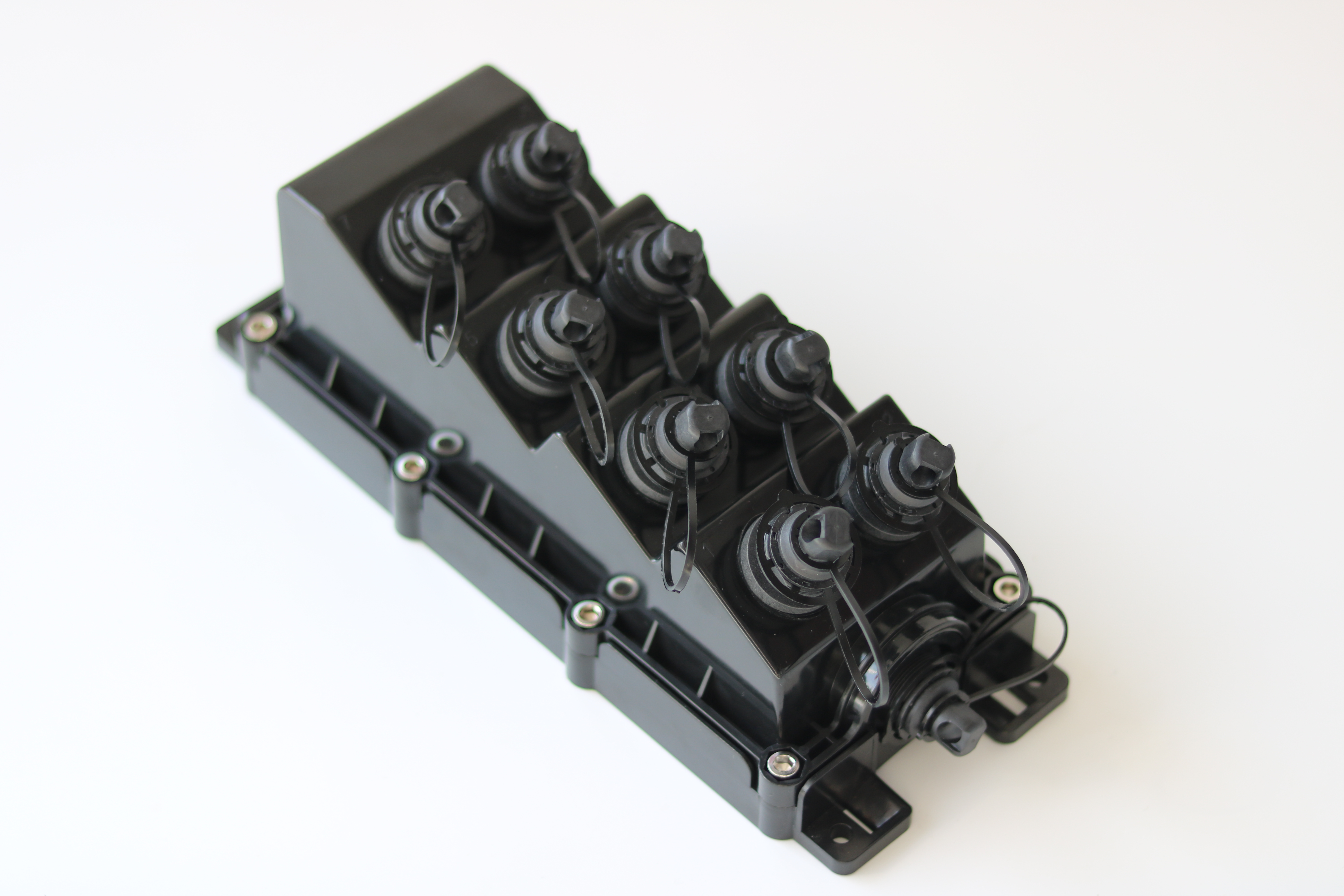

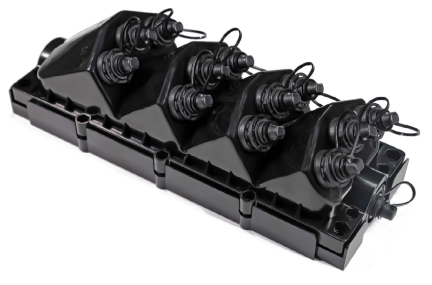

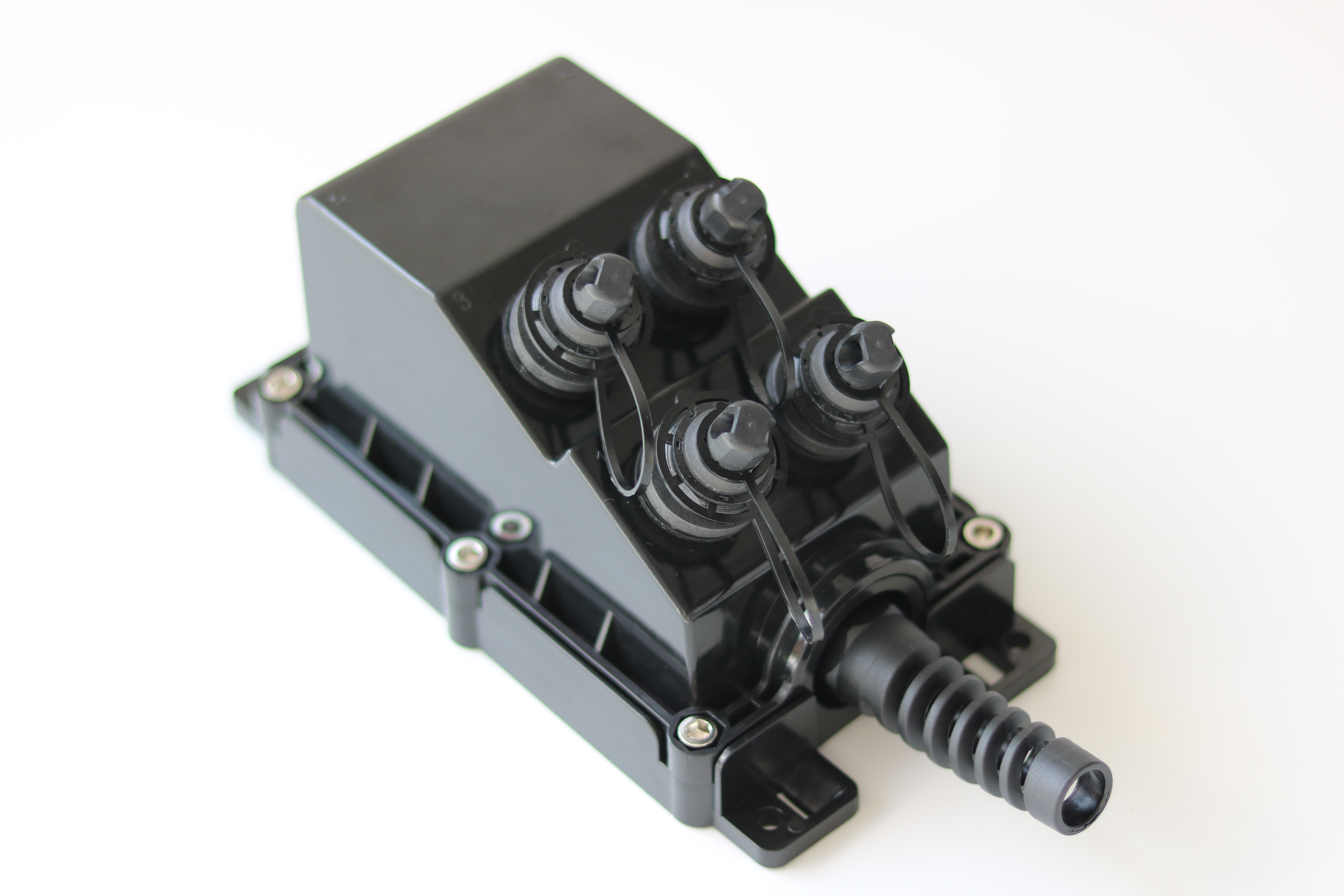

Multi-port Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment.
Factory terminated IP68 rated, high quality, high performance connectors.

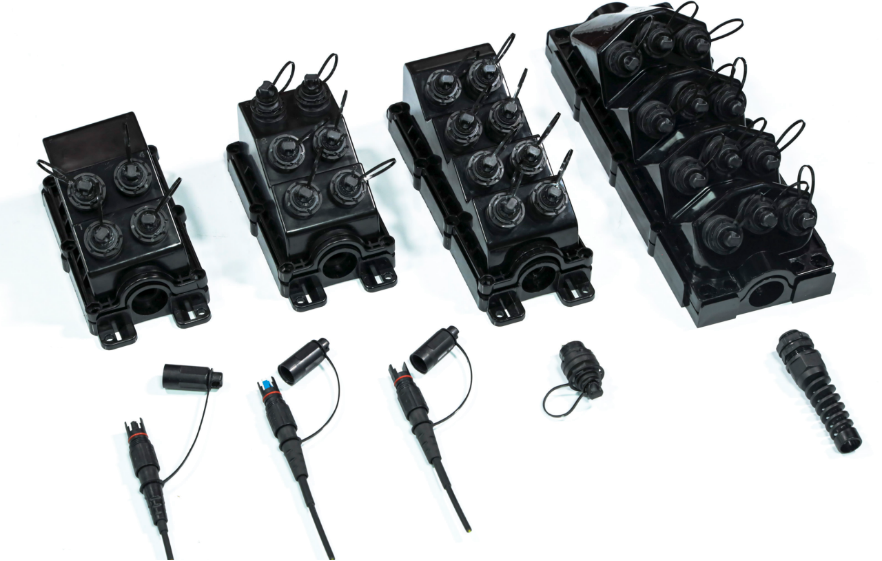

Flexible choice of ports: 2, 4, 6, 8 ,12 terminals are available.
Kind of mounting bracket allowing for a wide range of mount options.
Each box can be fully assembled to reduce the need for opening and opening the field in the field.
Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.
Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network.
Multi-port Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment.
Factory terminated IP68 rated, high quality, high performance connectors.
Flexible choice of ports: 2, 4, 6, 8 ,12 terminals are available.
Kind of mounting bracket allowing for a wide range of mount options.
Closure Specification Port
2, 4, 5, 6, 8, 12
Product Type
Access Terminal
IP Rate
IP68
Components Compliant
RoHs
Operating Temperature
-40 to +85℃
Adapter
OptiTap SC, OptiTap LC Duplex, OptiTap MPO
Entrance
Cable gland or OptiTap adapter
Feed Cable
1, 2, 4, 6, 8 cores for options
Feed Cable Length
Customized
Stub Type
Stub Tail
Mounting Method
Hand-hole, Pedestal, Pole, Strand, Aerial
Cable Specification
Cable Type
Flat drop cable
Cable Size
4.5x8.0mm; 4.5x12.0mm
Cable Quantity
1
Cable Stub Length
50meter to customized
Attenuation, maximum
0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm
Directivity, minimum
60 dB
Wavelength Range
1260–1635 nm
Insertion Loss, Terminal
Connector, max
0.4dB
Return Loss, Connector, minimum
65dB

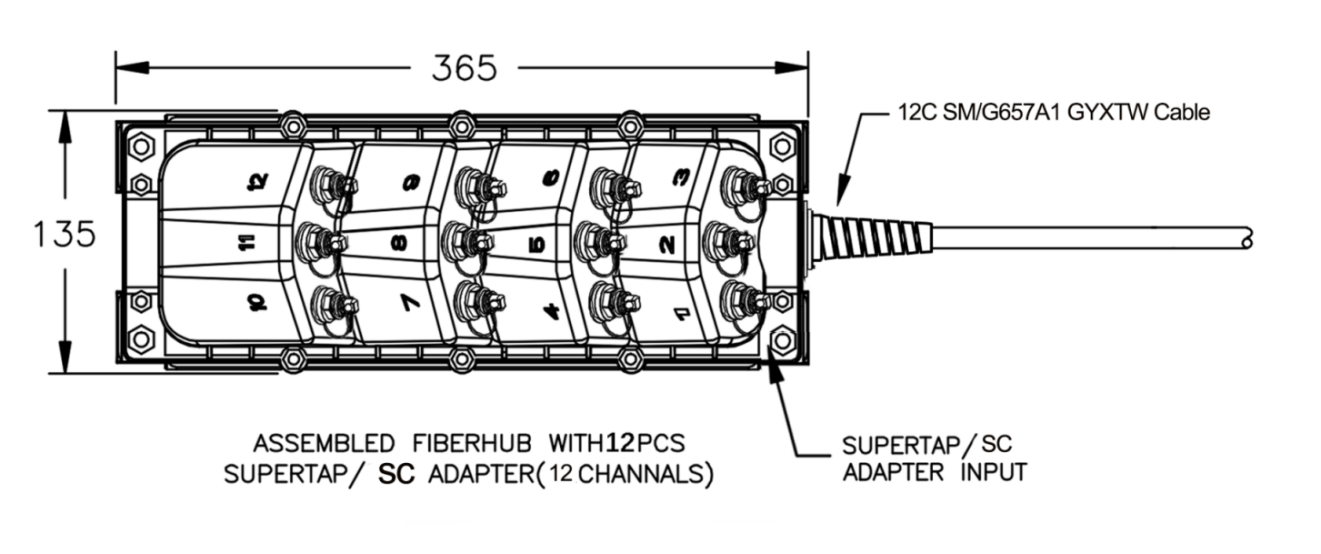

Closure Dimension
Item
Dimension
2Port
210x111x78mm
4Port
210x111x78mm
5Port
210x111x78mm
6Port
210x111x78mm
8Port
282x111x77.5mm
12Port
274x143x90mm
Closure Specification Port
2, 4, 5, 6, 8, 12
Product Type
Access Terminal
IP Rate
IP68
Components Compliant
RoHs
Operating Temperature
-40 to +85℃
Adapter
OptiTap SC, OptiTap LC Duplex, OptiTap MPO
Entrance
Cable gland or OptiTap adapter
Feed Cable
1, 2, 4, 6, 8 cores for options
Feed Cable Length
Customized
Stub Type
Stub Tail
Mounting Method
Hand-hole, Pedestal, Pole, Strand, Aerial
Cable Specification
Cable Type
Flat drop cable
Cable Size
4.5x8.0mm; 4.5x12.0mm
Cable Quantity
1
Cable Stub Length
50meter to customized
Attenuation, maximum
0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm
Directivity, minimum
60 dB
Wavelength Range
1260–1635 nm
Insertion Loss, Terminal
Connector, max
0.4dB
Return Loss, Connector, minimum
65dB
Closure Dimension
Item
Dimension
2Port
210x111x78mm
4Port
210x111x78mm
5Port
210x111x78mm
6Port
210x111x78mm
8Port
282x111x77.5mm
12Port
274x143x90mm
