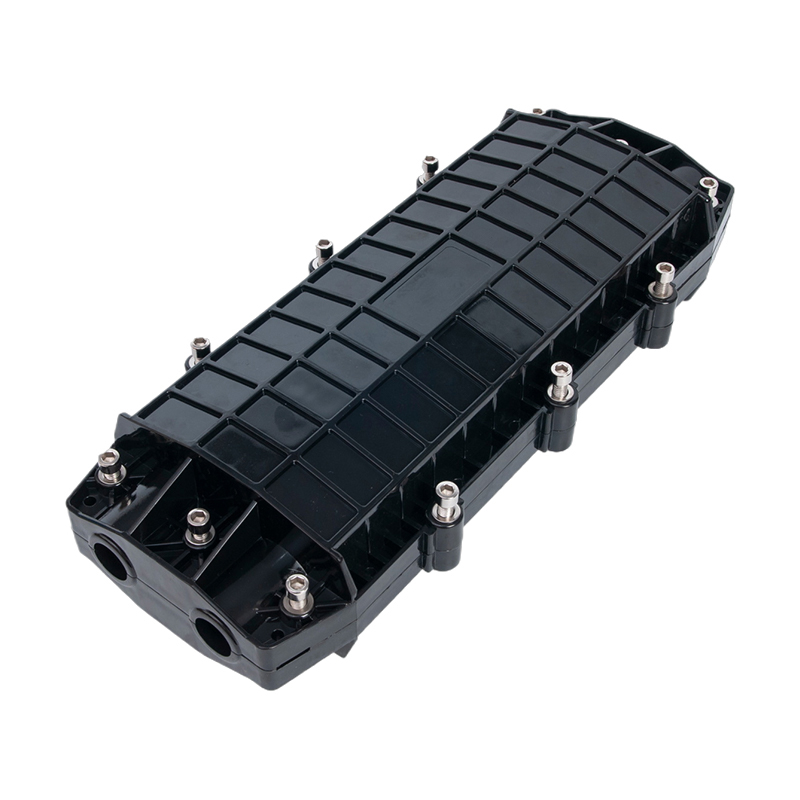

The closure casing is made of quality engineering PC plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.

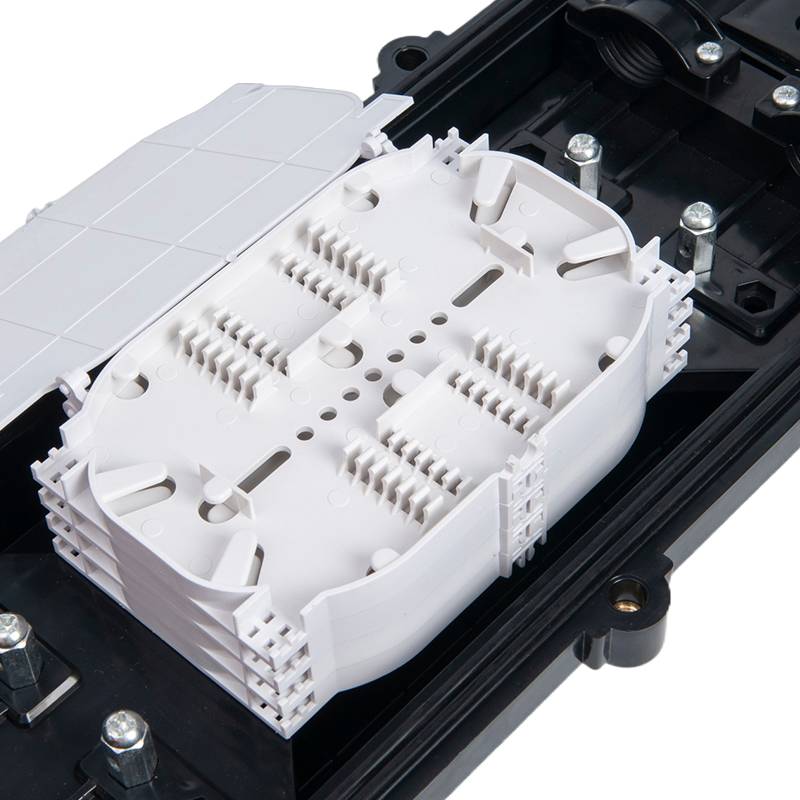

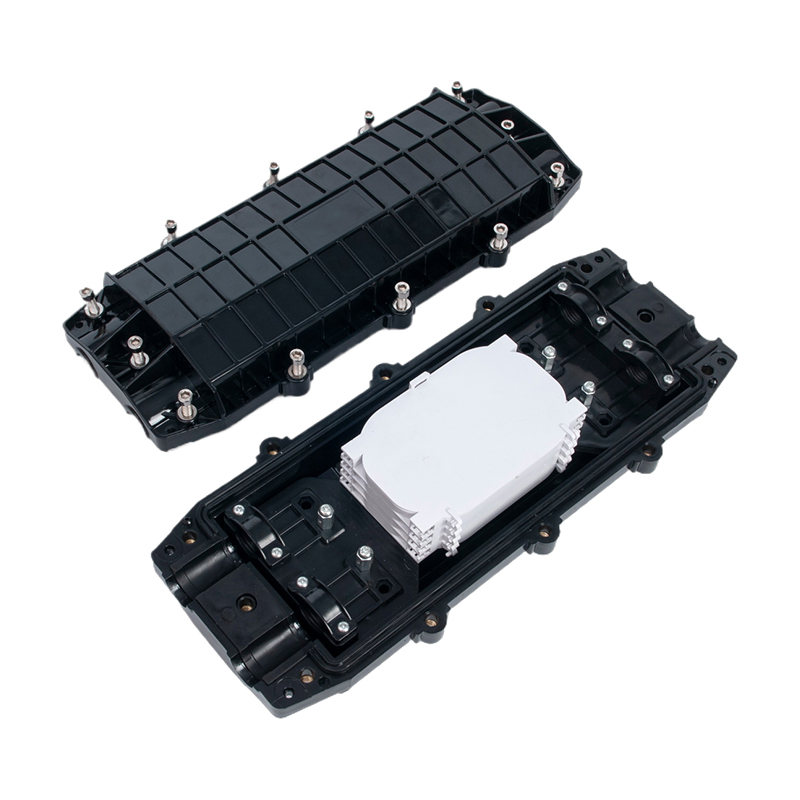

The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
The closure is of small volume, big capacity and convenient maintenance.
The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
The closure casing is made of quality engineering PC plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.
The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
The closure is of small volume, big capacity and convenient maintenance.
The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
Configuration
Material | Size | Max Capacity | Diameter of Cable | Weight | Number of Cable Entrance/Exit |

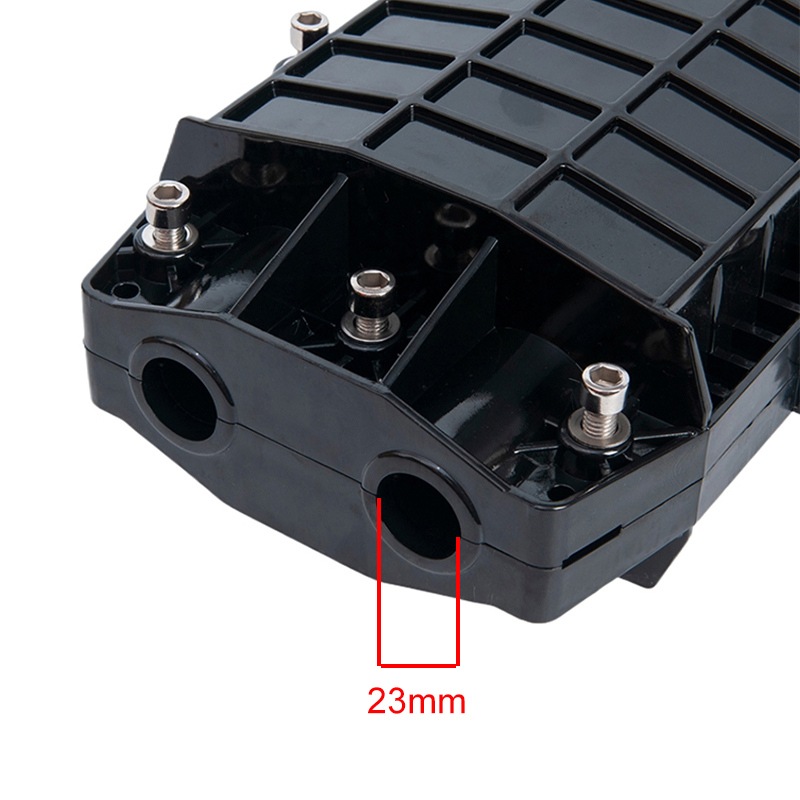

PC | A*B*C(mm) 430*190*110 | Splice 96 Fibers (4trays,24 core/tray) | A : φ 23mm B: φ 23mm | 2.35kg | 2 in 2 out |
Packing List
PCS/CARTON | Gross Weight(Kg) | Net Weight(Kg) | Carton Size(cm) | Cbm(m³) |
10 | 26 | 25 | 45*42*56.5 | 0.107 |

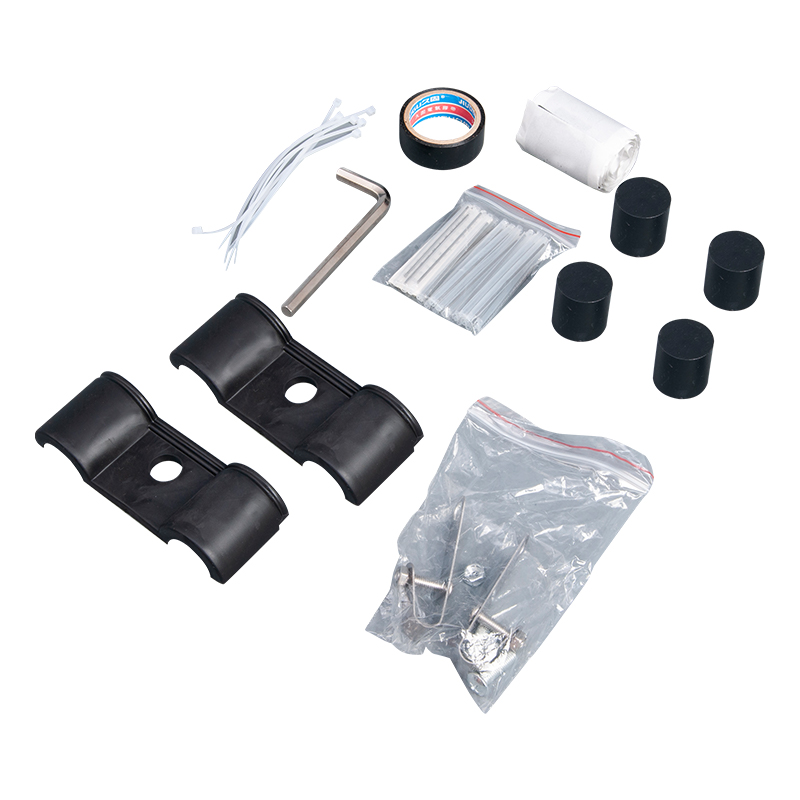

Standard Accessories
Metal spanner:1pcs
Metal hanger :2pcs
Sealing rubber strip:1pcs
Insulating tape:1pcs
Cable tie:3mm*110mm 8pcs
Plastic plug:4pcs
Rubber waterproof strip:2pcs
Heat-shrink sleeve:1.2mm*60mm 96pcs
