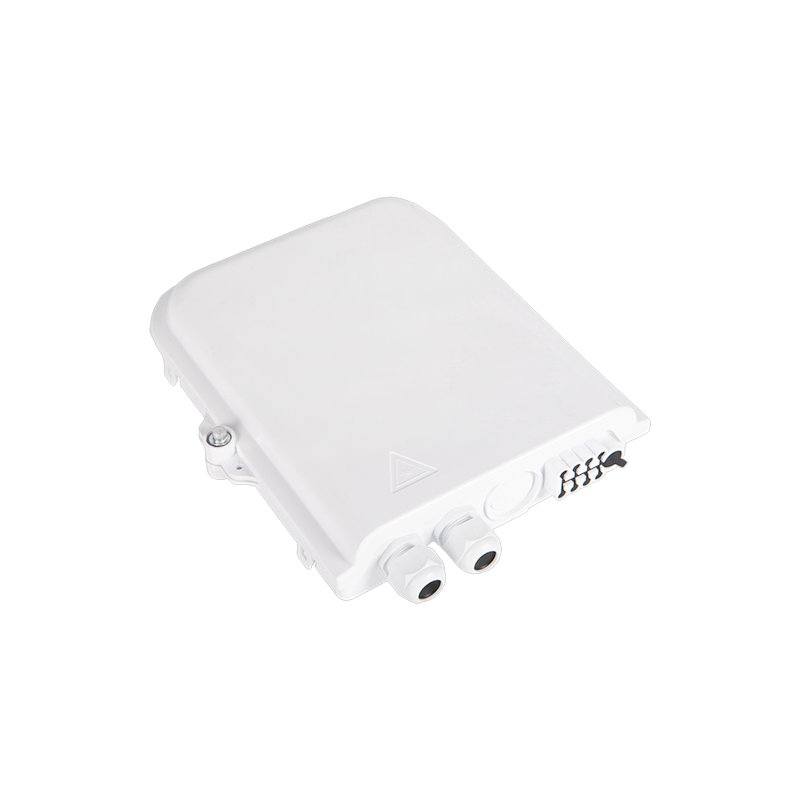

1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, rosh.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy
maintenance.

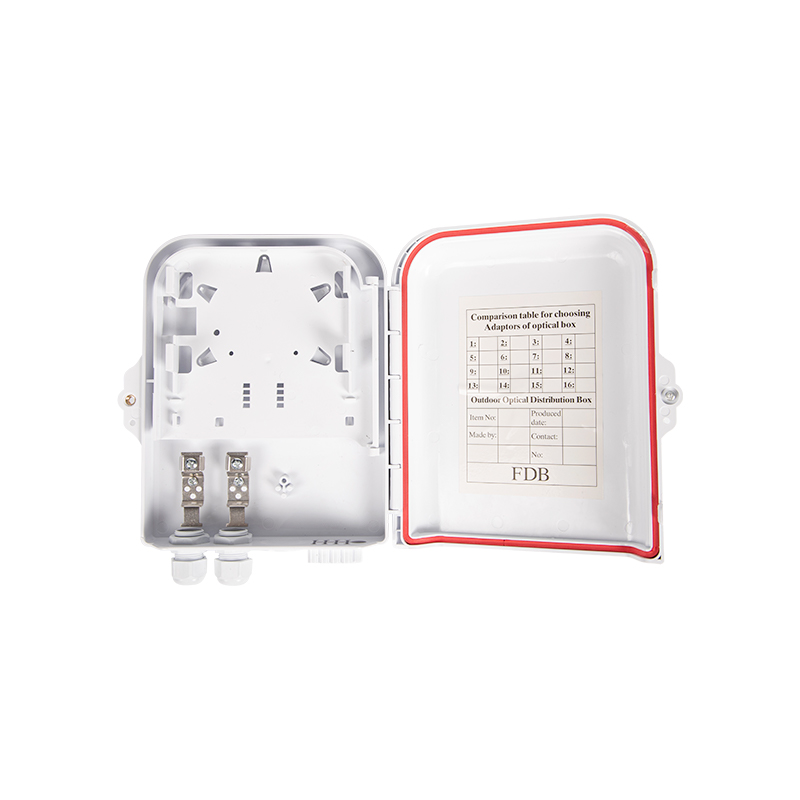

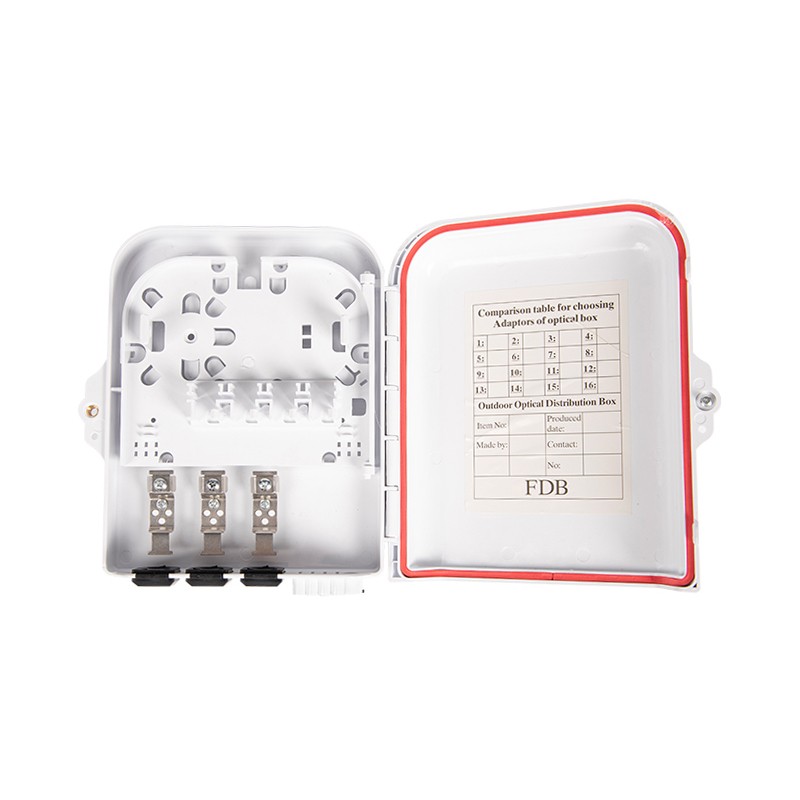

5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted or poled- mounted,suitable for both indoor and outdoor uses.
1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, rosh.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy
maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted or poled- mounted,suitable for both indoor and outdoor uses.
Configuration
Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |

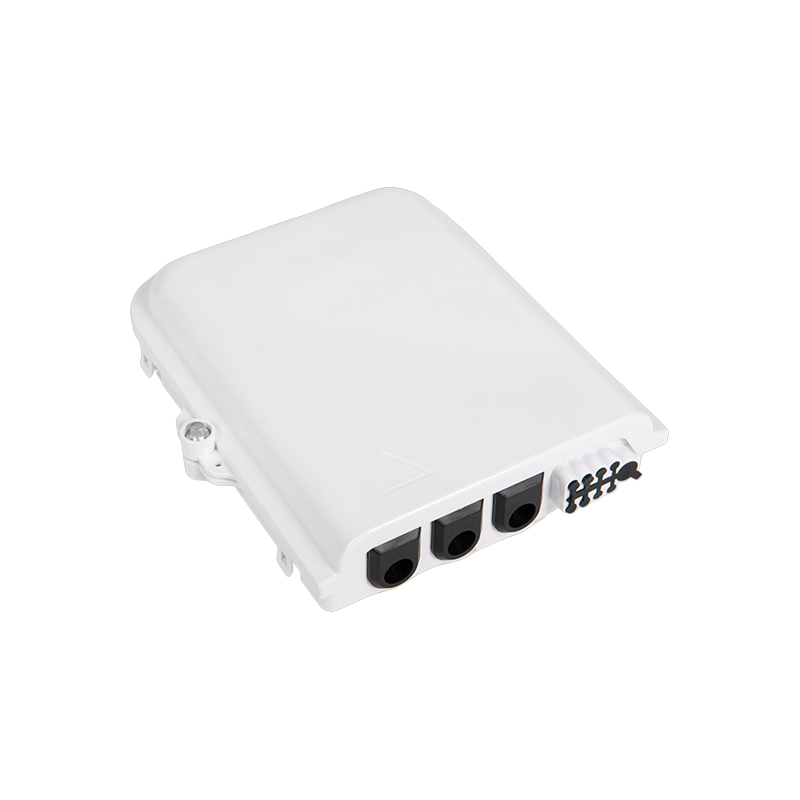

Strengthen ABS | A*B*C(mm) 230*195*55 | Splice 8 Fibers (1trays,8 core/tray) | PLC Splitter 1pcs of 1x8 | 8 pcs of SC(max) | 0.55kg | 2 in 8 out 3 in 8 out |
Packing List
PCS/CARTON | Gross Weight(Kg) | Net Weight(Kg) | Carton Size(cm) | Cbm(m³) |
20 | 13 | 12 | 52*31*42 | 0.068 |

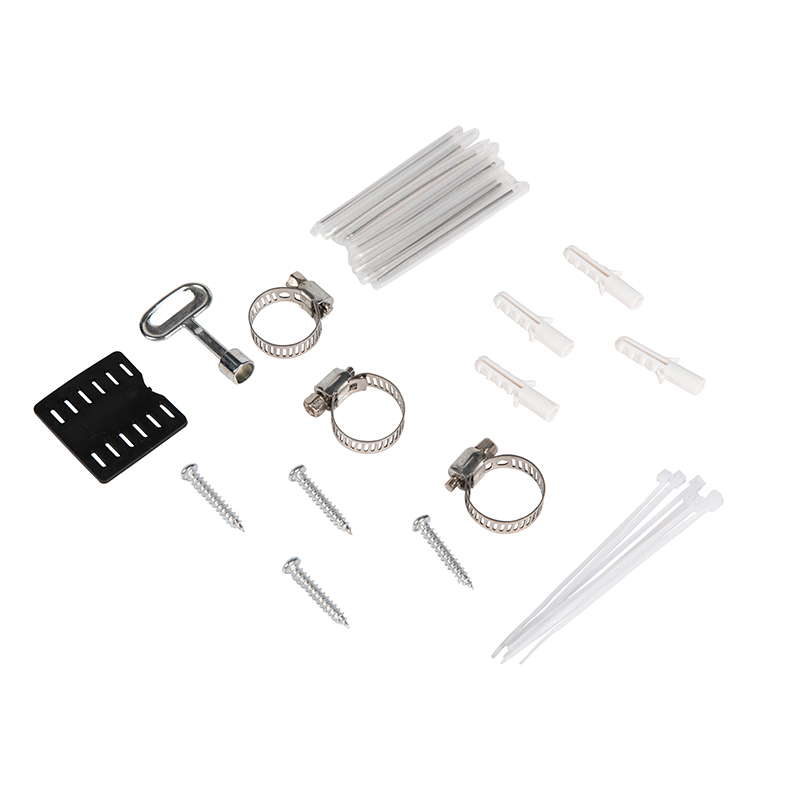

Standard Accessories
Screw: 4mm*40mm 4pcs
Expansion bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
Key:1pcs
hoop ring:3pcs
TPR black block:2 pcs(Optional Accessories )
Configuration
Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
Strengthen ABS | A*B*C(mm) 230*195*55 | Splice 8 Fibers (1trays,8 core/tray) | PLC Splitter 1pcs of 1x8 | 8 pcs of SC(max) | 0.55kg | 2 in 8 out 3 in 8 out |
Packing List
PCS/CARTON | Gross Weight(Kg) | Net Weight(Kg) | Carton Size(cm) | Cbm(m³) |
20 | 13 | 12 | 52*31*42 | 0.068 |
Standard Accessories
Screw: 4mm*40mm 4pcs
Expansion bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
Key:1pcs
hoop ring:3pcs
TPR black block:2 pcs(Optional Accessories )
