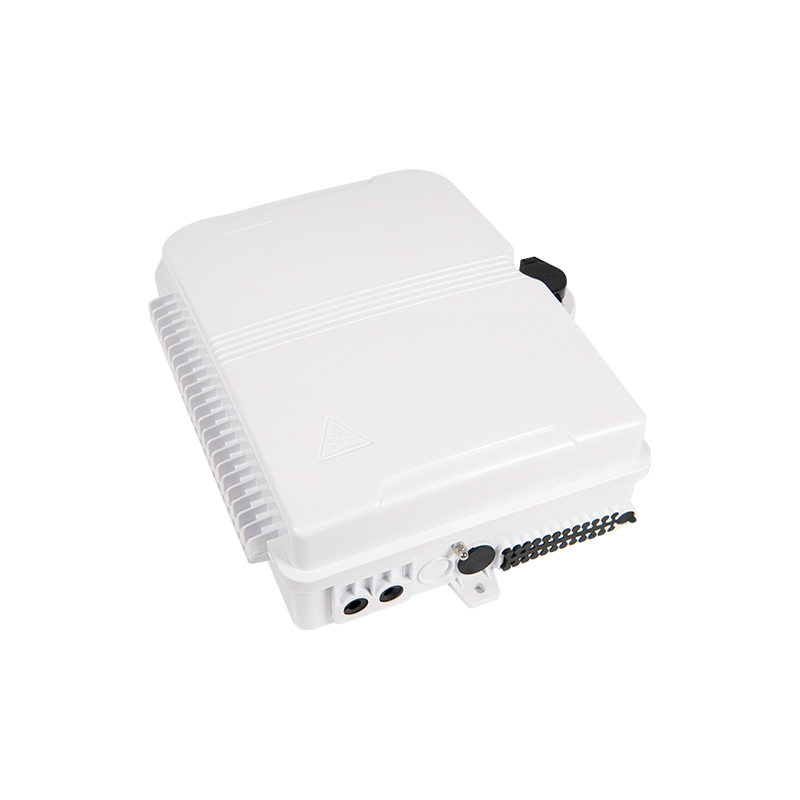

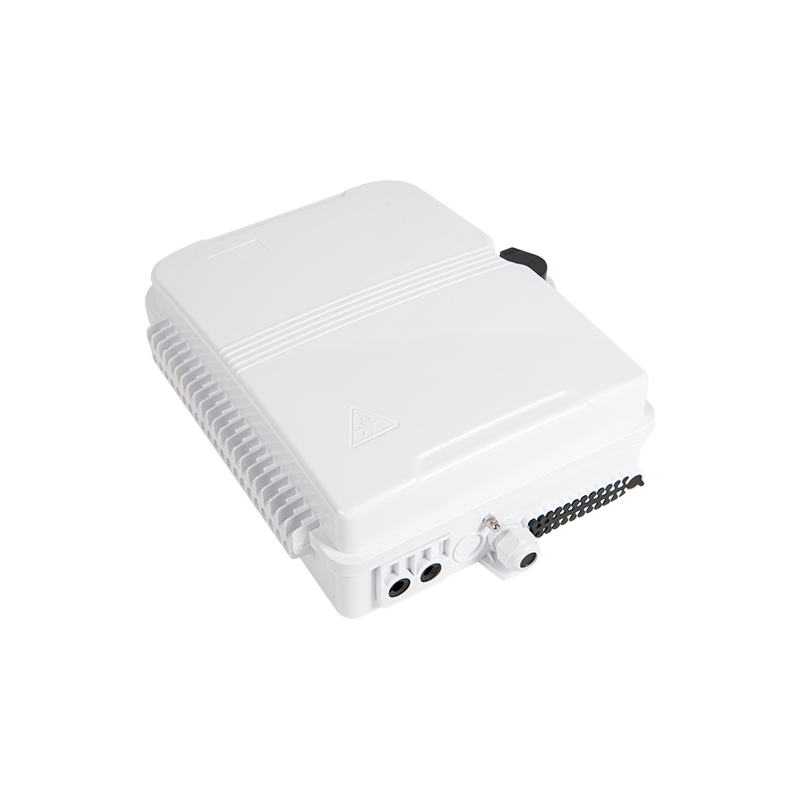

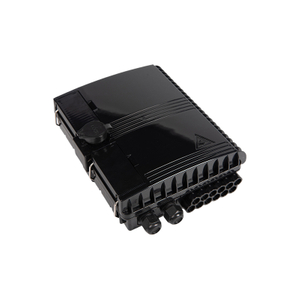

Fiber Optic Distribution Box (FDB-HY104-24core)

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Availability:
Quantity:

 1、Total enclosed structure.

 2、 Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.

 3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.

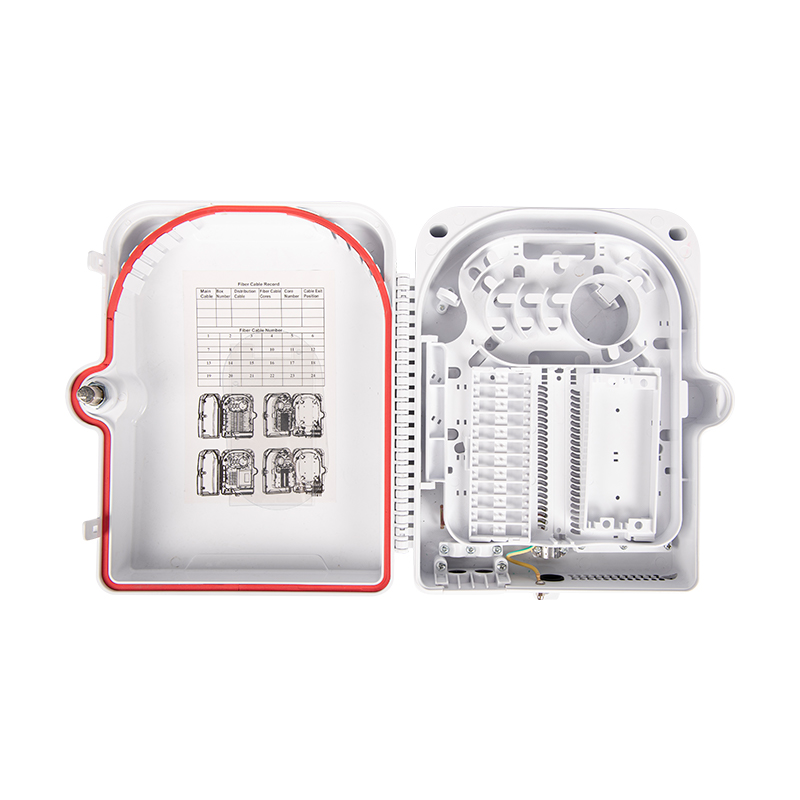

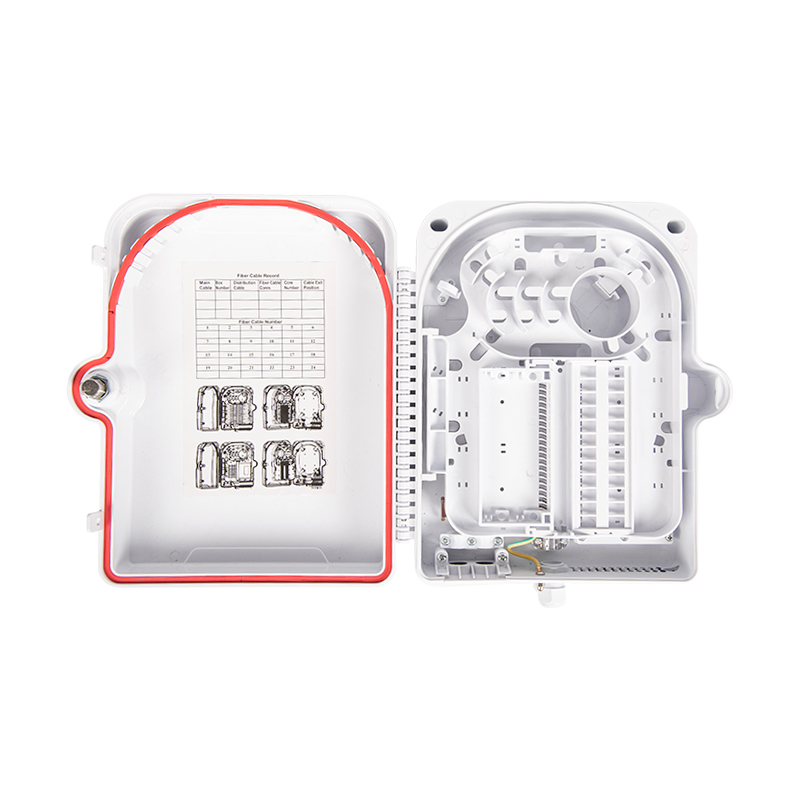

 4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.

 5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

 6 、 Box can be installed by the way of wall-mounted or poled- mounted,suitable for both indoor and outdoor uses.


Configuration


Material

Size

Max Capacity

Nos of PLC

Nos of Adaptor

Weight

Ports

Strengthen

ABS

A*B*C(mm)

330*275*110

Splice 24 Fibers

(1trays,24 core/tray)

PLC Splitter

1pcs of 1x16

24 pcs of SC(max)

1.43kg

4 in 24 out


Packing List


PCS/CARTON

Gross WeightKg

Net WeightKg

Carton Sizecm

Cbm(m³)

10

16.5

15.5

60*35*57

0.121

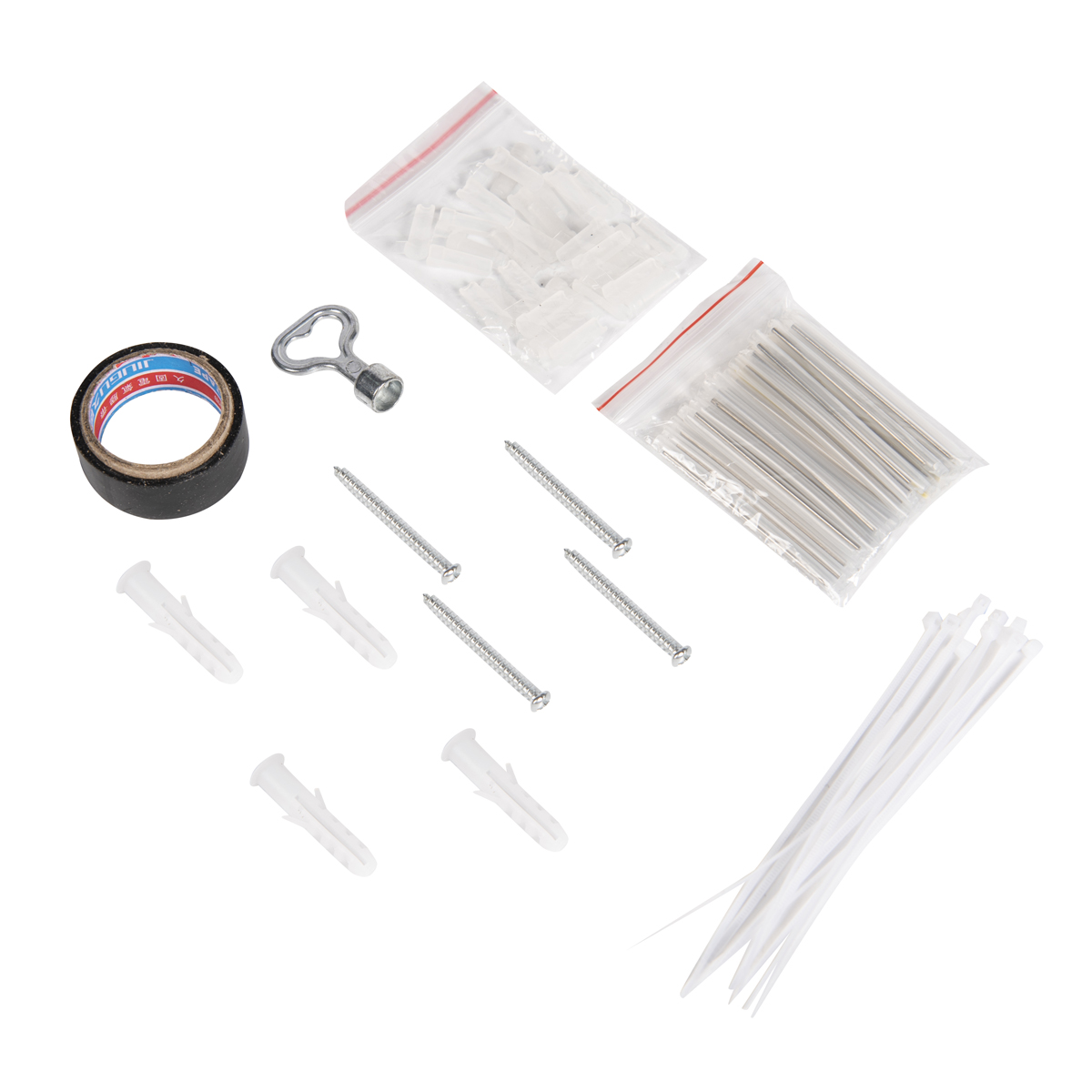

Standard Accessories

 Screw: 4mm*40mm  4pcs                 Expension bolt: M6  4pcs

Cable tie:3mm*10mm  6pcs             Digital label paste:1pcs

Heat-shrink sleeve :60mm 24pcs     Isolasi tape:1pcs

Transparent protective sheet:2pcs   specification :1pcs

Plastic protective pipe:24pcs            Key:1pcs

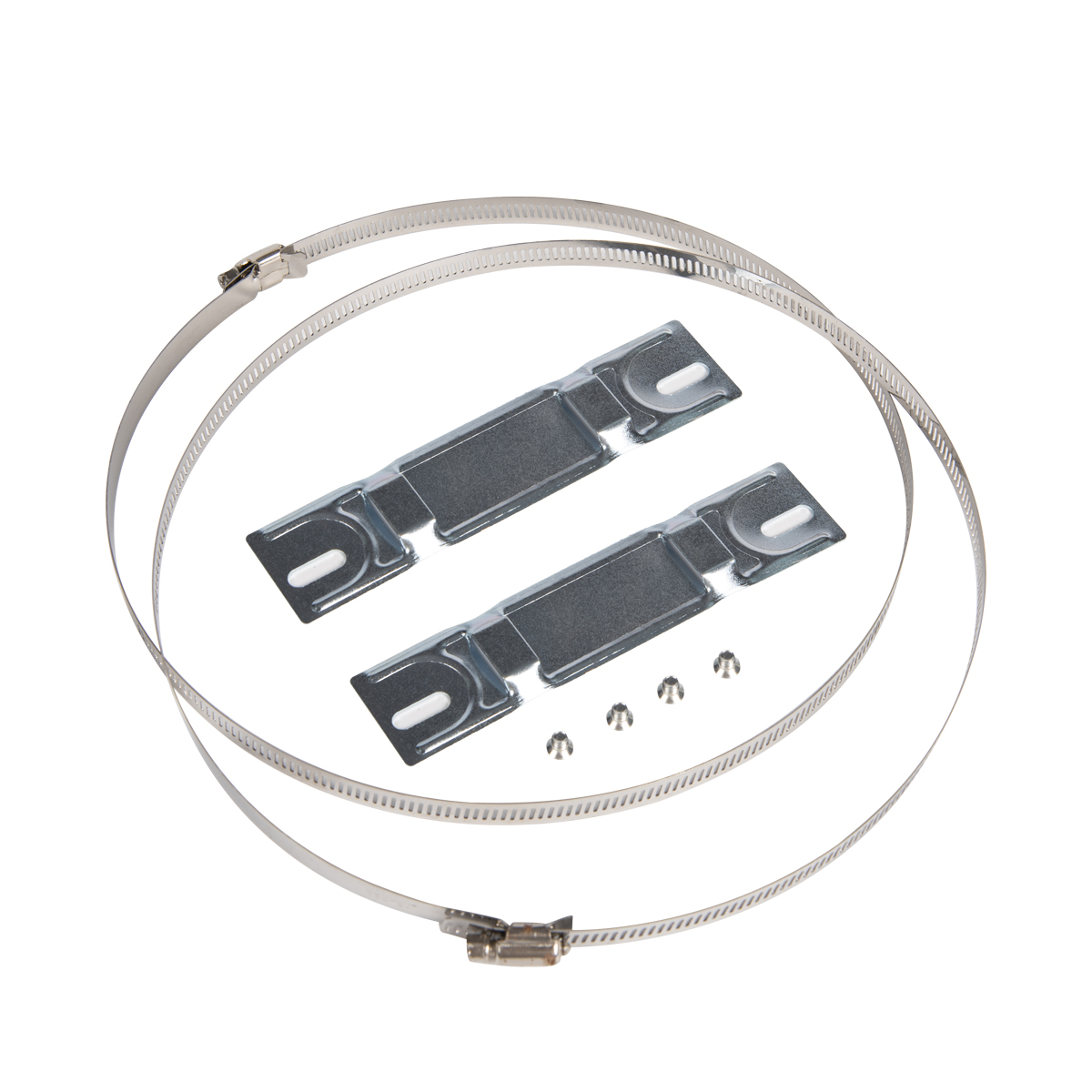

Optional Accessories

steel sheet metal:2pcs                      Screw: 4pcs

Hoop:235mm 2pcs
