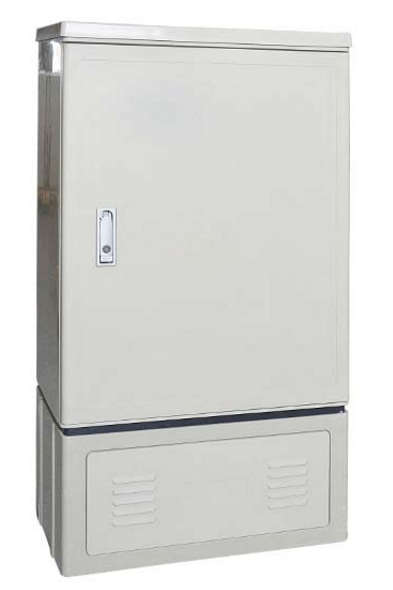

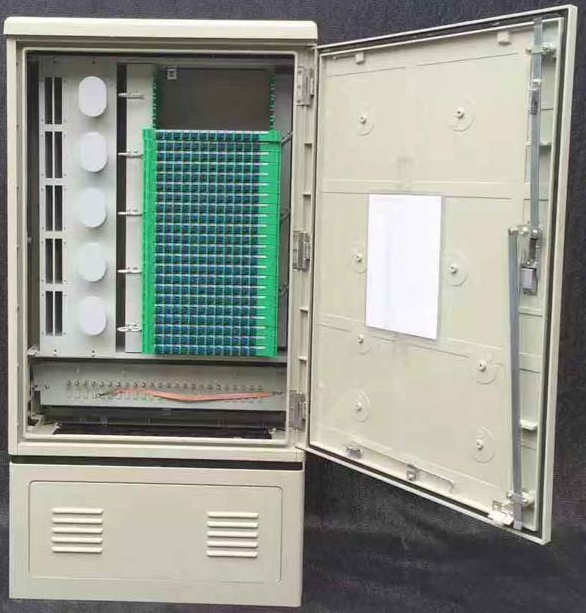

288 Core SMC Fiber Optic Cabinet

Fiber distribution cabinet is used outdoors trunk interface device connecting to the cable and distribution cable,and can provide the connection between backbone cables and wiring cable.It can achieve a direct connection and cross-connect between the trunk cable and wiring cable with the function of cable fixing,the connection of metal components and high-voltage protection grounding devices,the protection of optical fiber connector,savings and distribution of the remaining long fiber.
Availability:
Quantity:
  • High intensity and anti-erosion performance

  • Able to counter abrupt climate change and extreme environment Capacity can be flexibly customized as required

  • Installation is quick and convenient

  • Built-indirect splice unit is capable for providing direct connection function. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers

  • With secure and reliable fastening and grounding protection devices for the optic fiber

  • Applicable to strap-shaped and non-strap shaped fibers


Configuration

Material

     Size

Max Capacity

Nos of PLC

Nos of Adaptor

Weight

Characteristics

Strengthen SMC

A*B*C(mm) 1450*750*320

Splice 288 Fibers (28trays,12 core/tray)

PLC Splitter 10pcs of 1x8

288 pcs of SC(max)

57.94kg

High strength   Aging resistance

Applications

1) FTTH Access Network

2) Telecommunication Networks

3) CATV LAN

4) Data Communications Networks

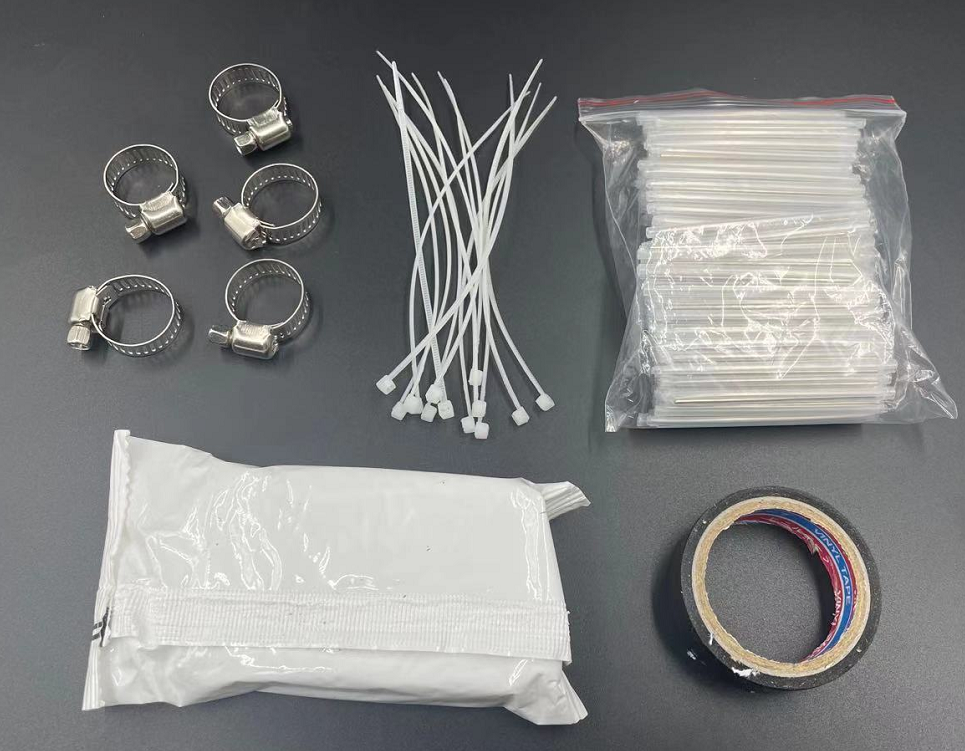

Standard Accessories

Hose clamps:5pcs

Cable tie:3mm*12mm  12pcs

Heat-shrink sleeve:1.0mm*3mm*60mm 288pcs

Insulating tape:1pcs

Alcohol wipe bag:1pcs
