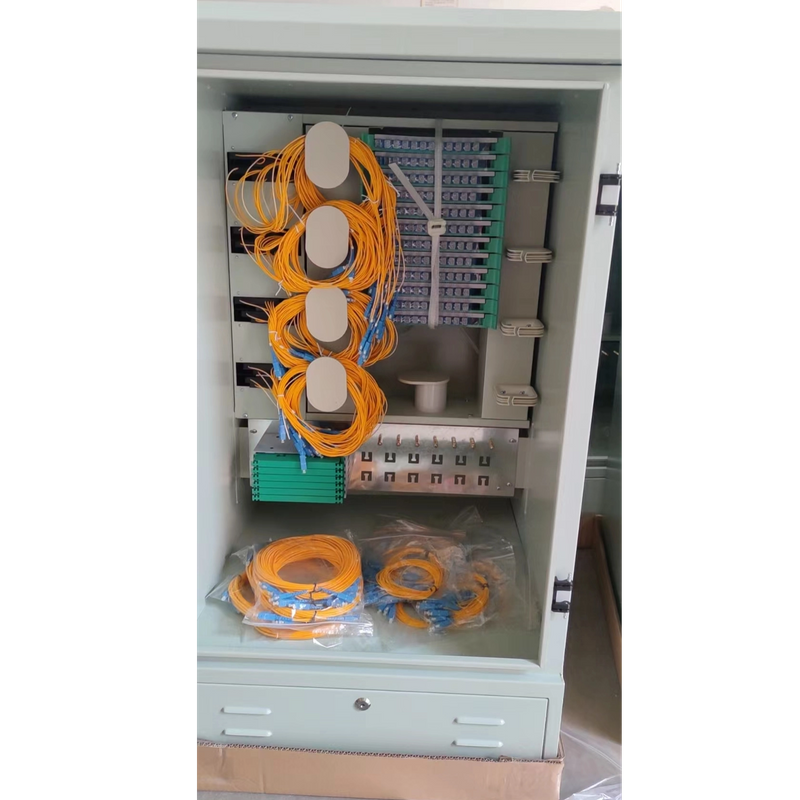

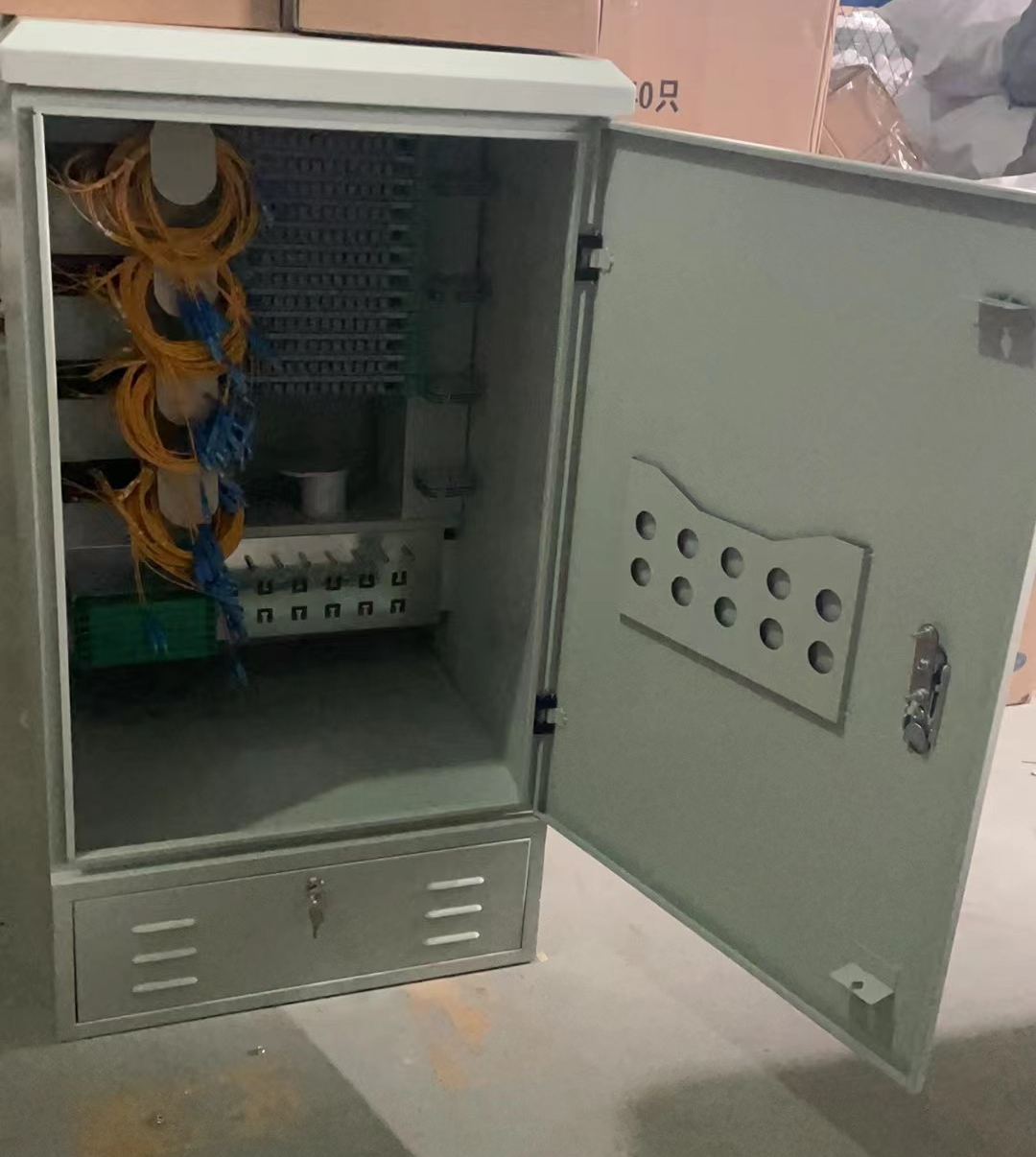

144 Core Fiber Optic Cabinet

Fiber distribution cabinet is used outdoors trunk interface device connecting to the cable and distribution cable,and can provide the connection between backbone cables and wiring cable.It can achieve a direct connection and cross-connect between the trunk cable and wiring cable with the function of cable fixing,the connection of metal components and high-voltage protection grounding devices,the protection of optical fiber connector,savings and distribution of the remaining long fiber.
Availability:
Quantity:
  • Able to counter abrupt climate change and extreme environment Capacity can be flexibly customized as required

  • Installation is quick and convenient

  • Built-indirect splice unit is capable for providing direct connection function. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers

  • With secure and reliable fastening and grounding protection devices for the optic fiber

  • Applicable to strap-shaped and non-strap shaped fibers


Configuration

Material

     Size

Max Capacity

Nos of PLC

Nos of Adaptor

Weight

Characteristics

Electro-galvanized  steel sheet

A*B*C(mm) 1030*560*550

Splice 144 Fibers

PLC Splitter 8pcs of 1x4

144 pcs of SC(max)

24.46kg

IP55

Applications

1) FTTH Access Network

2) Telecommunication Networks

3) CATV LAN

4) Data Communications Networks

Standard Accessories

Hose clamps:5pcs

Cable tie:3mm*12mm  12pcs

Heat-shrink sleeve:1.0mm*3mm*60mm  144pcs

Insulating tape:1pcs

Alcohol wipe bag:1pcs
