Availability: | |
---|---|
Quantity: | |

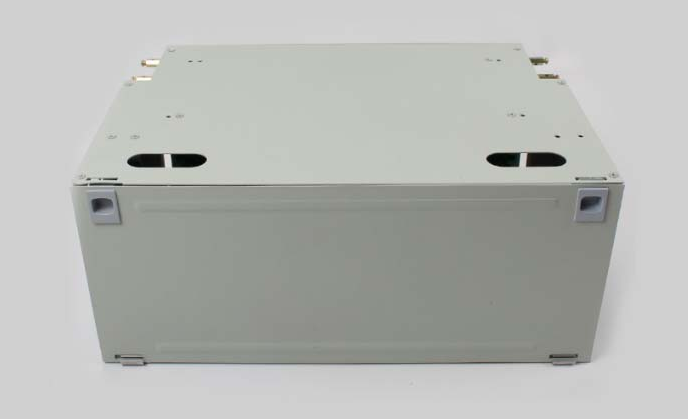

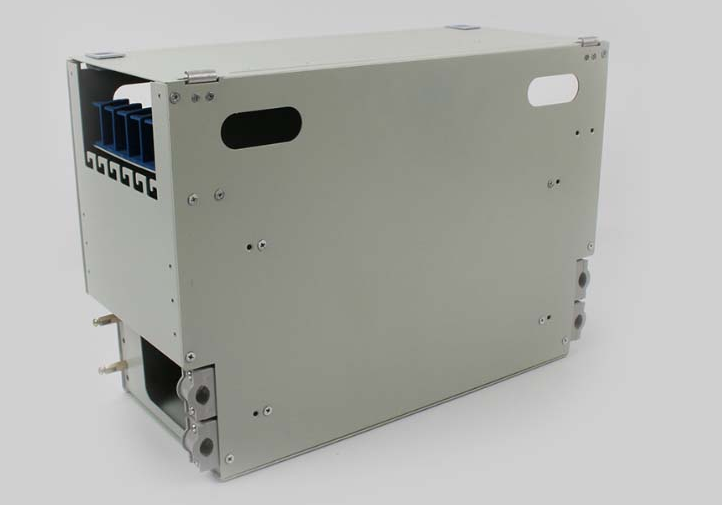

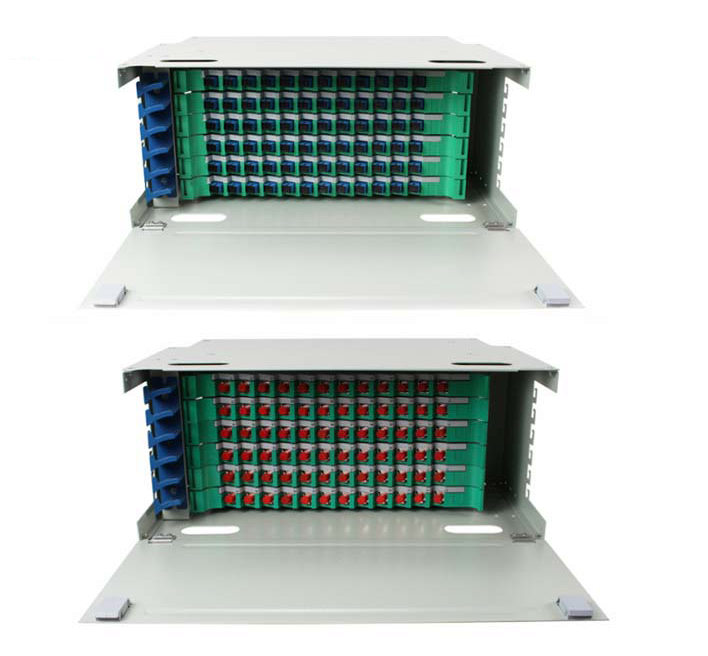

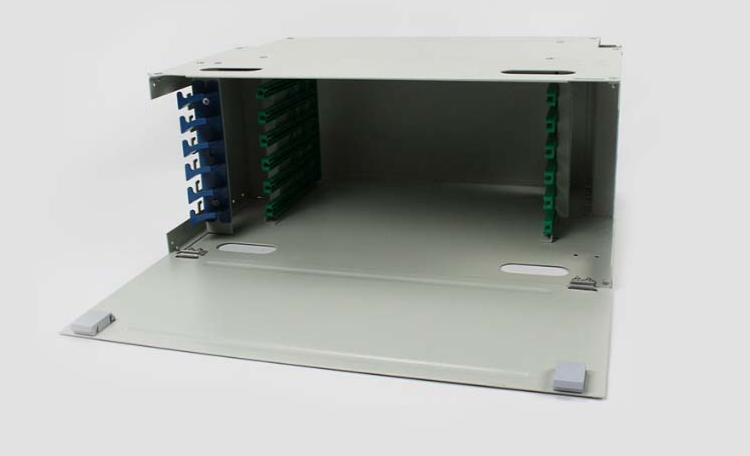

1、Standard size 19inch distribution frame, lightweight and reasonable structure
2、Splice tray inside changeable
3、Suitable for ribbon and single fiber
4、Various panel plate to fit different adapter interface SC FC LC
5、Front mark on the plate is easy for identification and operation
6、12-144C optional, with or without fiber optic pigtails and adapters
1、Standard size 19inch distribution frame, lightweight and reasonable structure
2、Splice tray inside changeable
3、Suitable for ribbon and single fiber
4、Various panel plate to fit different adapter interface SC FC LC
5、Front mark on the plate is easy for identification and operation
6、12-144C optional, with or without fiber optic pigtails and adapters
Configuration
Specifications | High (mm) | Wide (mm) | Deep (mm) | Weight (kg) | Material | Installing way |
12 core | 43.0 | 430.0 | 280.0 | 4.0 | 1.5mm manufacture | The rack type |
24 core | 63.0 | 430.0 | 280.0 | 5.0 | ||
48 core | 130.0 | 430.0 | 280.0 | 7.0 | ||
72 core | 174.0 | 430.0 | 280.0 | 9.2 | ||
96 core | 219.0 | 430.0 | 280.0 | 11.5 | ||
144 core | 330.0 | 430.0 | 280.0 | 14.6 |
Application:
1.FTTX Systems
2.PON Networks
3.CATV Links
4.Optical Signal Distribution
Environment:
1.Working temperature: - 40 ℃ ~ + 60 ℃
2. Relative humidity: 95% or less (+ 40 ℃)
3.Atmospheric pressure :70~106Kpa
4.Suitable temperature: - 40 ℃ ~ + 60 ℃
5.Moisture-proof, rainproof, dustproof and burglar proof comply with YD/T988-1998 standard
P.hotoelectric properties:
1.Ground wire section:>6mm2.
2. Insertion loss: ≦0.2dB.
3.Connector loss:≦0.5dB.
4. Return loss: UPC≥ 50dB,APC≥ 70dB.
5. Durability life of plug and pull >1000 times.
6. The insulation resistance 2x104MΩ /500V(DC).
7. Electrical strength: it can withstand 3000V(direct current)/1min without breakdown/arc flying phenomenon.
Mechanical properties:
1.Retardant properties:GB5169.7 Atrial standard.
2.Fiber cable come into from bottom, reliable waterproof.
3.The surface of the box body can bear the pressure greater than the surface of the surface is greater than 1000N. 4.The external side of the door can withstand the vertical pressure greater than 200N.
