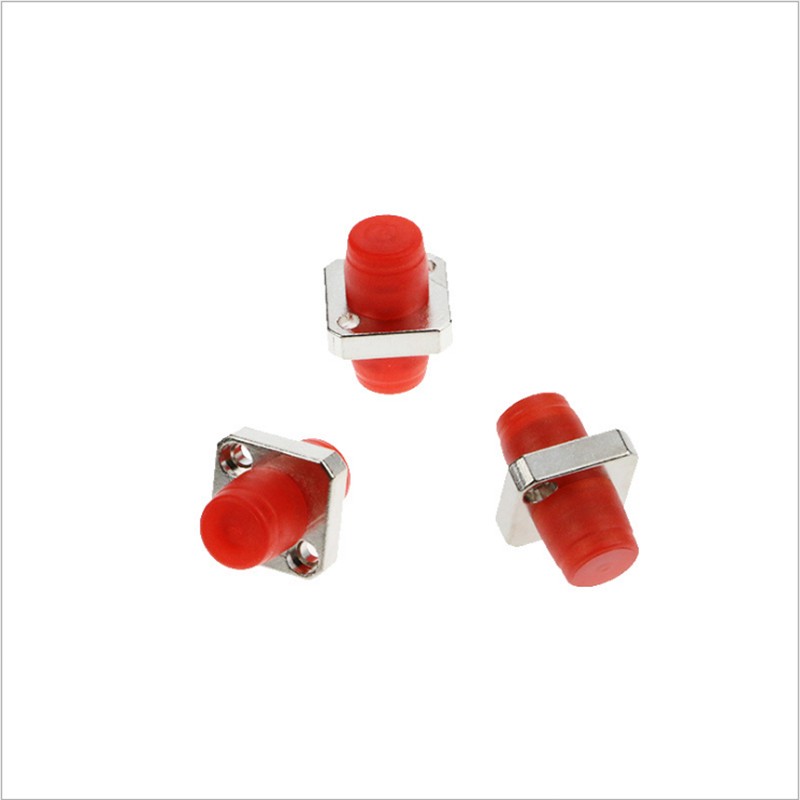

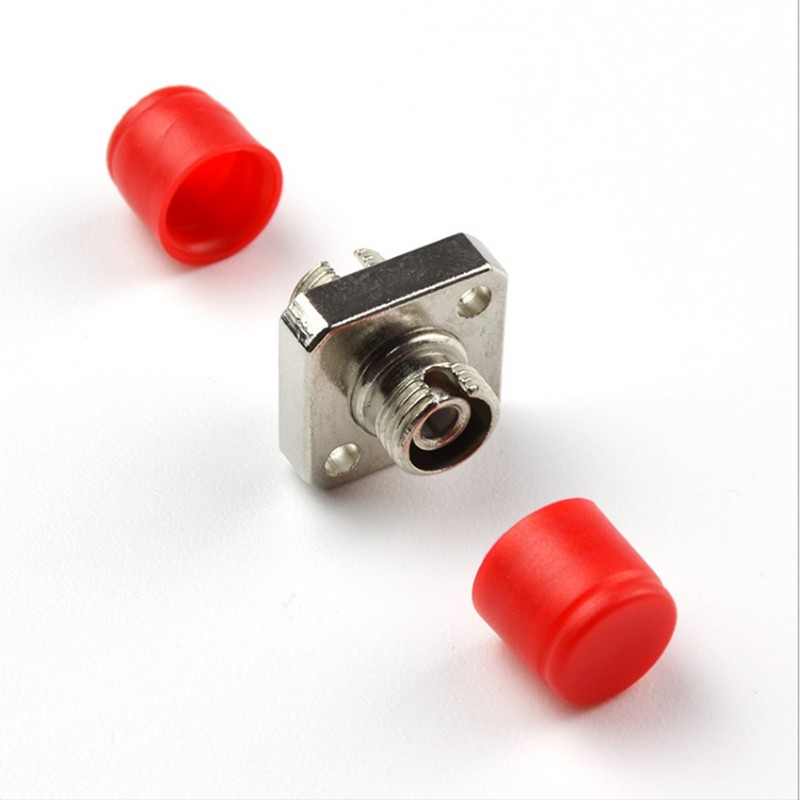

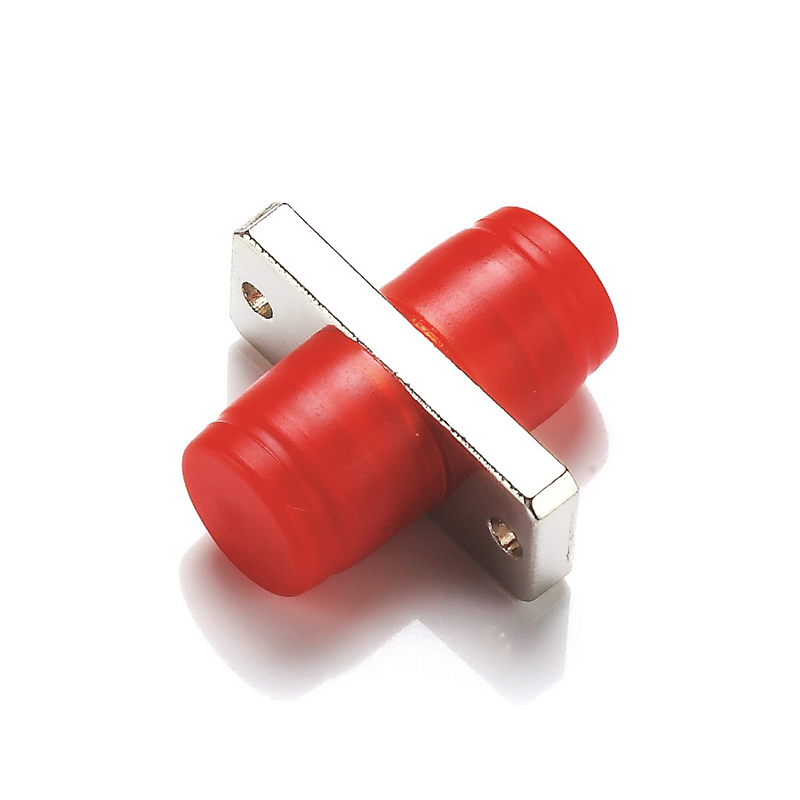

FC Fiber Optic Adapter

Fiber optic adapters allow users to couple from one connector type to another same type. These adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. These adapters are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Availability:
Quantity:
  • UPC or APC  Optional;

  • SM or  MM  Optional;

  • Square flange, D flange and rectangle flange Optional;

  • Simplex , Duplex  Optional;

  • Ceramics  Sleeve , Compact design;

  • Low insertion loss;

  • Comply with IEC, Telcordia GR 326 standard.


  • CATV;

  • Telecommunication networks;

  • Test equipment;

  • Local Area Networks(LANs);

  • Data processing networks.


Adapter

FC  Square flange, D flange and rectangle flange

Adapter Mode

SM/MM

Color

Metallic silver

Polish Type

UPC/APC

Material

Ceramics & Plastic

Insertion Loss

≤0.2dB

Durability

≤0.1dB

Flammability Rate

UL94-V0

Operating Temperature

-40-85℃
