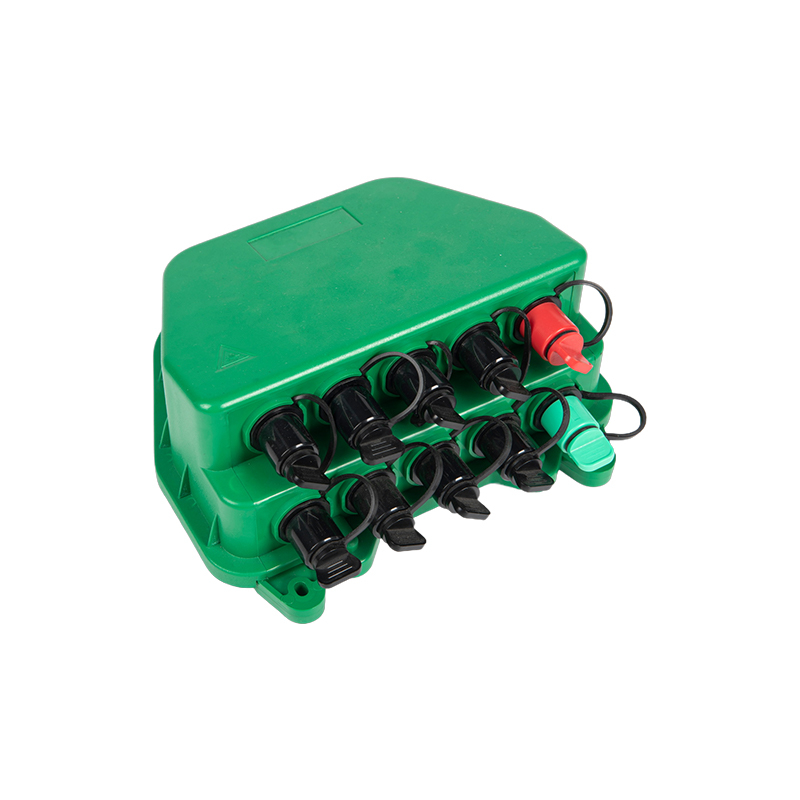

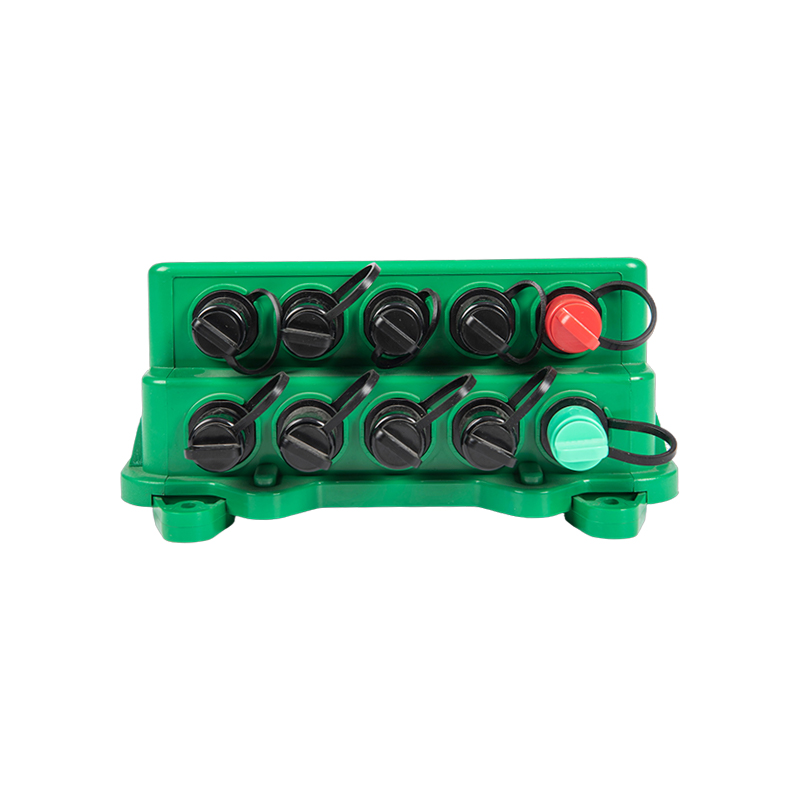

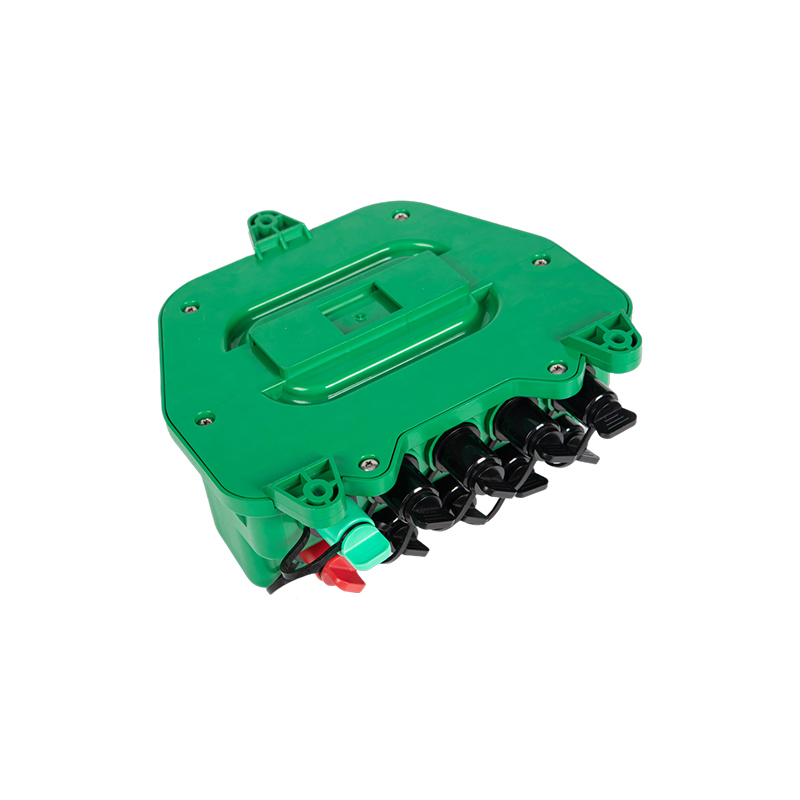

Fiber Optic Distribution Box (FDB-HY106-8core)

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Availability:
Quantity:

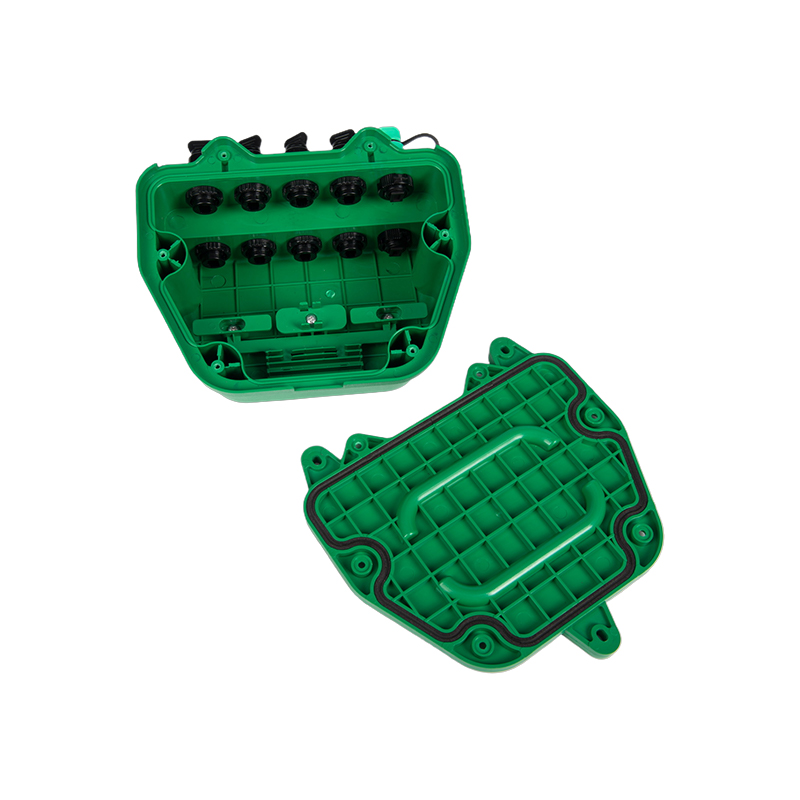

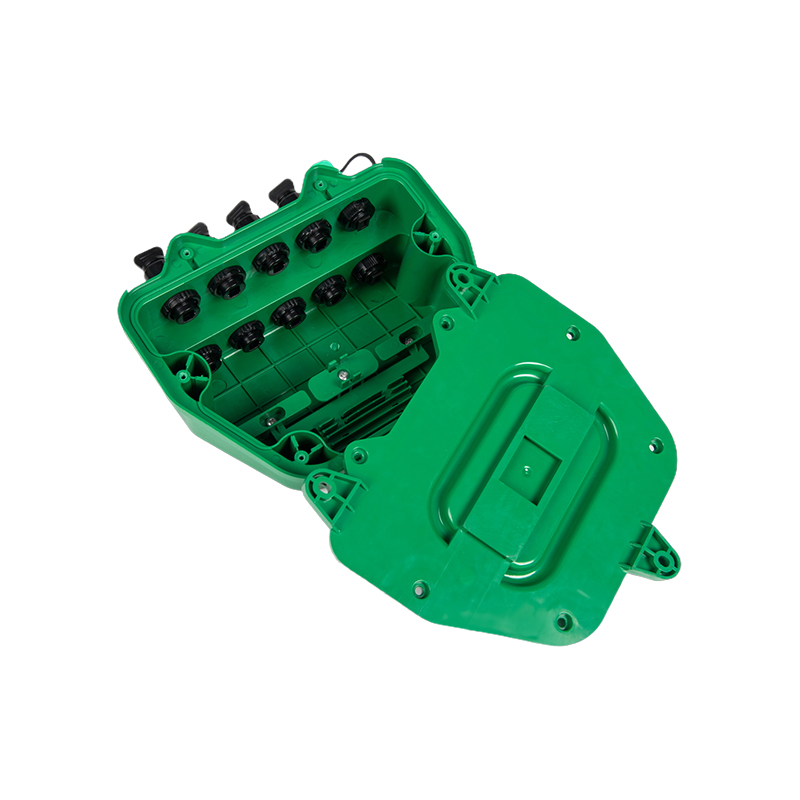

  • Mini size, lightweight, total enclosed with 6pcs screws on bottom plate;

  • High strength engineer plastic,with strength strips, wet-proof, water-proof, dust-proof, anti-aging

  • Outdoor wall mount, pole mounting, protection level up to IP67;

  • Compact design integrates distribution, splicing, splitting 3functions all in one box;

  • PLC splitter, pigtails are running through their own paths without disturbing each other, easy maintenance;

  • 2 layers splitting design, 1pcs of 1:2 PLC splitter output to be pre-spliced with 1pcs of 1:8 PLC splitter input;

  • Adapters cap color can be customized to distinguish input output.


Configuration

Material

Size

Max Capacity

Nos of PLC

Nos of Adaptor

Weight

Ports

Strengthen ABS

A*B*C(mm) 205*210*92

10 ports

1 pcs 1:2 &

1 pcs 1:8

10 pcs Huawei Adapter

0.53kg

1 in 10 out

Packing List

PCS/CARTON

Gross WeightKg

Net WeightKg

Carton Sizecm

Cbm(m³)

20

20

19

52.5*45*45

0.106

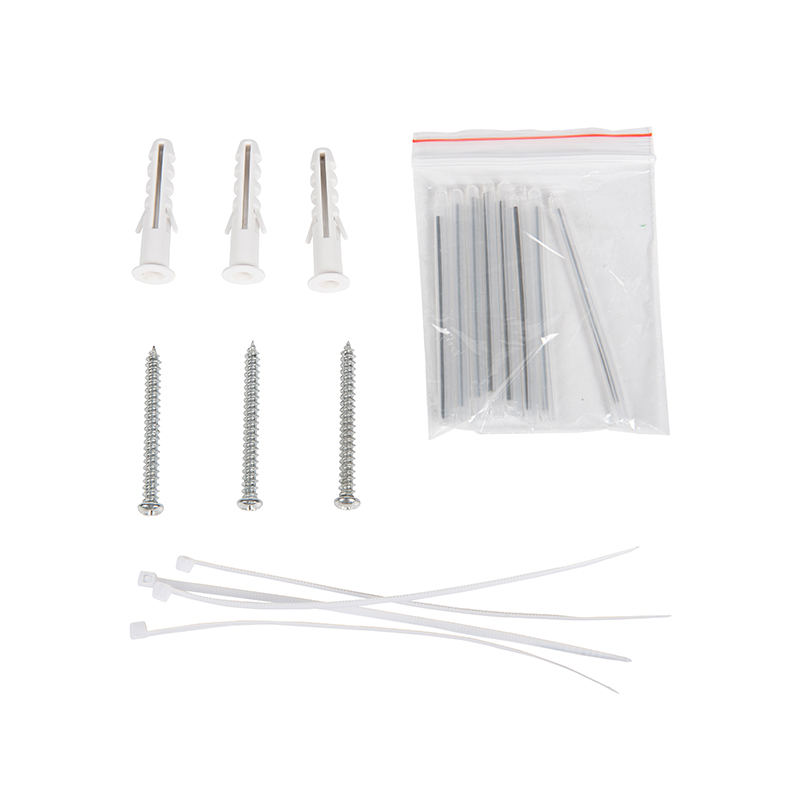

Standard Accessories

Screw: 4mm*40mm  4pcs

Expansion bolt: M6  4pcs

Cable tie:3mm*10mm  6pcs

Heat-shrink sleeve:1.0mm*3mm*60mm  8pcs
