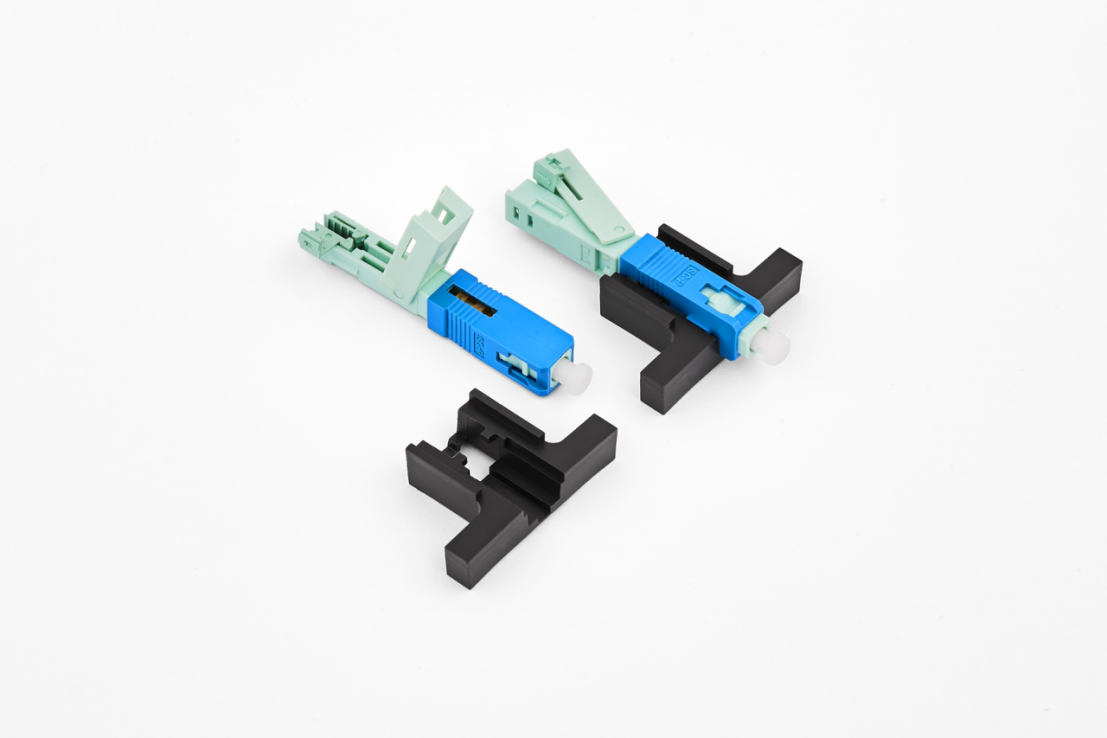

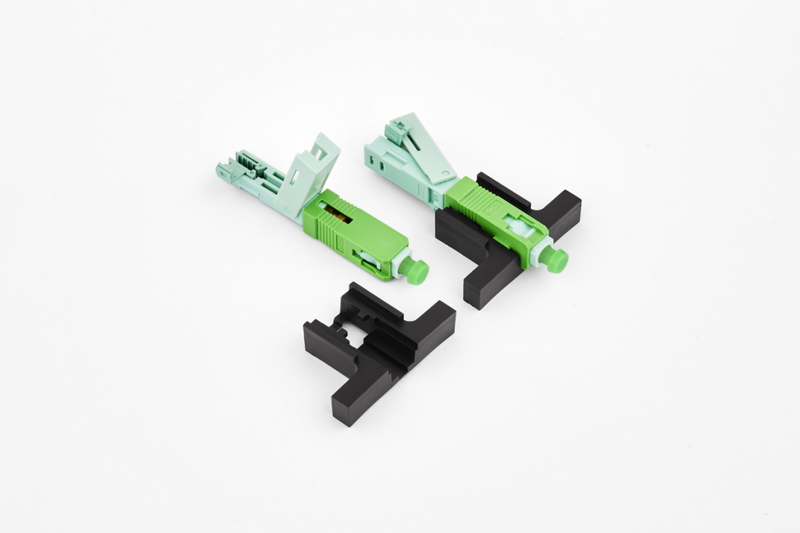

HY-05 Fast Connector

The fiber optic fast connector is a field installable optical connector that used for 2*3.0mm ftth drop cable. the fast connector with cheap price provide cost effective solution for FTTH construction. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Availability:
Quantity:
  • Fast and easy termination of rectangular section FTTH drop cable;

  • No polishing or adhesives required;

  • Terminate cable to exact required length;

  • Can be re-opened up to 5 times;

  • Simple to assemble with our guide rail tool;

  • Applied to 3.0X2.0mm Drop cable;

  • Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.


  • FTTx fiber optic data transmission;

  • Optical access network;

  • Field Repair/Replacement;

  • Maintenance or emergency restoration of fiber networks.


Insertion loss

≤0.30dB   Max 0.5dB

Return loss

UPC≥50dB, APC≥55dB

Tensile

△IL<0.3dB @ 40N

Cable

3.0X2.0mm Drop cable

Operating Wavelength

1310&1550nm

Assembly time

About 60s

Assembly success rate

≥97%

Re-assembly

>5 times

Durability

>500 times

Humidity

95%

Operating Temperature

-40℃~+85℃

Product length

≈53mm
