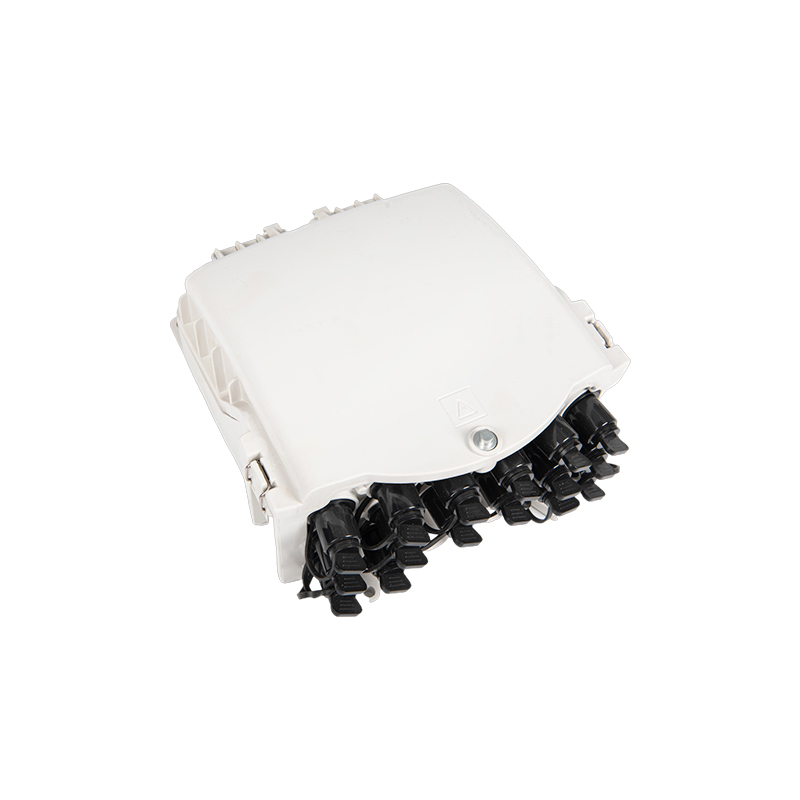

1、Total enclosed structure.
2、Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.
3、Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.

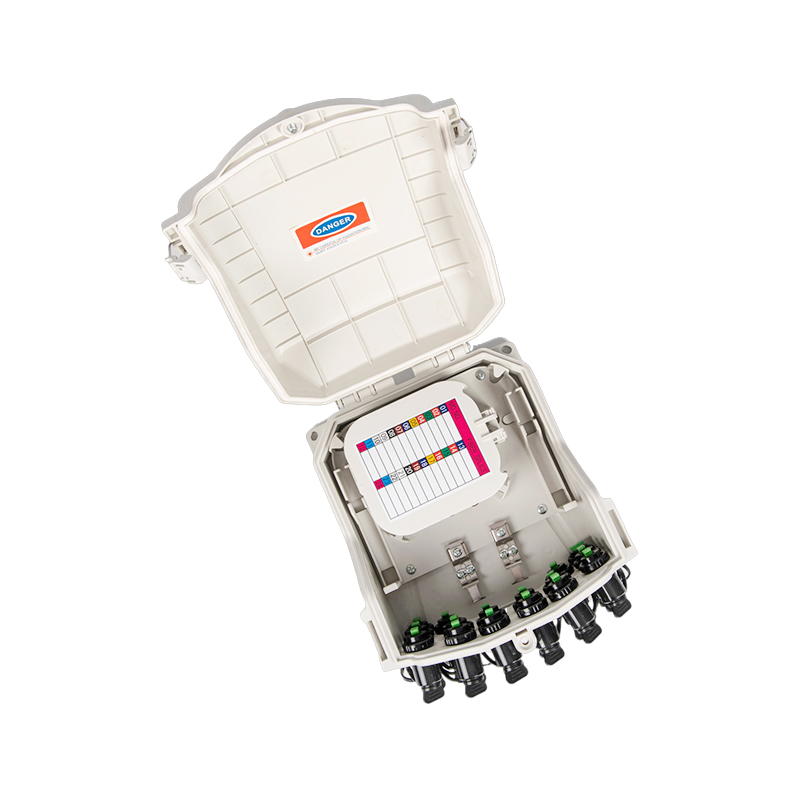

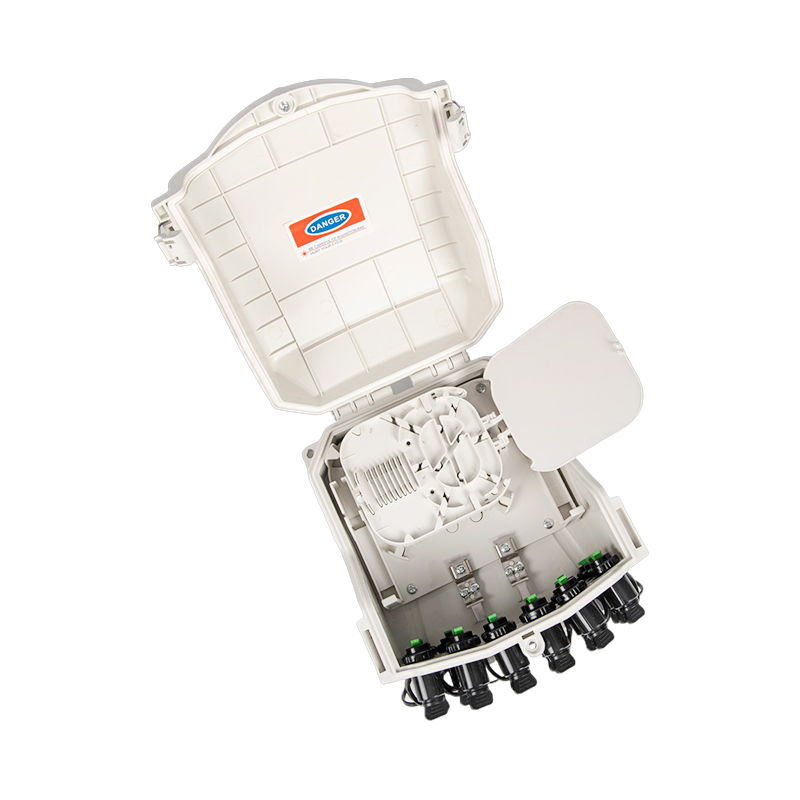

5、Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

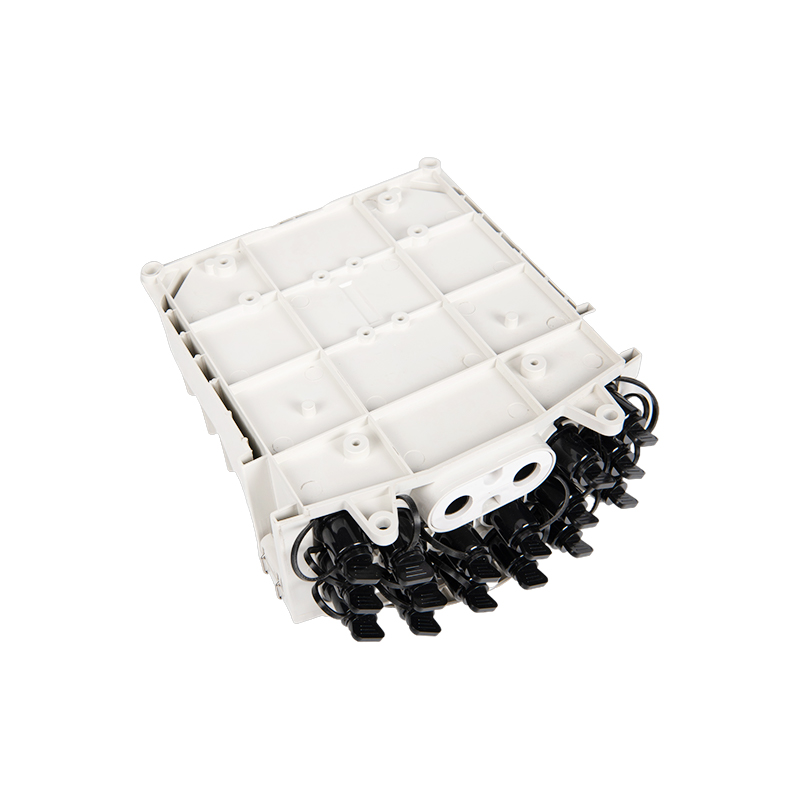

6 、Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
1、Total enclosed structure.
2、Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.
3、Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.
5、Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
configuration

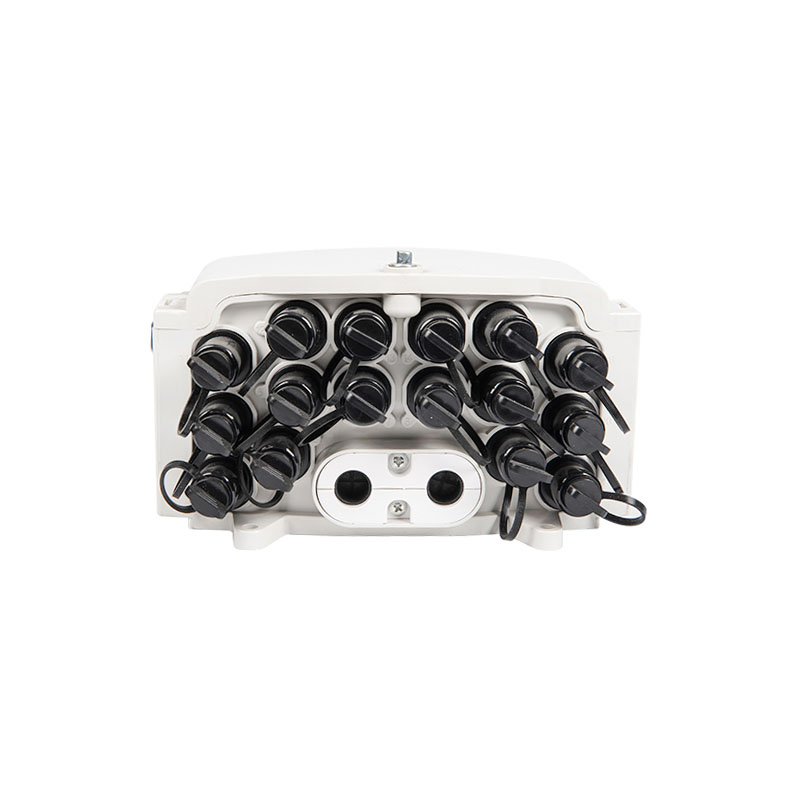

MateriaI | size | Max capacity | Nos of Adaptor | weight | ports | |
Strengthen Polymer Plastic | A*B*C(mm) 285*215*115 | Splice 16 Fibers (1trays,16 fiber/tray) | 16 pcs of SC(max) | 1.05kg | 2 in 16 out |
Packing List
PCS/CARTON | Gross Weight(Kg) | Net Weight(Kg) | Carton Size(cm) | Cbm(m³) |
10 | 10.5 | 9.5 | 47.5*29*65 | 0.091 |

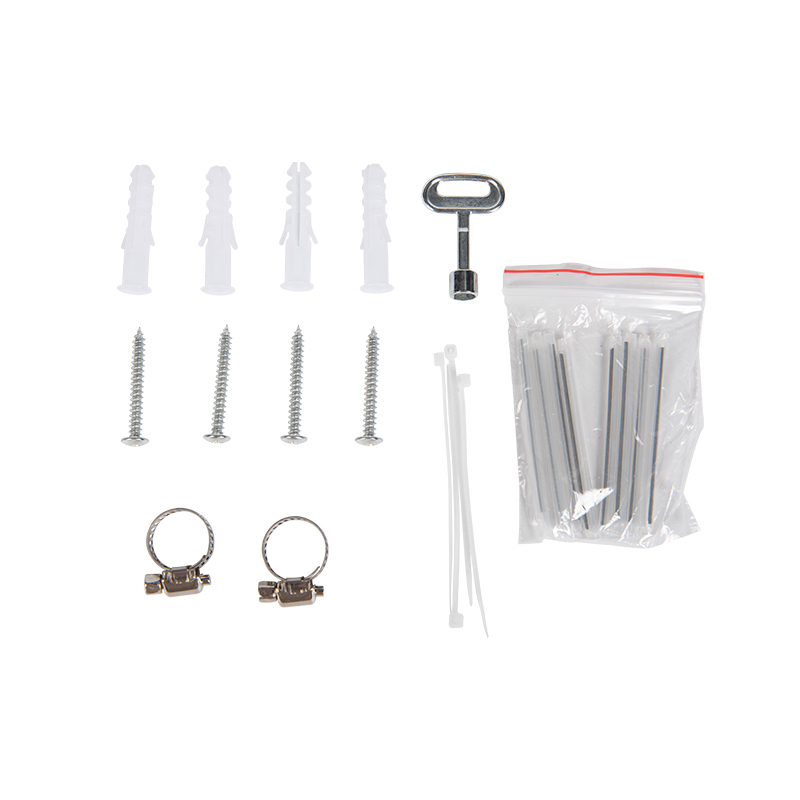

Standard Accessories
Screw: 4mm*40mm 4pcs
Expansion bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs Key:1pcs
hoop ring:2pcs
configuration
MateriaI | size | Max capacity | Nos of Adaptor | weight | ports | |
Strengthen Polymer Plastic | A*B*C(mm) 285*215*115 | Splice 16 Fibers (1trays,16 fiber/tray) | 16 pcs of SC(max) | 1.05kg | 2 in 16 out |
Packing List
PCS/CARTON | Gross Weight(Kg) | Net Weight(Kg) | Carton Size(cm) | Cbm(m³) |
10 | 10.5 | 9.5 | 47.5*29*65 | 0.091 |
Standard Accessories
Screw: 4mm*40mm 4pcs
Expansion bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs Key:1pcs
hoop ring:2pcs
