1、Total enclosed structure.
2、Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.
3、Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.

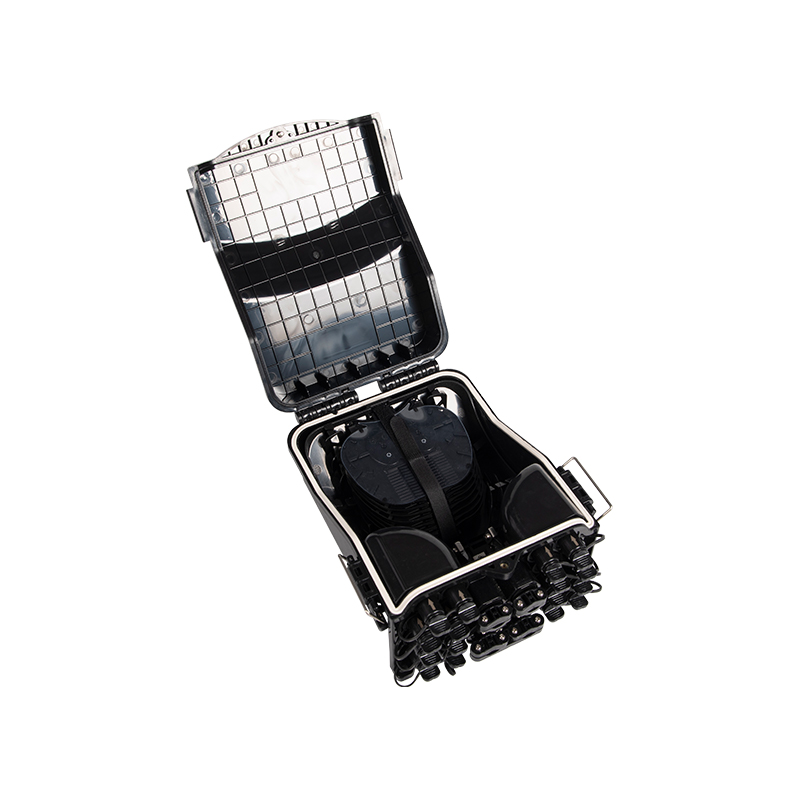

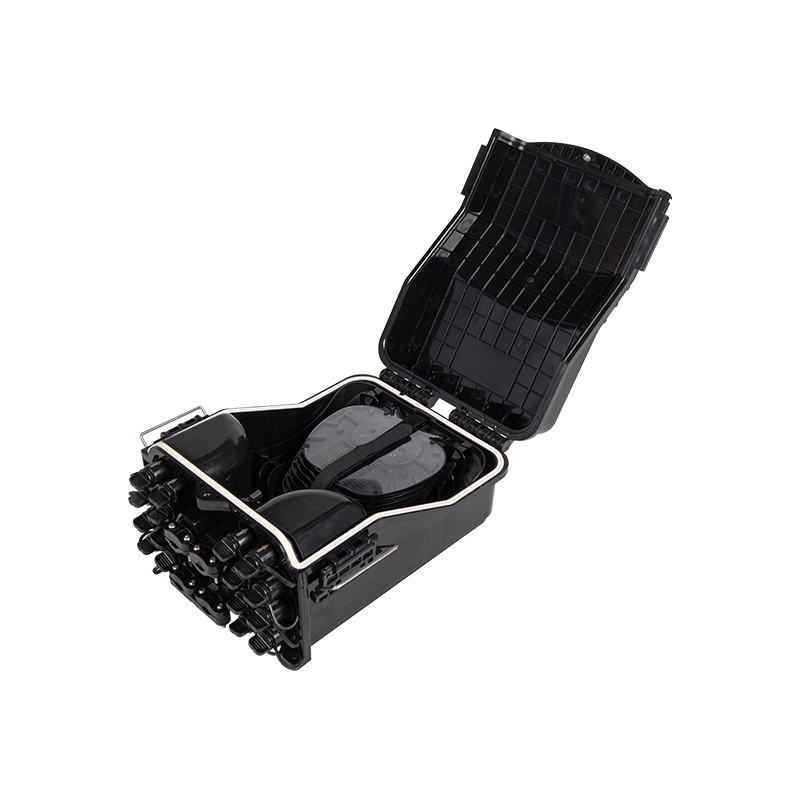

5、Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
1、Total enclosed structure.
2、Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.
3、Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.
5、Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
Configuration
Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
Strengthen ABS | A*B*C(mm) 319*215*133 | 16 ports | / |
16 pcs Huawei Adapter | 1.6kg | 4 in 16 out |
Packing List
PCS/CARTON | Gross Weight(Kg) | Net Weight(Kg) | Carton Size(cm) | Cbm(m³) |
6 | 10 | 9 | 52.5*35*53 | 0.098 |

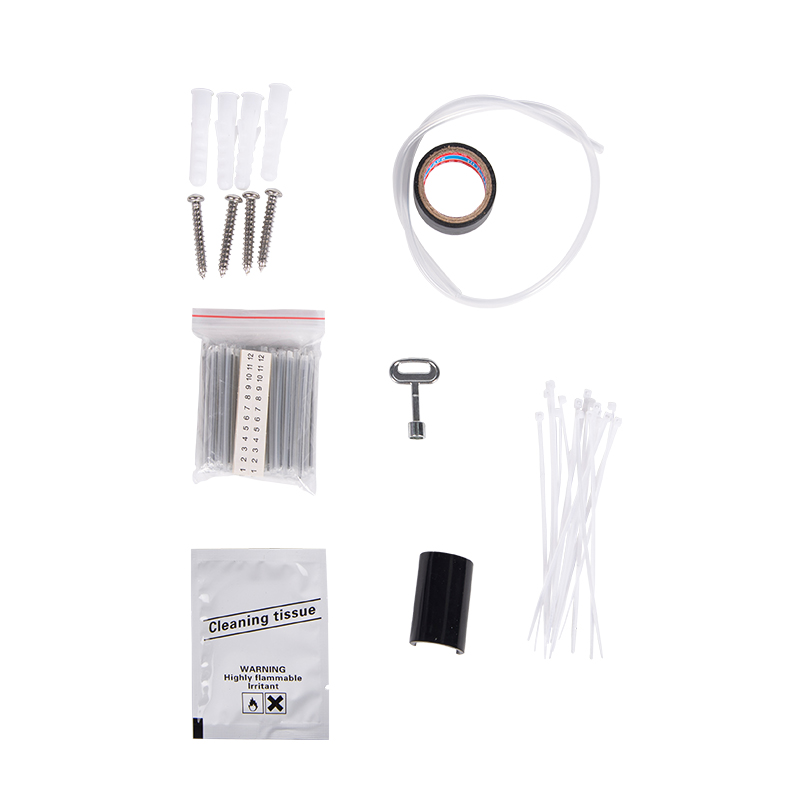

Standard Accessories
o Screw: 4mm*40mm 4pcs
Expension bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
Metal ring:2pcs
Key:1pcs
Configuration
Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
Strengthen ABS | A*B*C(mm) 319*215*133 | 16 ports | / |
16 pcs Huawei Adapter | 1.6kg | 4 in 16 out |
Packing List
PCS/CARTON | Gross Weight(Kg) | Net Weight(Kg) | Carton Size(cm) | Cbm(m³) |
6 | 10 | 9 | 52.5*35*53 | 0.098 |
Standard Accessories
o Screw: 4mm*40mm 4pcs
Expension bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
Metal ring:2pcs
Key:1pcs
