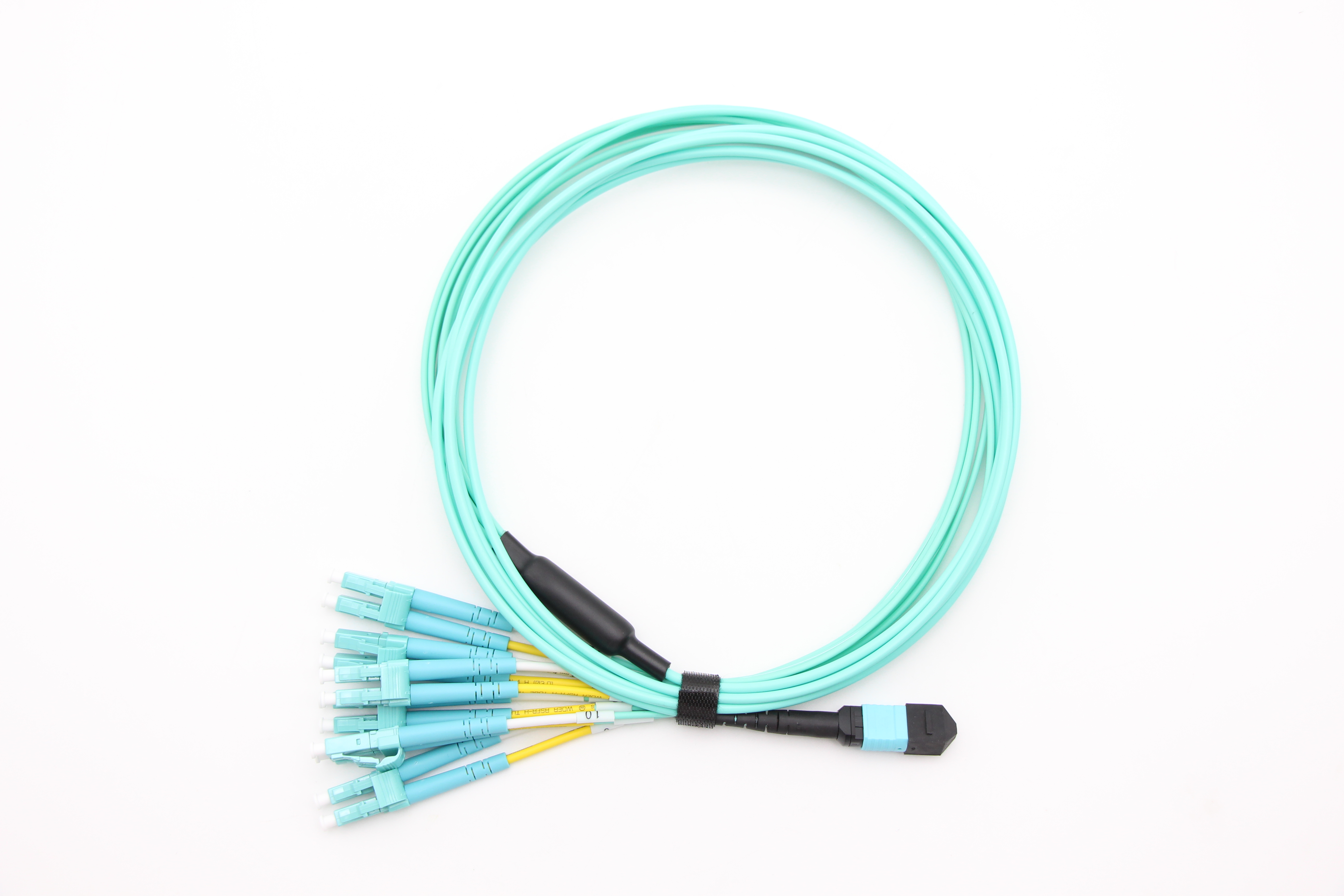

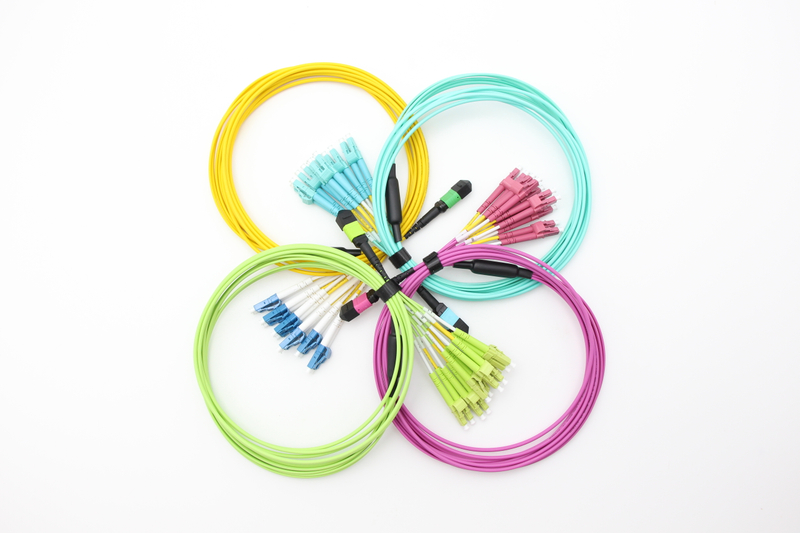

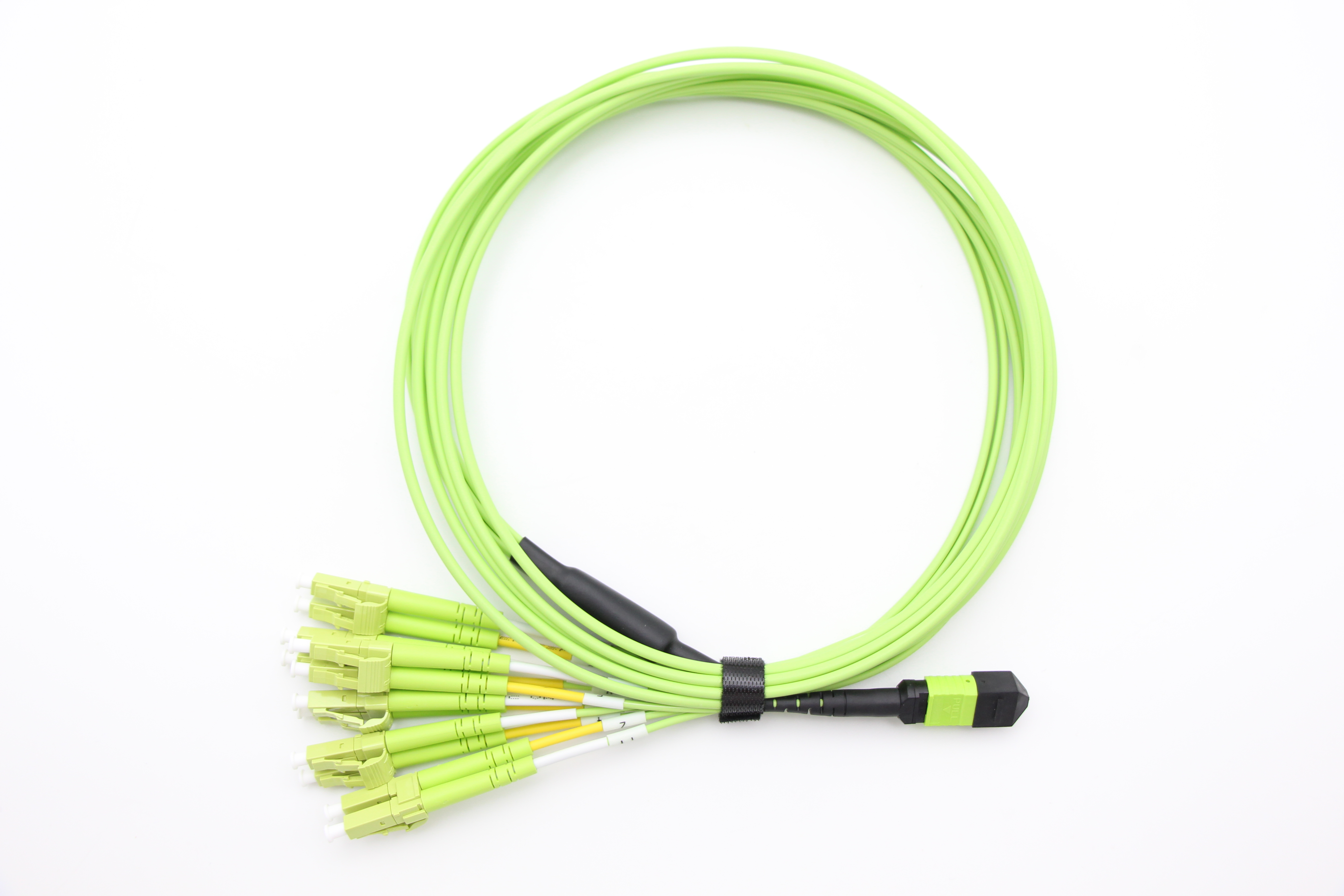

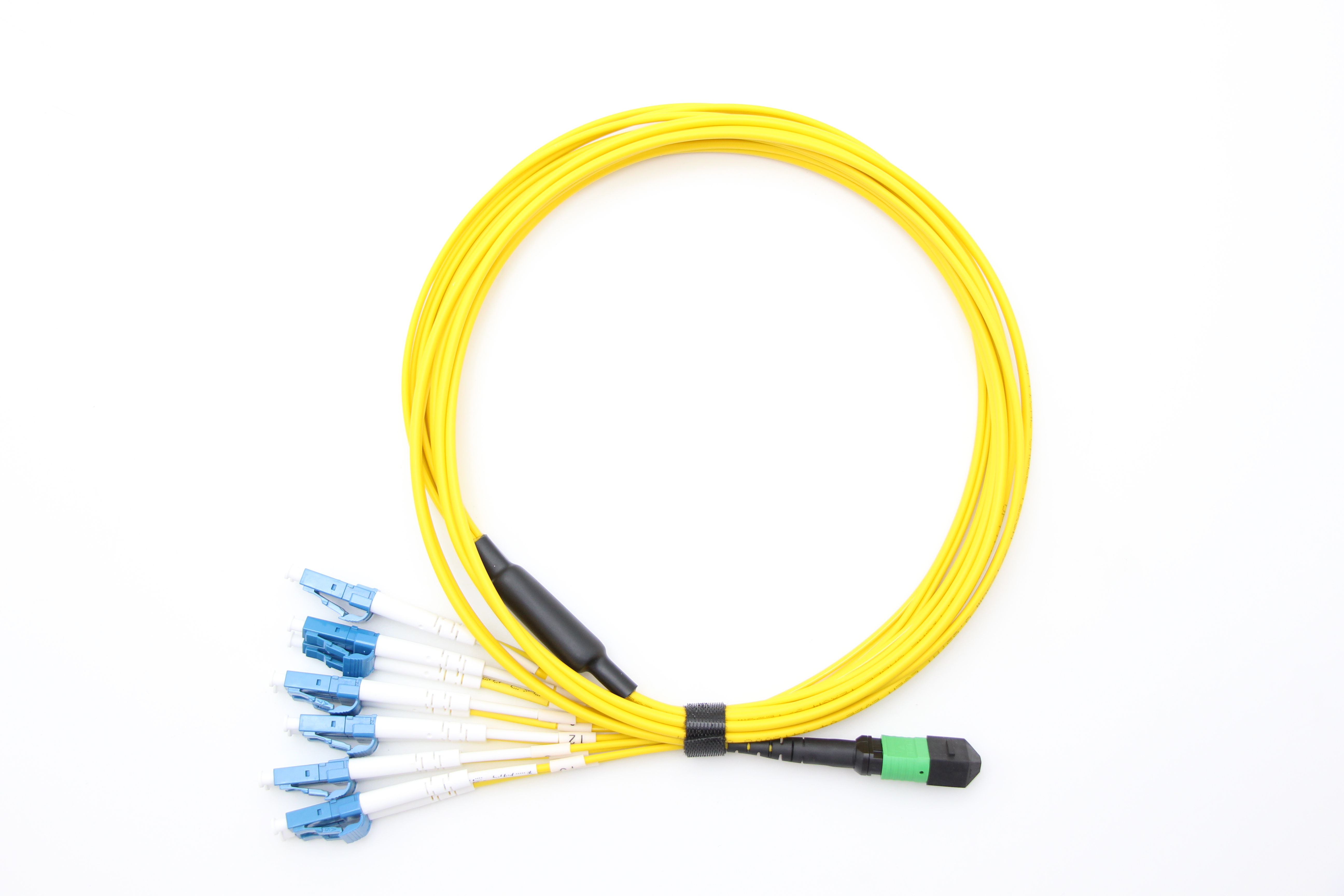

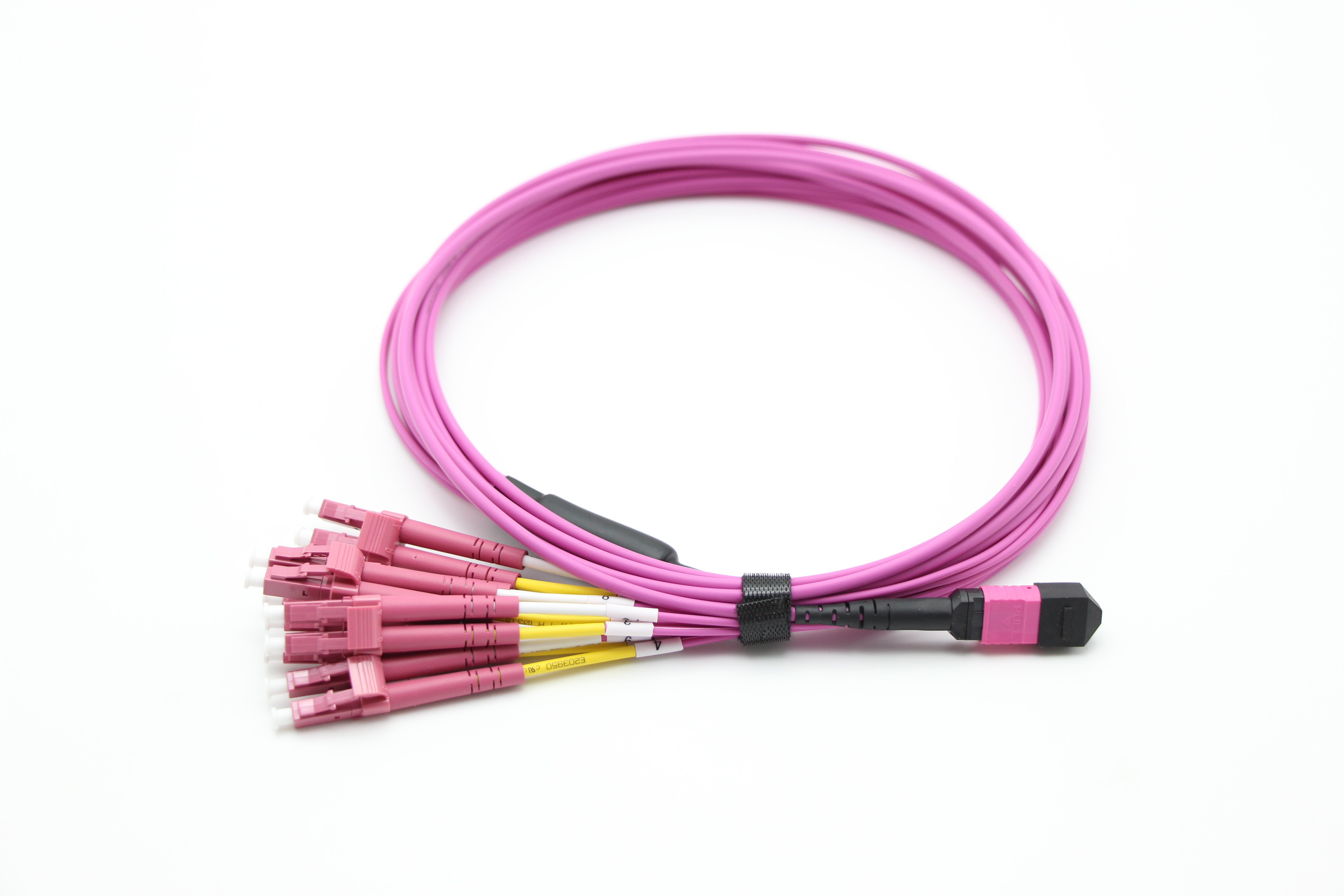

12F MPO/MTP-6*DX LC Fanout Cable

The MPO/MTP patch cord is a multi-fiber jumpers which is used in high density fiber networks. It's specifically designed for fast ether net, data center, fiber channel and gigabit ether net applications.
MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Availability:
Quantity:
Inquire Add to Basket

  • With 12-fiber and 24-fiber MPO/MTP connector standard；

  • Available in SM, OM1,OM2, OM3 and OM4；

  • Available in FC,LC, SC, ST, MU, and MTP；

  • Interface polished type has PC, UPC and APC；

  • Support use in attaching directly to 40/100G transceivers；

  • Polarity options are Type A, B, or C (Method A& B are standard)；

  • They are designed for high density applications requiring high performance and speedy installation.；

  • Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors.


  • Data communication network;

  • Optical System Access network;

  • Storage area networking fiber channel;

  • High density architectures.


Connector A

MPO/MTP Female

Connector B

FC,LC, SC, ST, MU option

Fiber Mode

G652D, G.657A1, OM3, OM4 ,OM5 option

Wavelength

850/1310 nm

Connector MPO IL

≤ 0.35 dB

Connector B IL

≤ 0.30 dB

Connector MPO RL

≥ 30 dB

Connector B RL

≥ 30 dB

Cable Jacket

LSZH or PVC

Fiber Count

8,12,24 fiber

Cable Type

Round cable&Ribbon cable

Jacket OD

3.0mm&2.0mm*5.0mm

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 85°C


Previous:
Next:
Fiber Optic Cable Optical Patchcord Optical Distribution Box Date Center Solution Passive Components

Related Products

MPOMTP Patch Panel
MPO/MTP Patch Panel

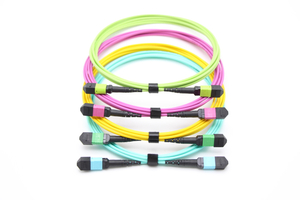

MPO/MTP Fiber Optic Parch Cord
