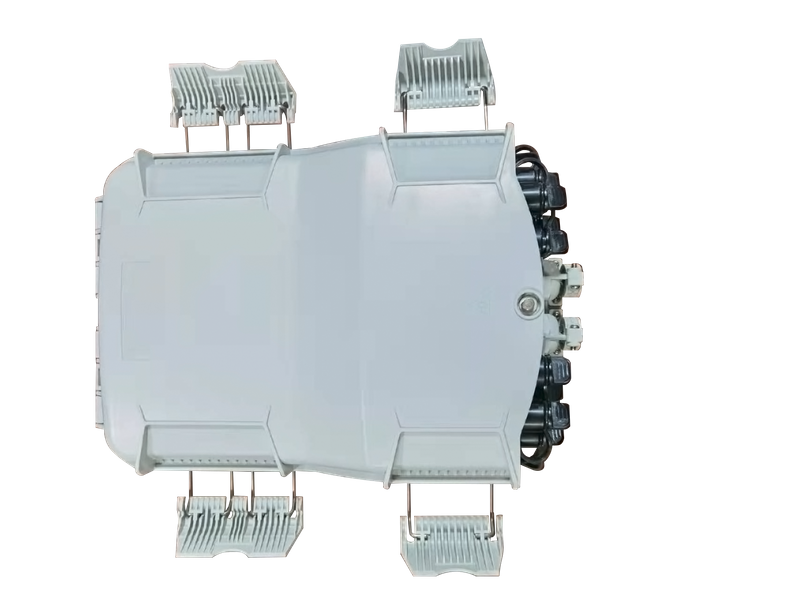

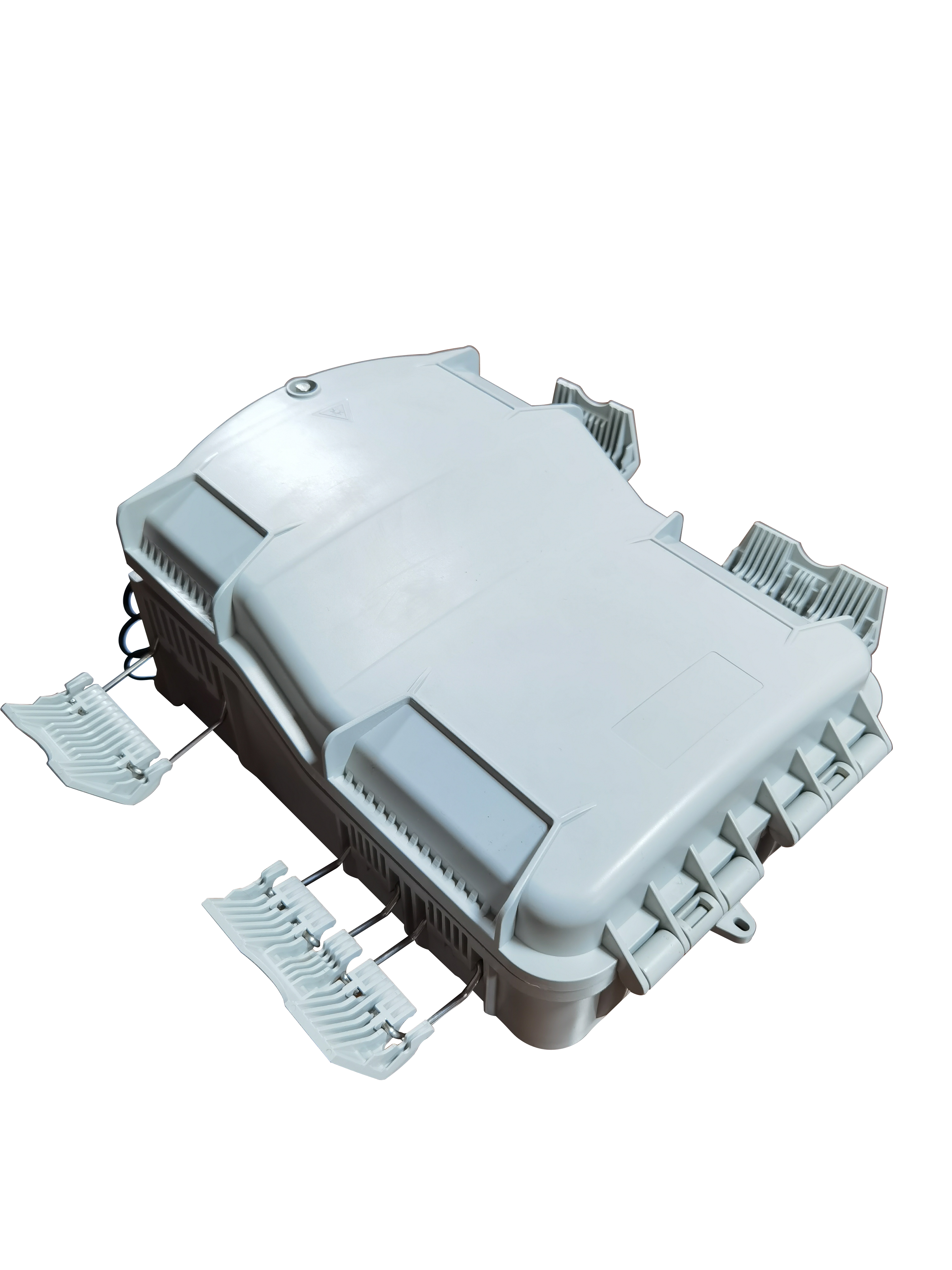

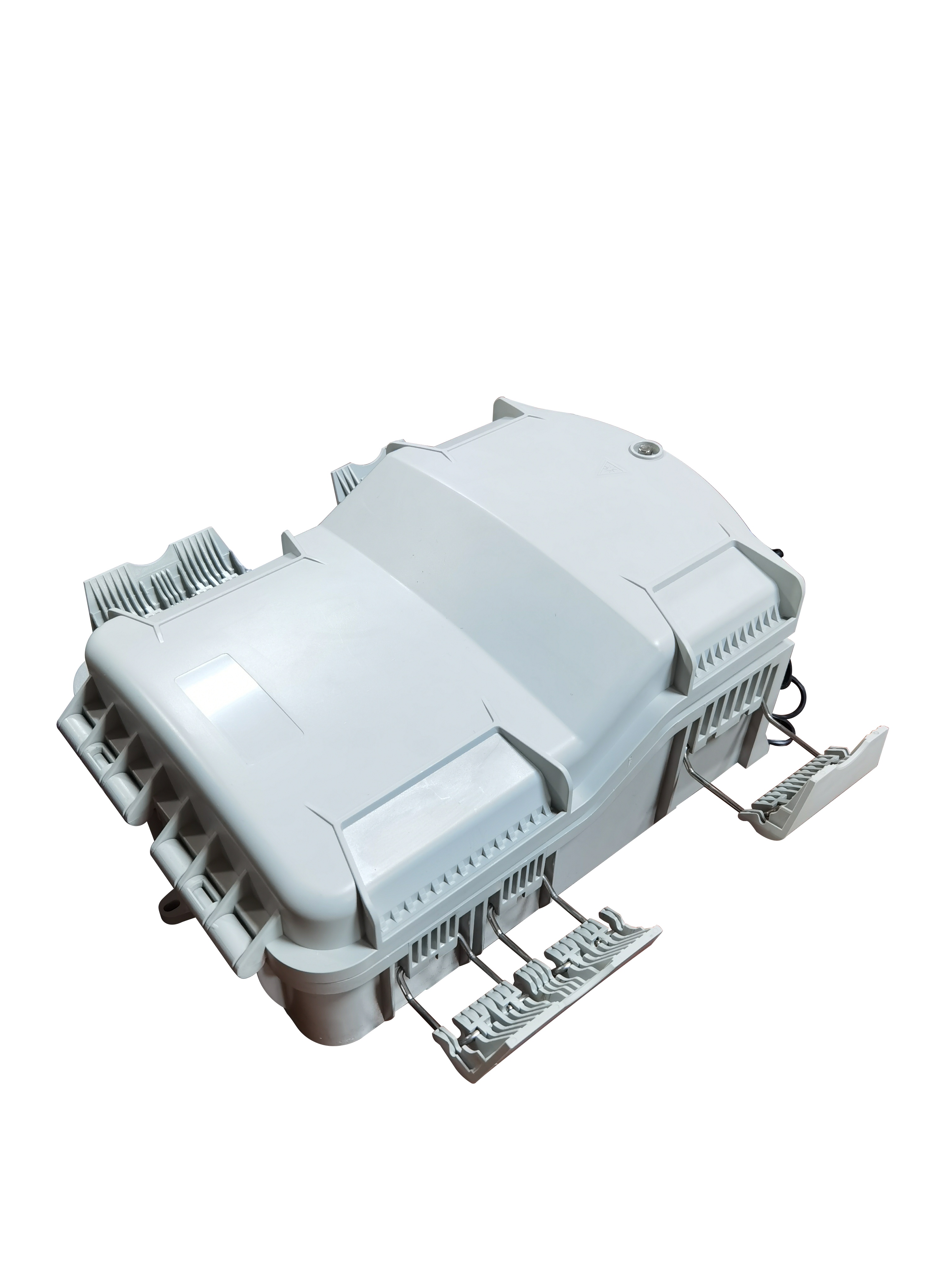

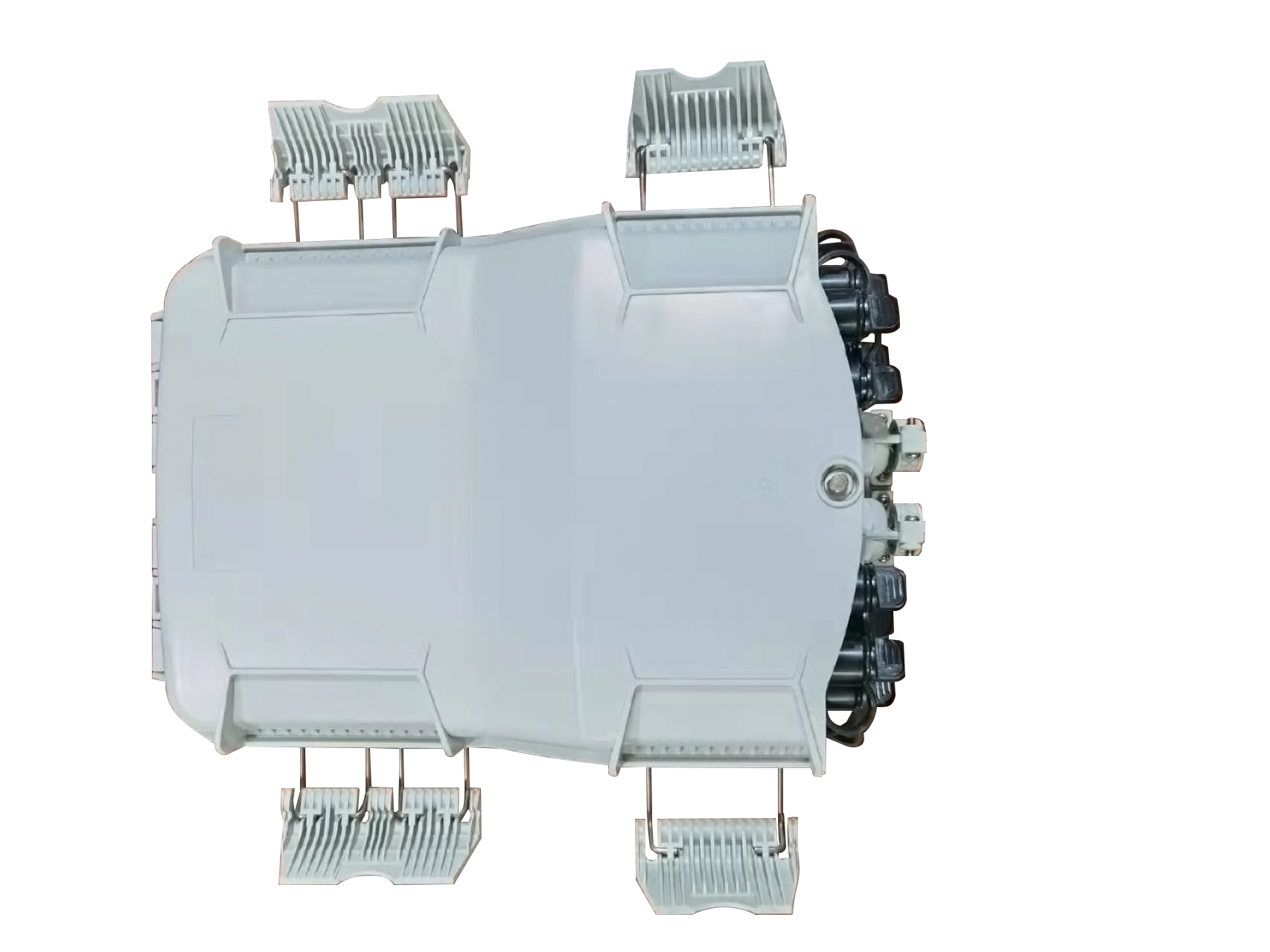

Fiber Optic Distribution Box (FDB-HY109-16core)

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Availability:
Quantity:
  1. Total enclosed structure;

  2. The body is made of high quality engineering plastic with good strength;

  3. With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments ;

  4. With water-proof adapter, the box can be operated more conveniently ;

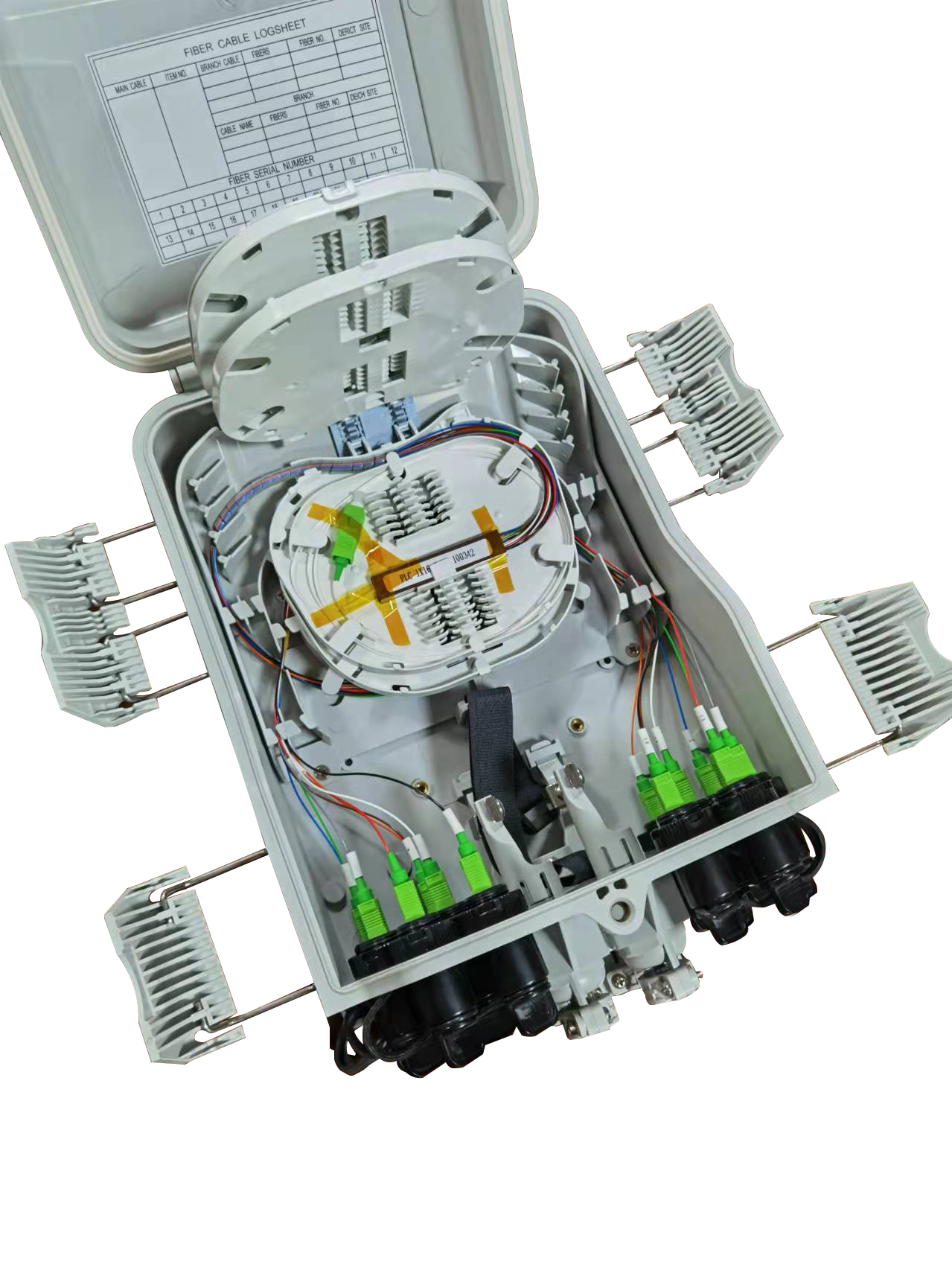

  5. With double-page design, the box can be installed and maintained easily,the fusion and termination are completely separated ;

  6. The drop leaf can be installed 2x1:8 & 1x1:16 splitter.


Configuration

Model No.

FDB-HY109-16core

Color

Black, Grey White..

Capacity

16cores

Protection Level

IP55

Material

PC+ABS, ABS

Flame retardant performance

Non-flame retardant

Dimension(L*W*D,MM)

320*210*125

Splitter

Can be with 2x1:8 & 1x1:16  splitter

Package Information

  • Plastic bag size: 500*410mm

  • Inner box with single corrugated size:330*220*135mm

  • Carton with double corrugated size:695*350*460mm(10PCS/Box)
