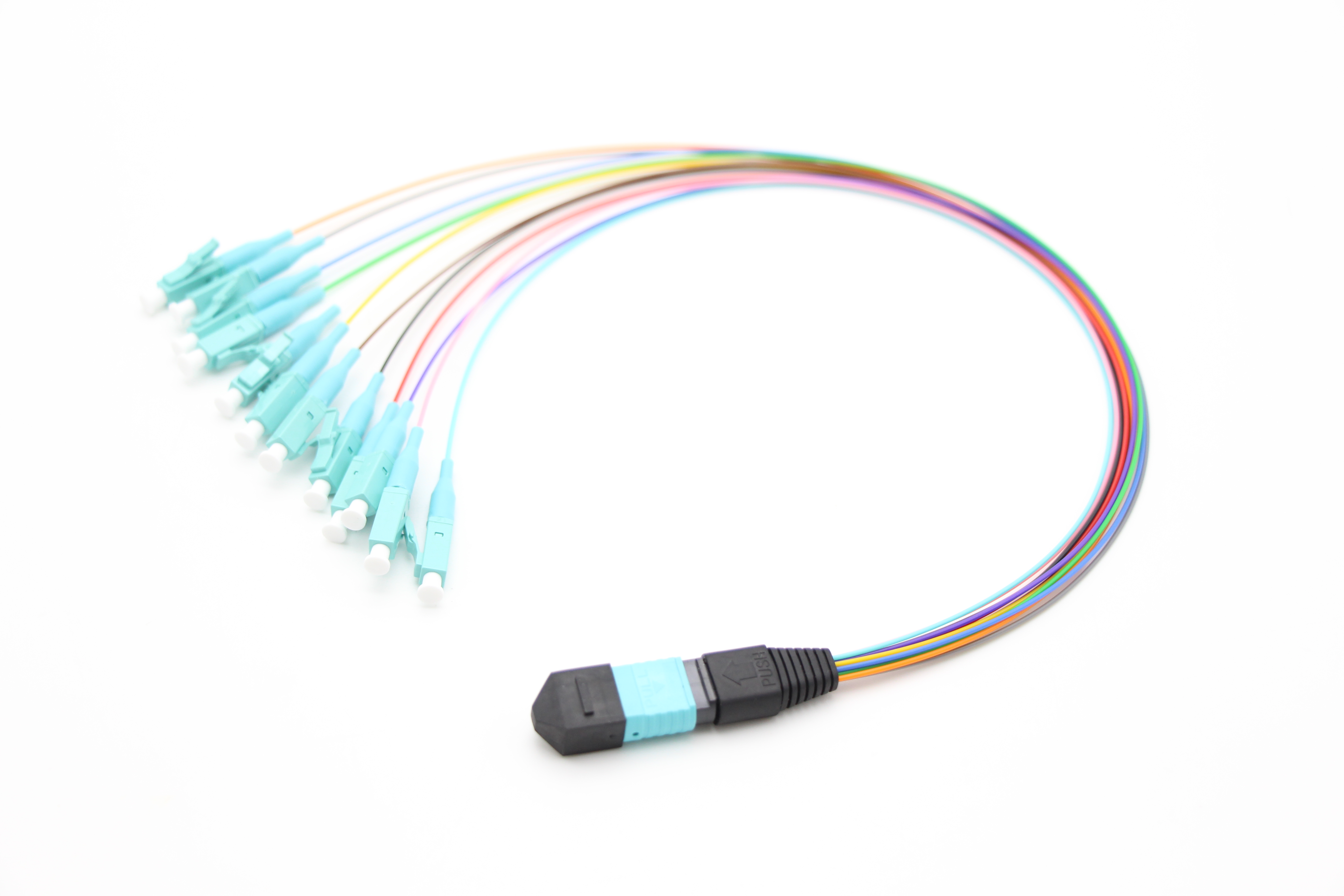

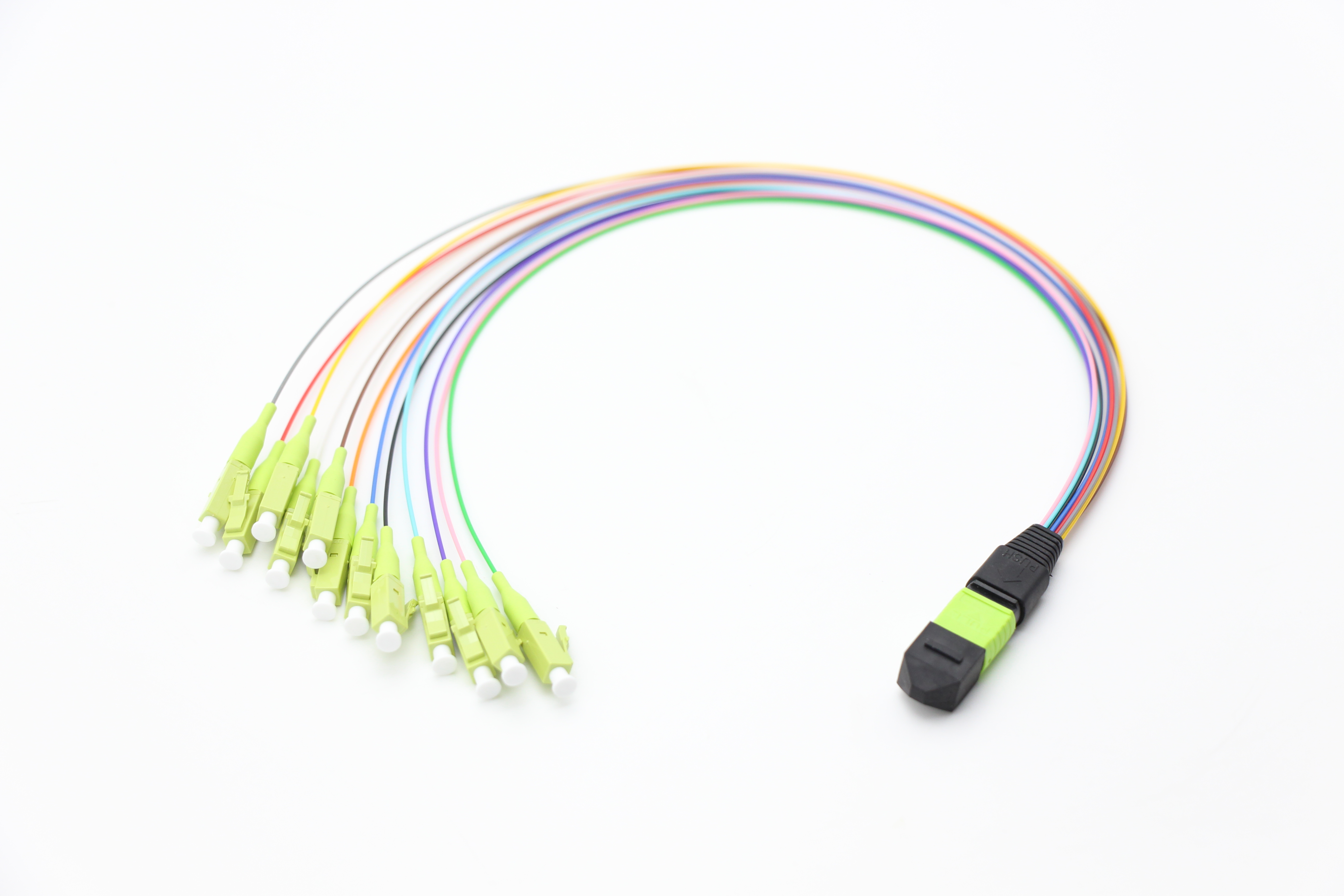

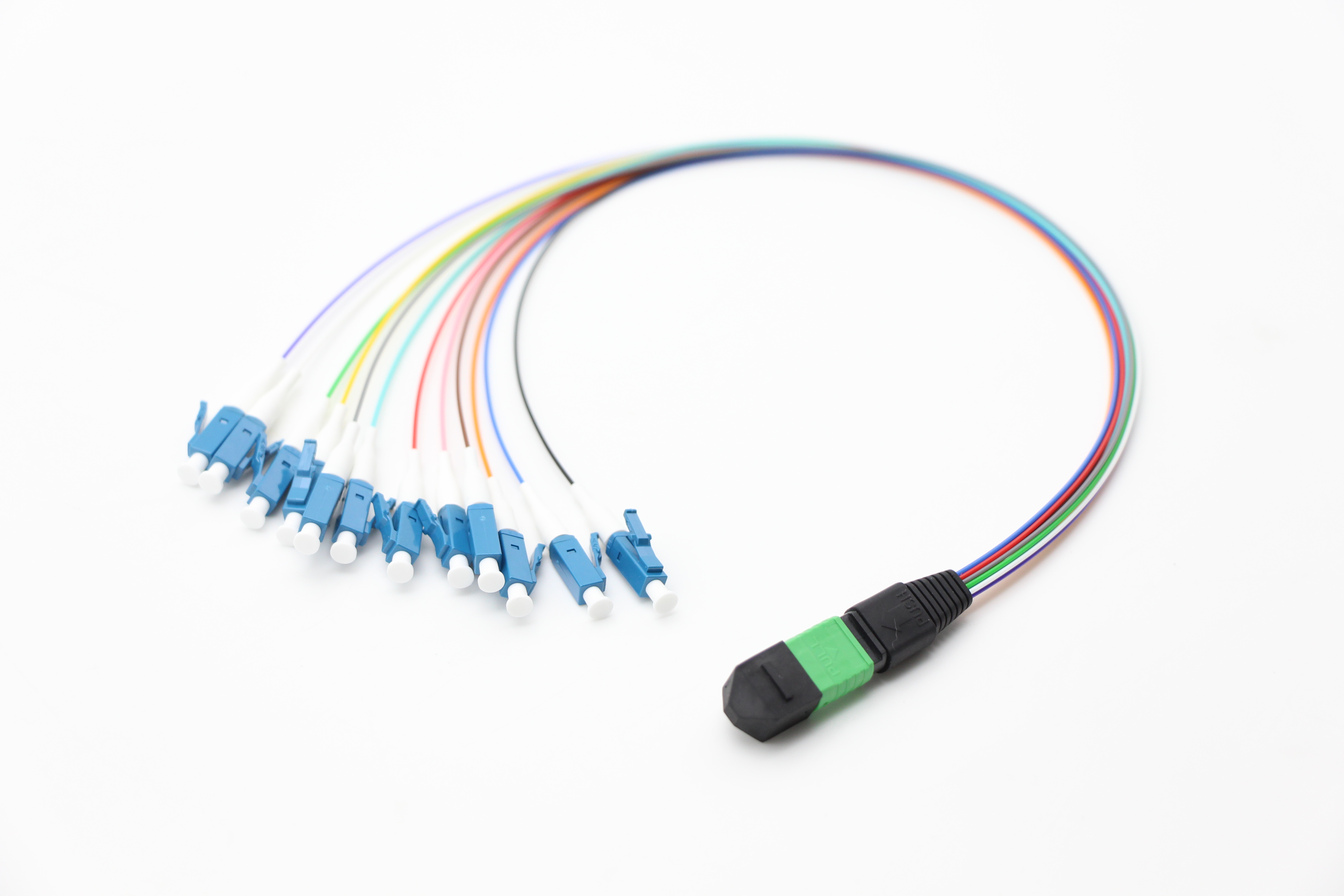

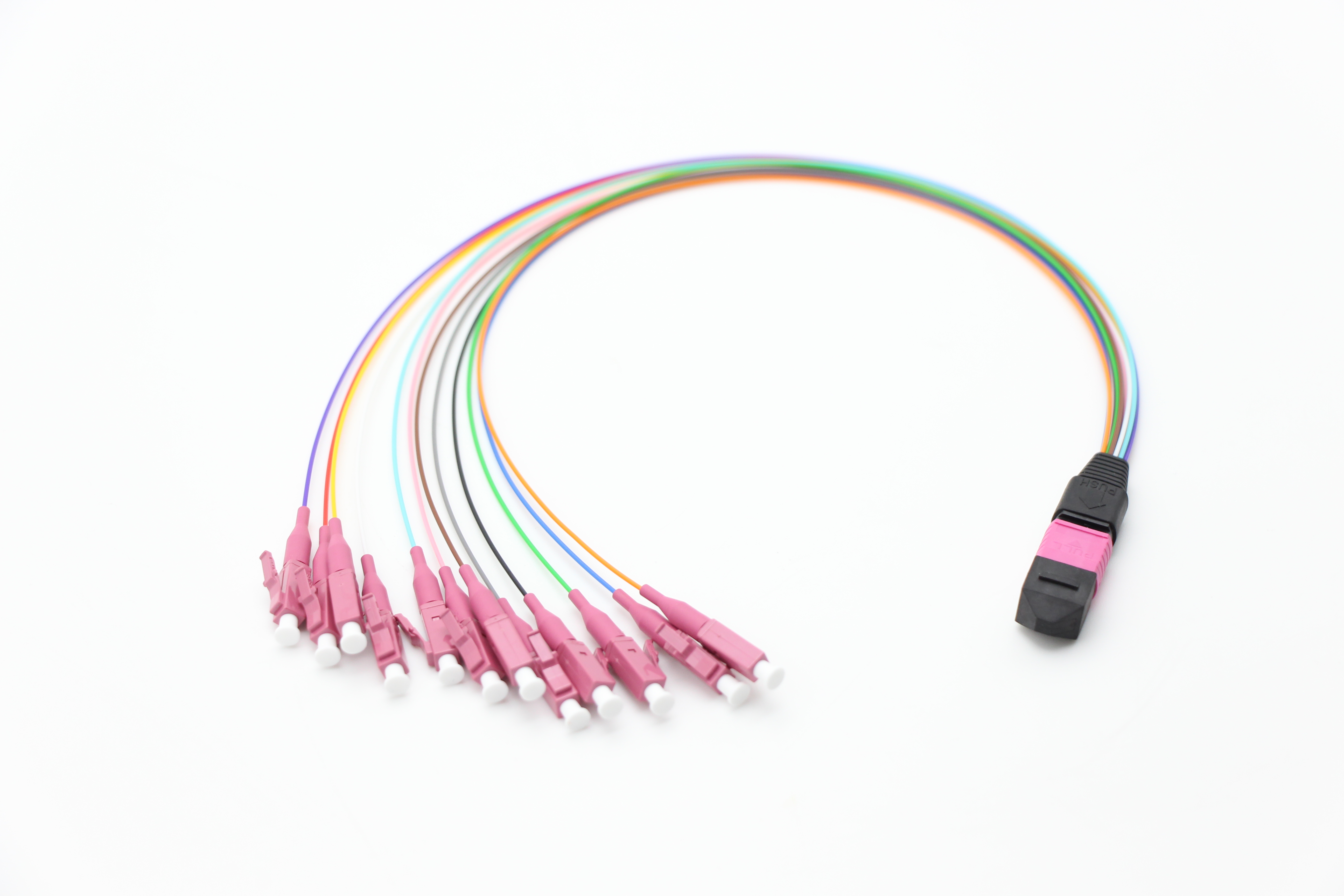

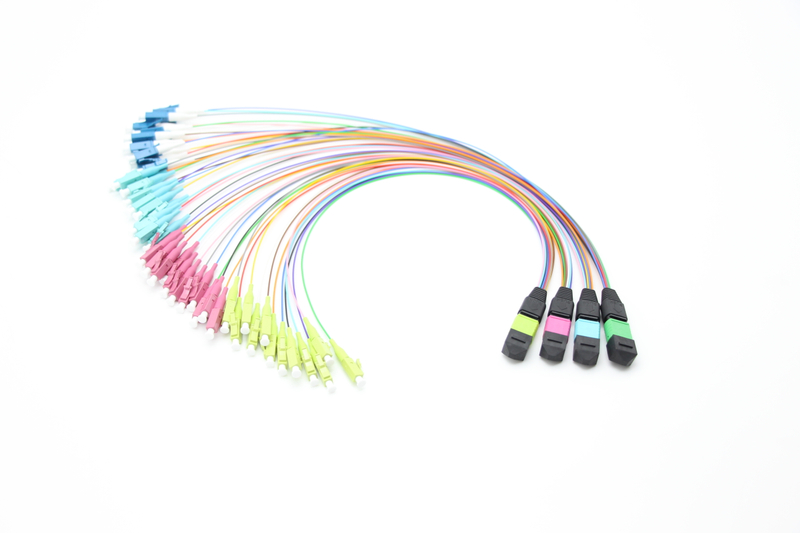

MPO/MTP to 0.9mm LC fanout patch cord

MPO/MTP fan-out patch cord, is a fiber optic cable terminated with MPO/MTP connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors(generally MTP to LC) on the other end. The main cable is usually 3.0mm LSZH Round cable, breakout 2.0mm cable. Female and Male MPO/MTP Connector is available and Male type connector has pins. MPO/MTP fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) Standard. For the jacket cable we can do 3.0mm round cable also can be flat jacketed ribbon cable or bare ribbon MTP cables. We can offer Single mode and Multimode MTP fiber optical patch cables, custom design MTP fiber optic cable assemblies, SM, MM, Simplex, Duplex. 12core MTP/MPO patch cables, 24core MTP/MPO patch cables, 48core MTP/MPO patch cables all is available. Therefore, they can meet a variety of fiber cabling requirements.
Availability:
Quantity:
  • With 12-fiber and 24-fiber MPO/MTP connector standard;

  • Available in SM, OM1,OM2, OM3 and OM4;

  • Available in FC,LC, SC, ST, MU, and MTP;

  • Interface polished type has PC, UPC and APC;

  • Support use in attaching directly to 40/100G transceivers;

  • Polarity options are Type A, B, or C (Method A& B are standard);

  • They are designed for high density applications requiring high performance and speedy installation.;

  • Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors.


  • Data communication network;

  • Optical System Access network;

  • Storage area networking fiber channel;

  • High density architectures.


Connector A

MPO/MTP Female

Connector B

FC,LC, SC, ST, MU option

Fiber Mode

G652D, G.657A1, OM3, OM4 ,OM5 option

Wavelength

850/1310 nm

Connector MPO IL

≤ 0.35 dB

Connector B IL

≤ 0.30 dB

Connector MPO RL

≥ 30 dB

Connector B RL

≥ 30 dB

Cable Jacket

LSZH or PVC

Fiber Count

8,12,24 fiber

Cable Type

Round cable&Ribbon cable

Jacket OD

3.0mm&2.0mm*5.0mm

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 85°C
