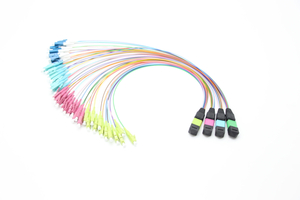

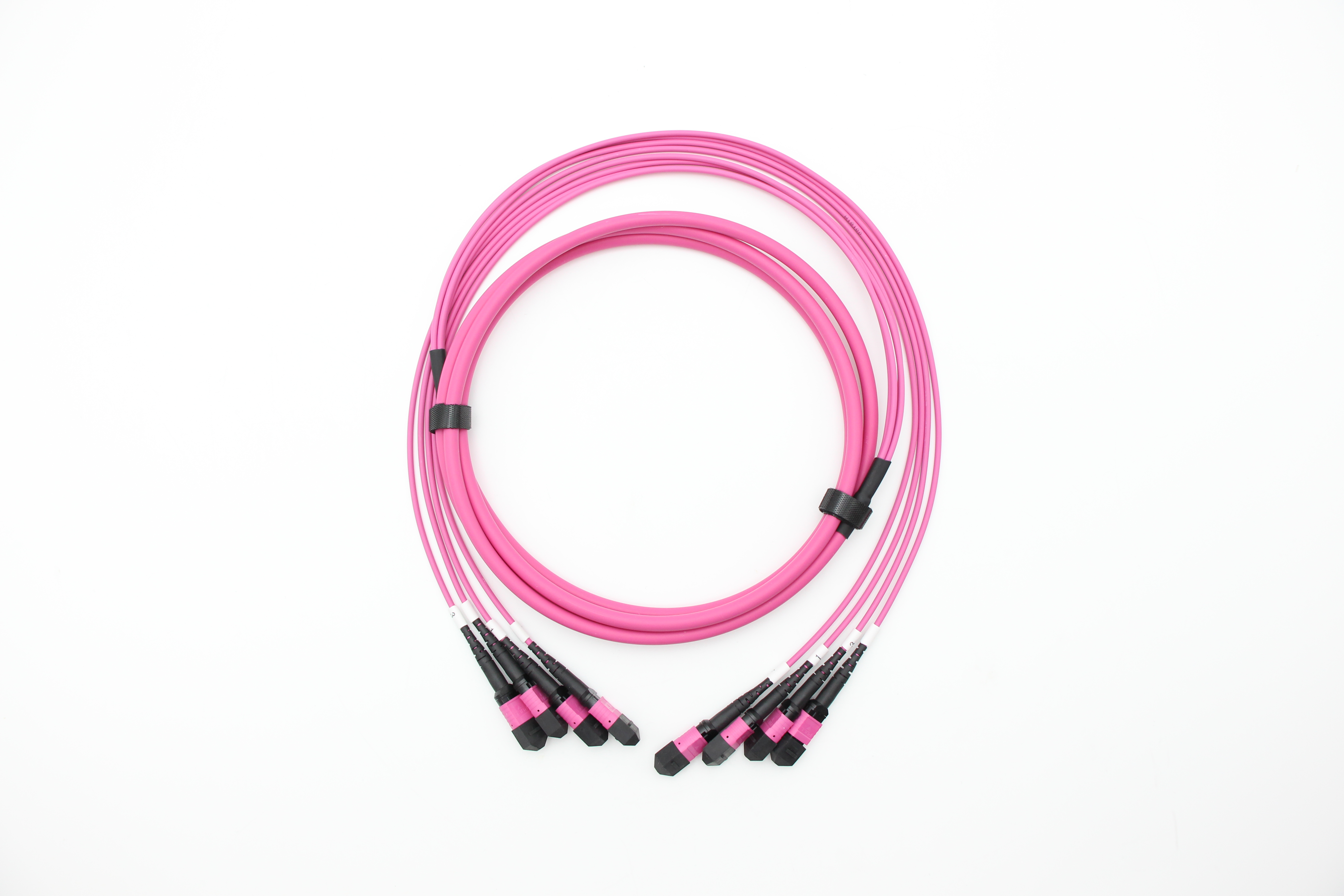

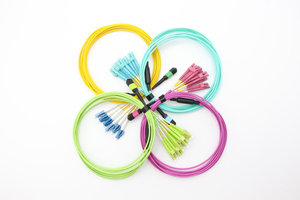

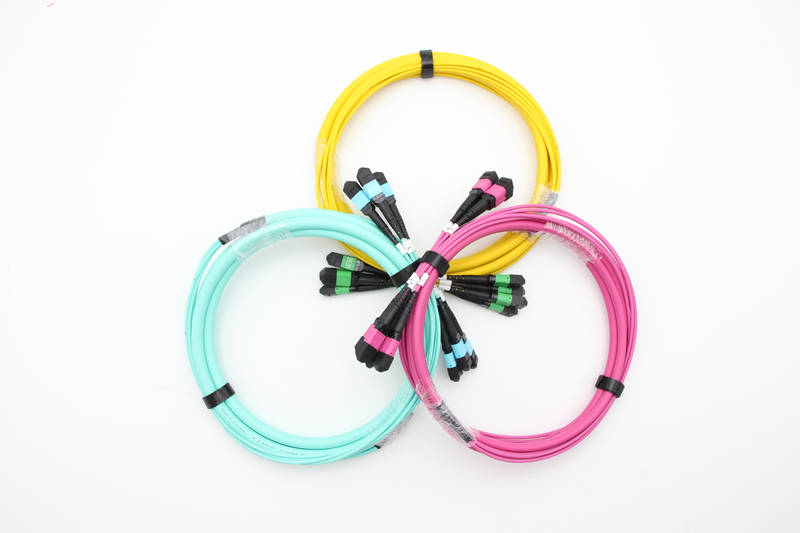

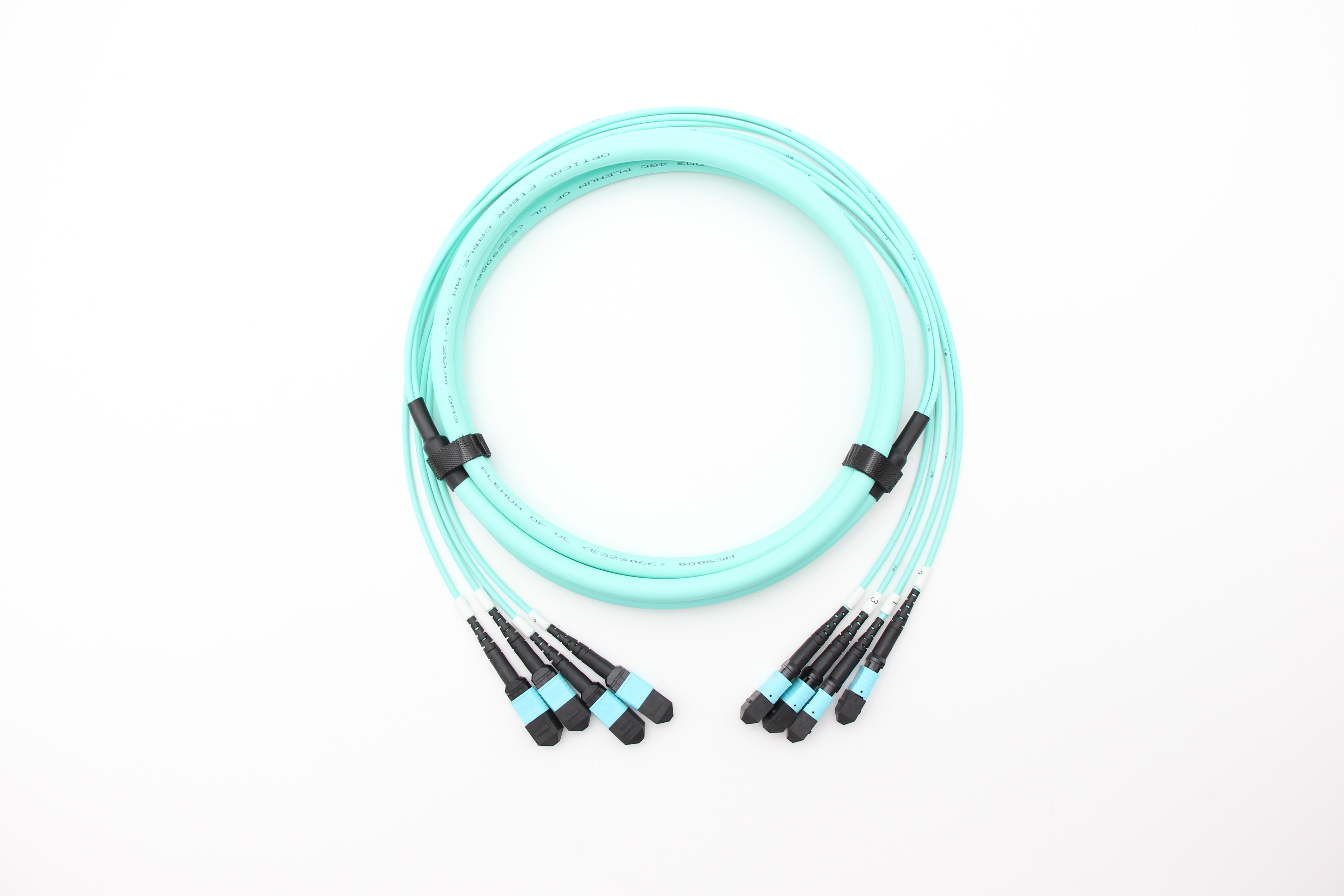

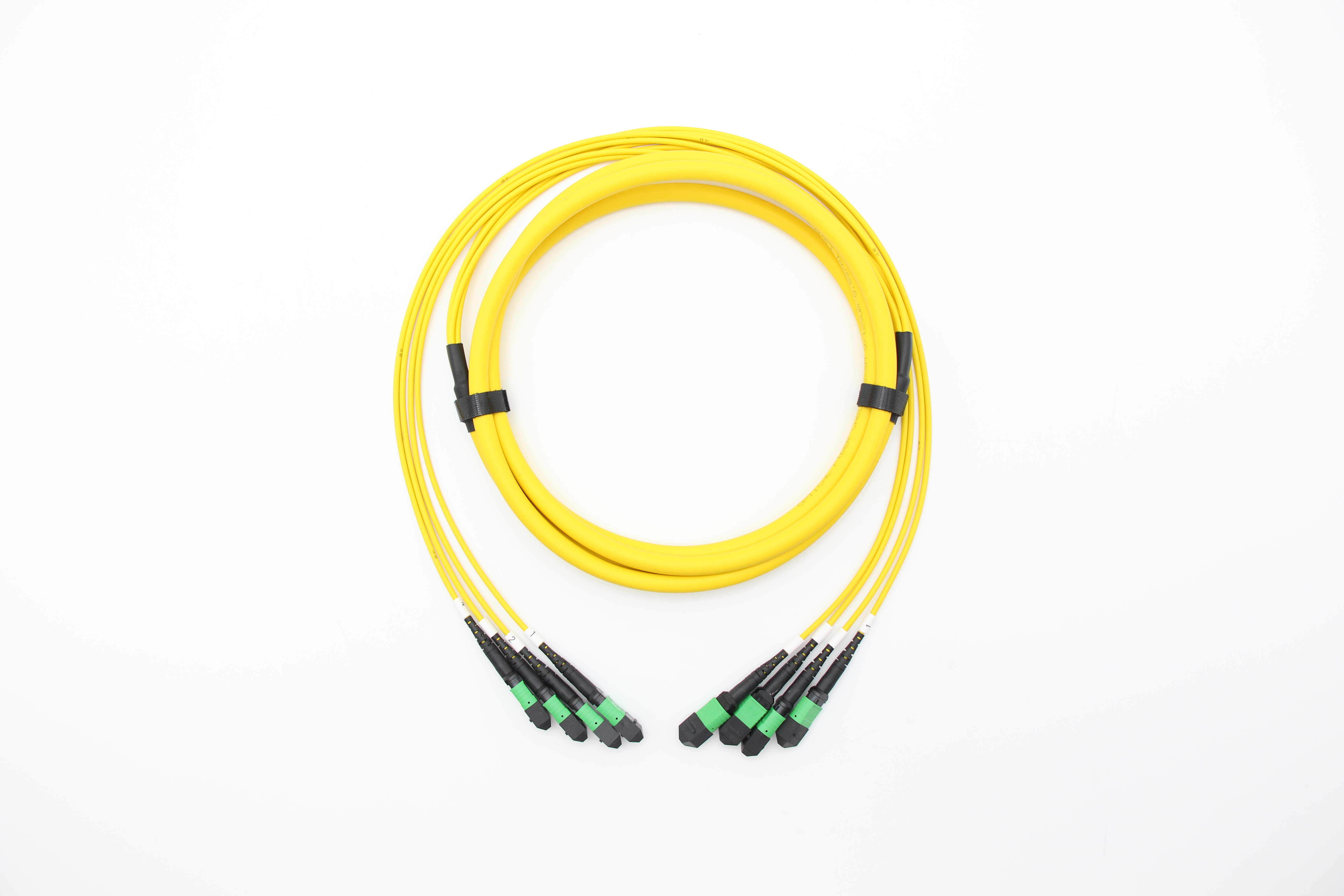

MPO/MTP trunk Cable

 MPO/MTP  trunk  cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cable way use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion for demanding high speed networks where power budgets are critical.
Availability:
Quantity:
  • MPO/MTP Interface - MPO/MTP components feature superior optical and mechanical properties;

  • 100% pre-terminated and tested in factory to ensure transfer performance;

  • Rapid configuration and networking, reduce installation time;

  • Supports 40G and 100G network applications;

  • Jacket material: LSZH, OFNR, OFNP available;

  • Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.


  • Data communication network;

  • Optical System Access network;

  • Storage area networking fiber channel;

  • High density architectures.


Connector A

MPO/MTP Female

Connector B

MPO/MTP Female

Fiber Mode

G652D, G.657A, OM3, OM4 ,OM5

Wavelength

850/1310 nm

Typical Insertion Loss(Elite)

≤ 0.35 dB

Typical Insertion Loss

≤ 0.70 dB

Max Insertion Loss(Elite)

≤ 0.75 dB

Durability(500 Mating Times)

△IL≤ 0.75 dB

Cable Jacket

LSZH or PVC

Fiber Count

8,12,24 fiber

Cable Type

Round cable&Ribbon cable

Jacket OD

3.0mm&2.0mm*5.0mm

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 85°C
